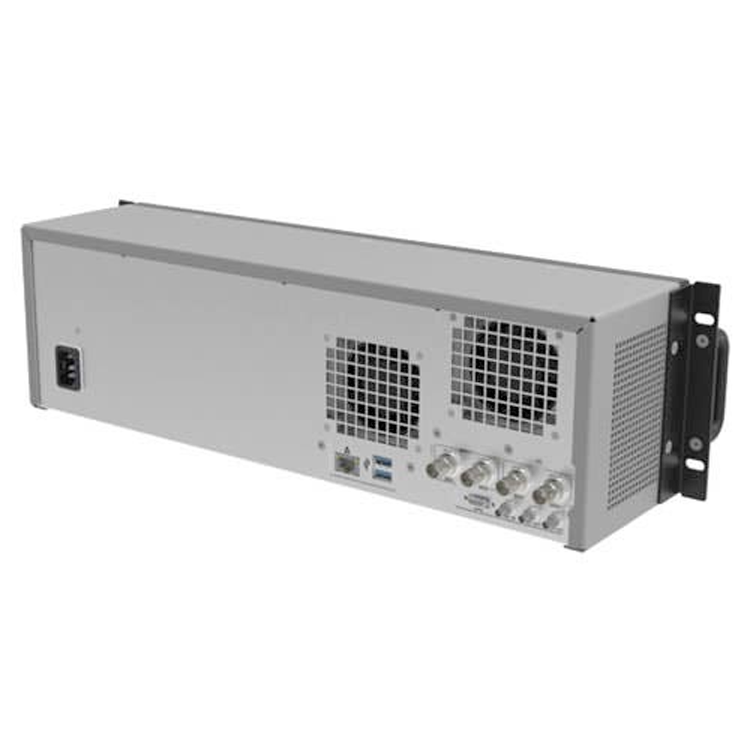

The Telestream MPD-300 PRISM Waveform Monitor With Dual Integrated Touchscreens, 3RU Full Rack, SDI/IP Inputs, and Eye Measurement has four inputs, each capable of supporting up to 12G-SDI, as well as 10 and 25G-IP. Telestream MPD-300 has been designed to support both local and remote production situations up to 8K HDR.

Now customers can purchase a base model and add features as and when required by simply purchasing a software license. Another benefit of software defined monitoring is that users do not need to return hardware to the manufacturer for an upgrade, as the upgrade is done in-house, minimizing downtime. The base model is equipped with a rich set of standard applications such as Waveform, Vector, Lightning, Diamond, Picture, Video Session, Audio, Event Log, Timing, and IP Status. Eye Measuring capability is fitted as standard in the 300 series.

Flexible screen tile configurations provide full screen, two, three and four tile layouts giving flexibility in selecting a variety of software apps for user-specific applications, while still allowing easy viewing of each display.

• Integrated scope with dual 9 in. monitors easily configure up to eight simultaneous tiles
• Four HD-BNC SDI inputs up to 12G enable simultaneous measurement of four UHD signals
• Two 10/25G SFPs support ST2110, ST2022 and PTP flows with redundant connection pathways
• Physical Layer Measurement (PHY) up to 12G SDI
• Optionally turn on complete set of QC or engineering measurement tools (not included)
• Compact form factor that is 3RU full-rack with 5 in. depth to maximize display area in tight configurations
