The TDM Flex Cable is an official OEM replacement data bridge designed for internal hardware reconfigurations within high-performance Avid VENUE E6L processing engines. Operating as a critical multi-card data ribbon, this internal connection cable bridges processing modules together inside the engine core. By establishing a direct, high-bandwidth communication link between adjacent cards, it facilitates massive real-time DSP channel allocation, multi-card master clock synchronization, and ultra-low latency plugin sharing across the system backplane.

This replacement cable represents the updated hardware version featuring significantly improved internal shielding and overall build quality over early legacy iterations. It is easily identifiable by the distinct circles printed directly around the IN / OUT directional connector labels. Standard anti-static handling safety procedures should be followed with the engine completely powered down during physical card interconnection.

Key Features

• Multi-Card DSP Interconnection: Seamlessly links two internal HDX-192 DSP expansion cards together to double active real-time processing power.
• Sample-Accurate Synchronization: Drives phase-locked master clock synchronization and data distribution across adjacent processing slots.
• Upgraded Structural Build: Modernized layout features enhanced flexibility and reliable ribbon tracking to eliminate physical data path fatigue under sustained chassis heat.
• Directional Data Tracking: Custom-keyed ribbon orientation ensures simple, error-free data routing between primary expansion cards and secondary expanding modules.

Technical Specifications

• Component Type: Internal Multi-Card TDM Flex Ribbon Cable

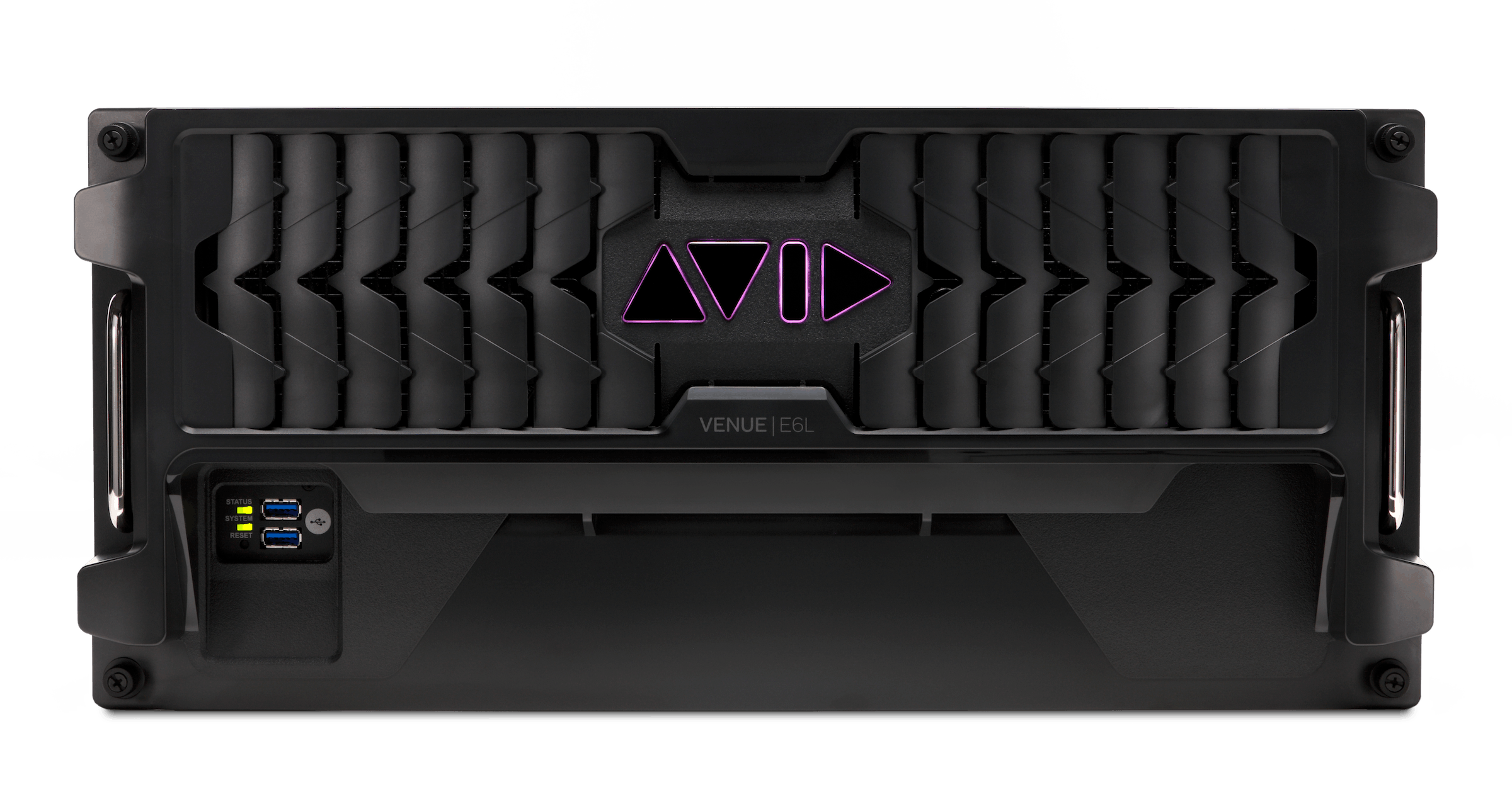

• Engine Framework Compatibility: Avid VENUE E6L Processing Engines (equipped with multiple HDX cards)

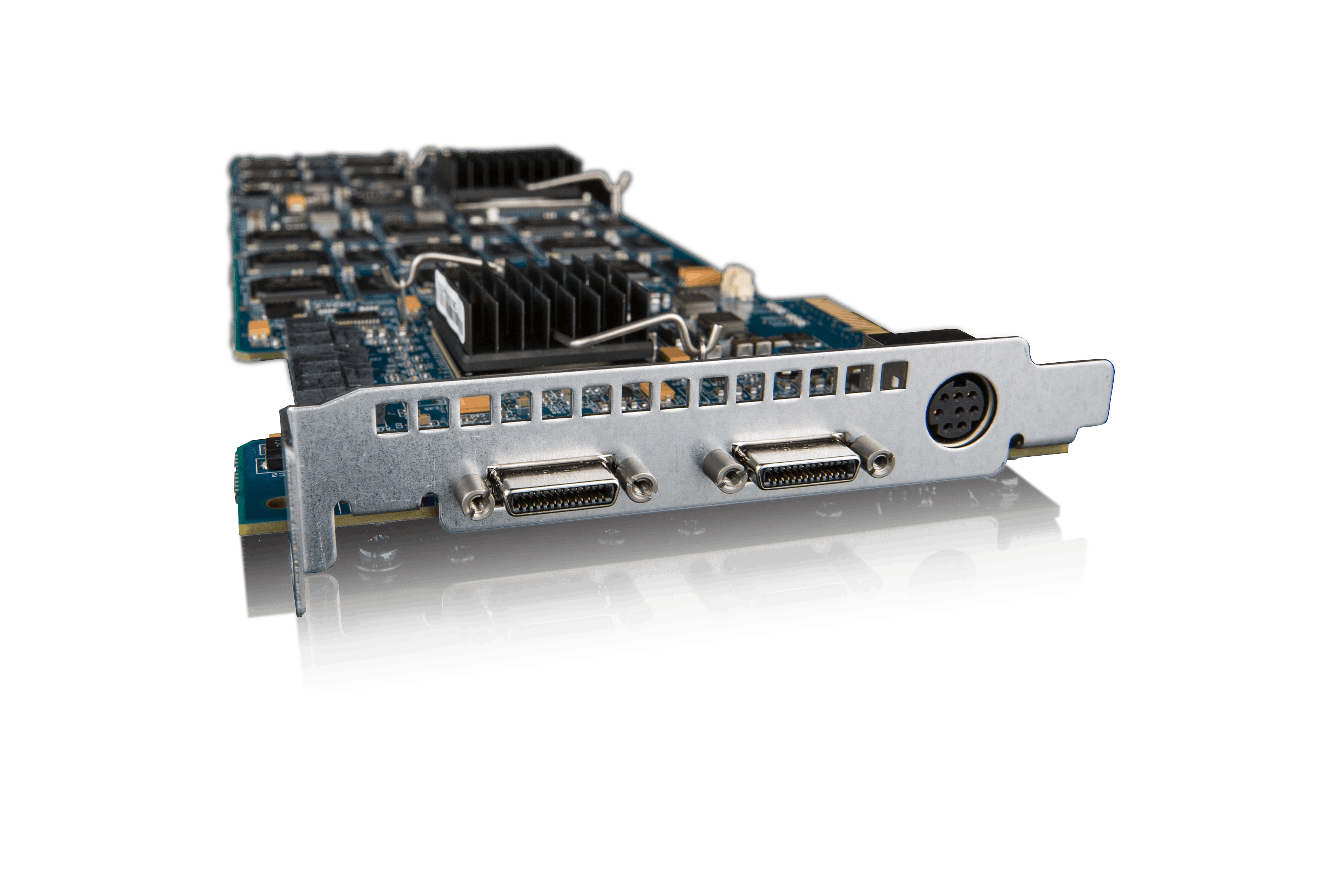

• Target Hardware Card Links: Interconnects 2 x HDX-192 DSP Expansion Cards
• Hardware Revision Indicator: Distinct circles printed around the physical IN / OUT connector labels
• Pack Quantity: 1 (Single Replacement Ribbon Cable)

System Compatibility Note: This ribbon cable is engineered exclusively to link adjacent HDX-192 DSP expansion cards together inside standard E6L engine frames. It is not required for processing engines running a single HDX card configuration, and it is not compatible with local S6L control surface local-I/O slots or external remote stage boxes.
