TBUS-1Axl B Table Mount Modular Multi–Connection Solution — Tilt–Up Lid - Product - Midwich

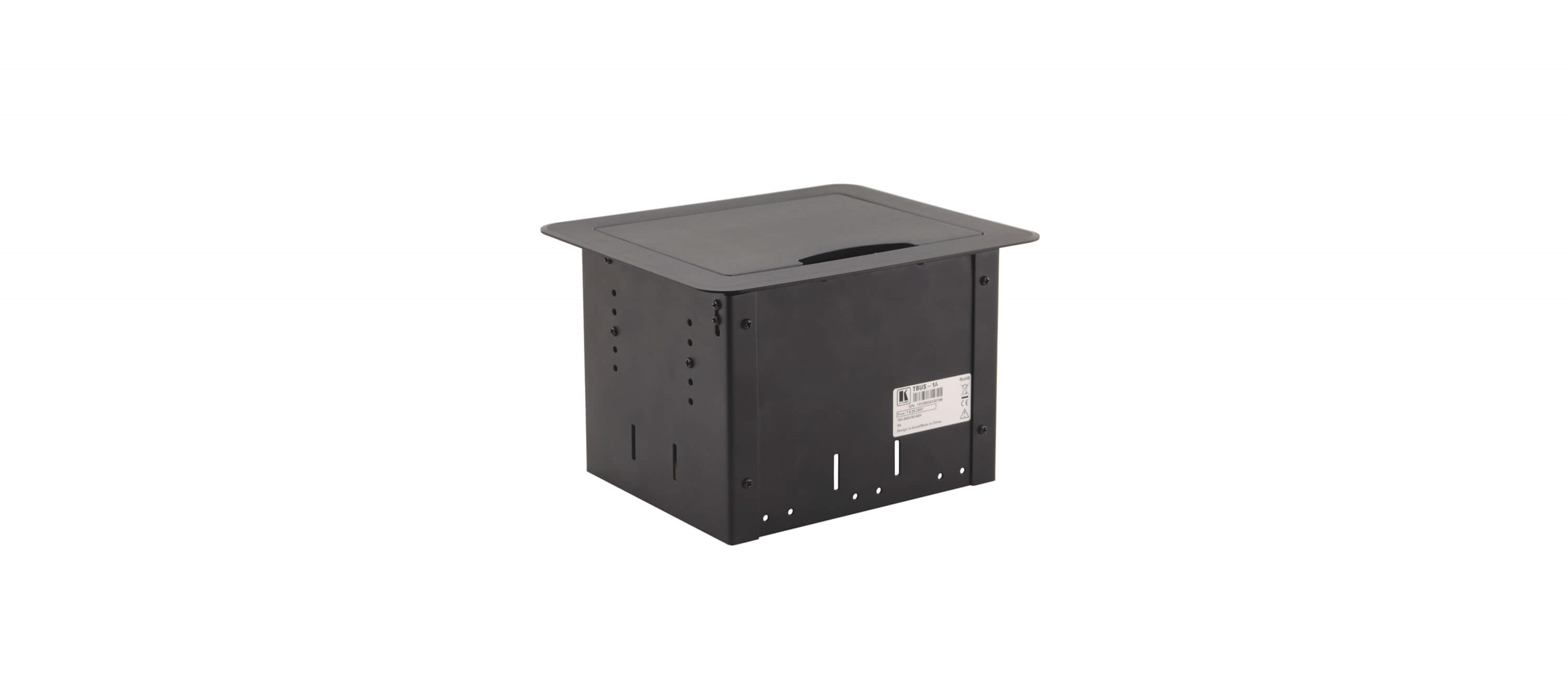

The TBUS−1Axl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

Features

•  Cover — Manually opens & closes.
•  Inner Frame — 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
•  Power Sockets — 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.
•  Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
•  Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
•  UL and CE Qualified.
•  Connector Depth — Adjustable.
•  Installation Requirement — Table cutout of 19.1cm x 15.2cm (7.51in x 5.98in).
•  Dimensions — 20.5cm x 17cm x 13.2cm (8.1" x 6.7" x 5.2") W, D, H.
•  Weight — TBUS–1Axl: 1.5kg (3.3lbs) approx.; table clamps: 0.26kg (0.57lbs); metal template: 0.125kg (0.28lbs).
