TBUS-1-KWC(BC) TBUS-1-KWCTBUS with Wireless Charging Spot - Product - Midwich

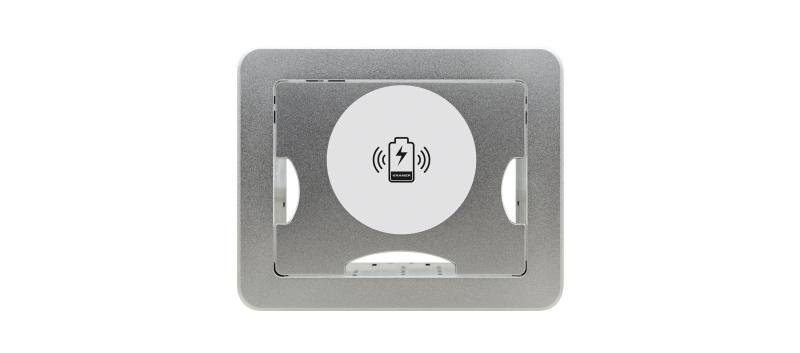

TBUS−1−KWC is a modular enclosure using the same inner frames as the TBUS−1Axl and TBUS−1N with an integrated, surface mount, wireless charging spot flush−mounted on the TBUS bezel.

•  Integrated Wireless Charging Spot — For mobile phones integrated in the TBUS.
•  Flush Surface
•  Power Supply — Requires a supply voltage of 12V DC at 2.0A.
•  Current Input — 1A, IEEE 802.15.4 based RF channels.
•  Power Output — 6 to 15W.
•  Regulatory Compliance — PMA type 3 compliant
  EMC Emission — EN5502/CISPR22
  Safety — EN60950–1, EN60950–1, UL60950–1, IEC 60950–1, RoHS, REACH
•  Qi Standard Compliant
•  Cutout Dimensions — 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).
