The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
The T904 is designed to power bi-amped systems like stage monitors,2-way point source speakers, and 2-way line sources, as well as smaller subwoofers.

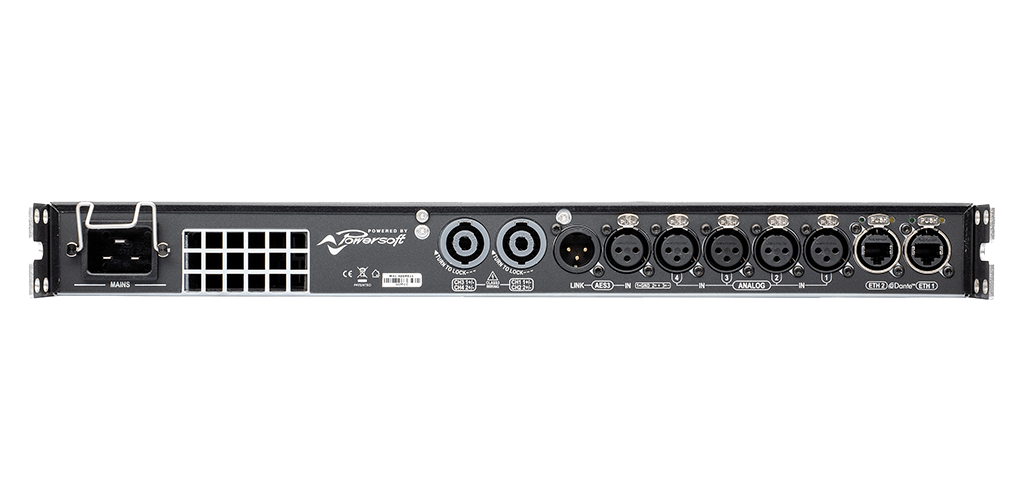

The amplifiers feature input via Dante, AES3, and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end, a WiFi access point at the other end, and the amplifiers in-between.
Channels
2 Ω/ch
4 Ω/ch
8 Ω/ch
Max Power one
channel 2 Ω
Max Power one
channel 4 Ω
Max Power one
channel 8 Ω
peak
max
4 ch
1800 W
2000 W
1600 W
1800 W
2300 W
1800 W
175 V
55 A
Features
The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways.
Full control with a PC running Armonía.

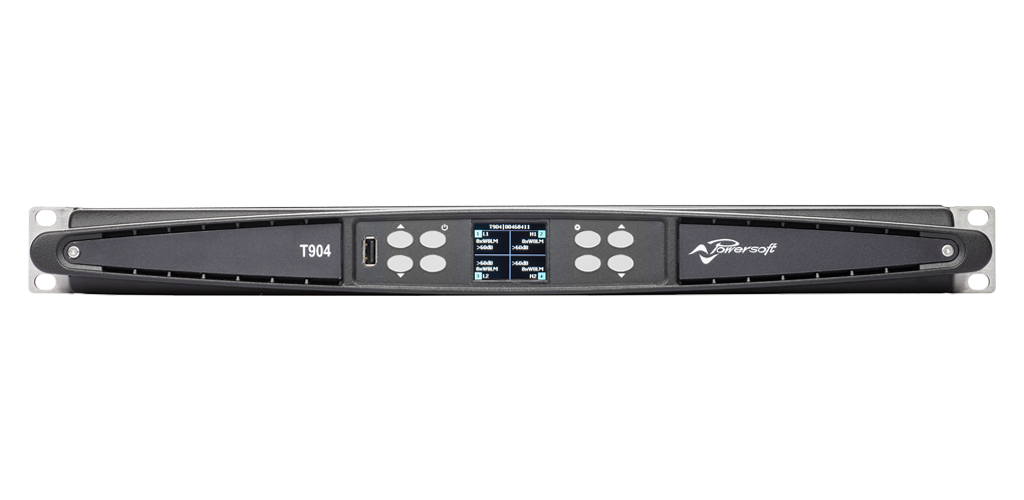

Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters.
Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
Group controllable advanced EQ with raised cosine filters
