Lightware SW4-OPT-TX240RAK DP1.1, DVI, 2x HDMI1.4 fiber optical transmitter with USB KVM, SC fiber connector, local HDMI output and analog balanced audio input. 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D and HDCP support. GPIO and Ethernet local control, Bidirectional RS-232 extension, Pixel Accurate Reclocking, - 91510027

List $2,953.50

Simple Video and Audio Transmission Over Long Distances

SW4-OPT-TX240RAK extends HDMI 1.4, DVI 1.0, HDCP and bi-directional RS-232* signals over one multimode fiber and transmit video signal with embedded audio to a distance of up to 2500 meters.

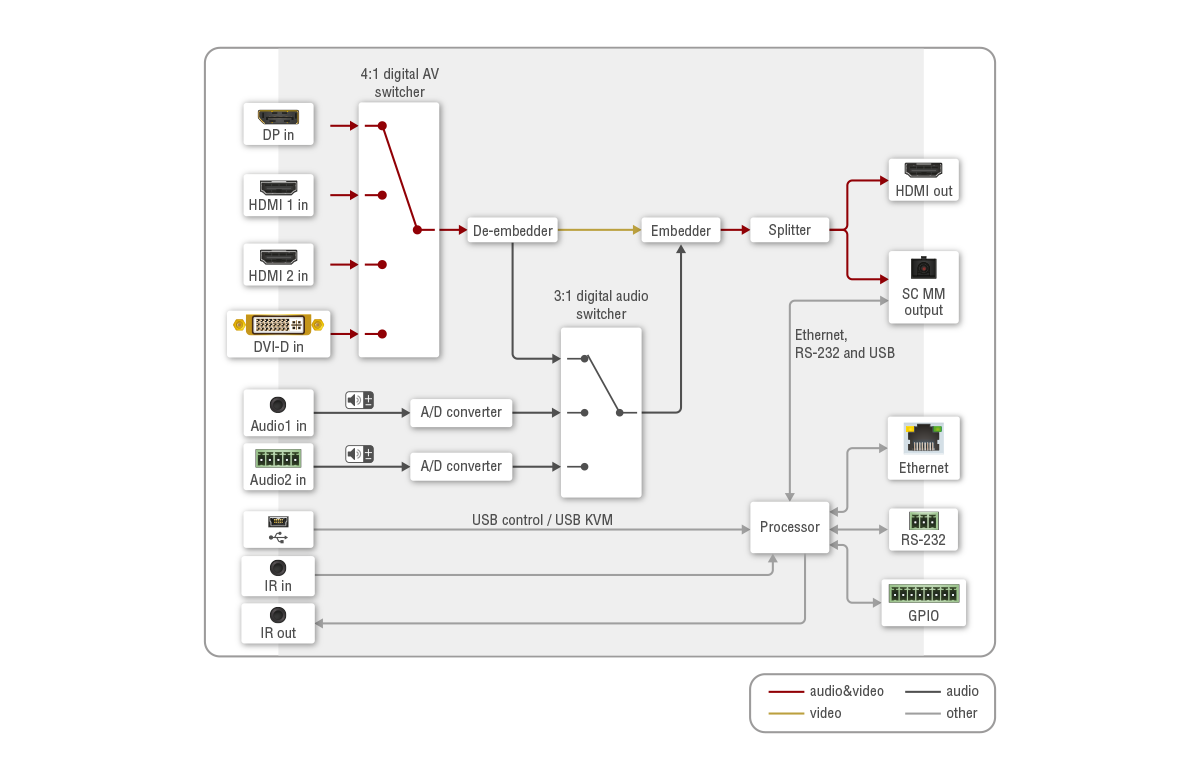

The extender was designed to handle HDMI1.4 and DP1.1 digital video signals and analog stereo audio from local inputs or HDMI embedded audio up to eight channel PCM or HBR audio. Analog audio is converted into digital format. The device has a local HDMI video output for monitoring. The video and the embedded audio of the local output is the same as the one transmitted via the OPT link. SW4-OPT-TX240RAK handles HDCP encryption.

Features

  • 1920x1080@120Hz/4:4:4 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300 MHz)
  • Bi-directional RS-232 extension pass-through and control
  • Extends HDMI 1.4 USB KVM and RS-232 signals over one multimode fiber cable
  • USB KVM (HID) extension
  • Audio embedding from 3.5mm jack or 5-pole balanced Phoenix connector
  • GPIO control ports

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
SW4-OPT-TX240RAK_2.pdf
