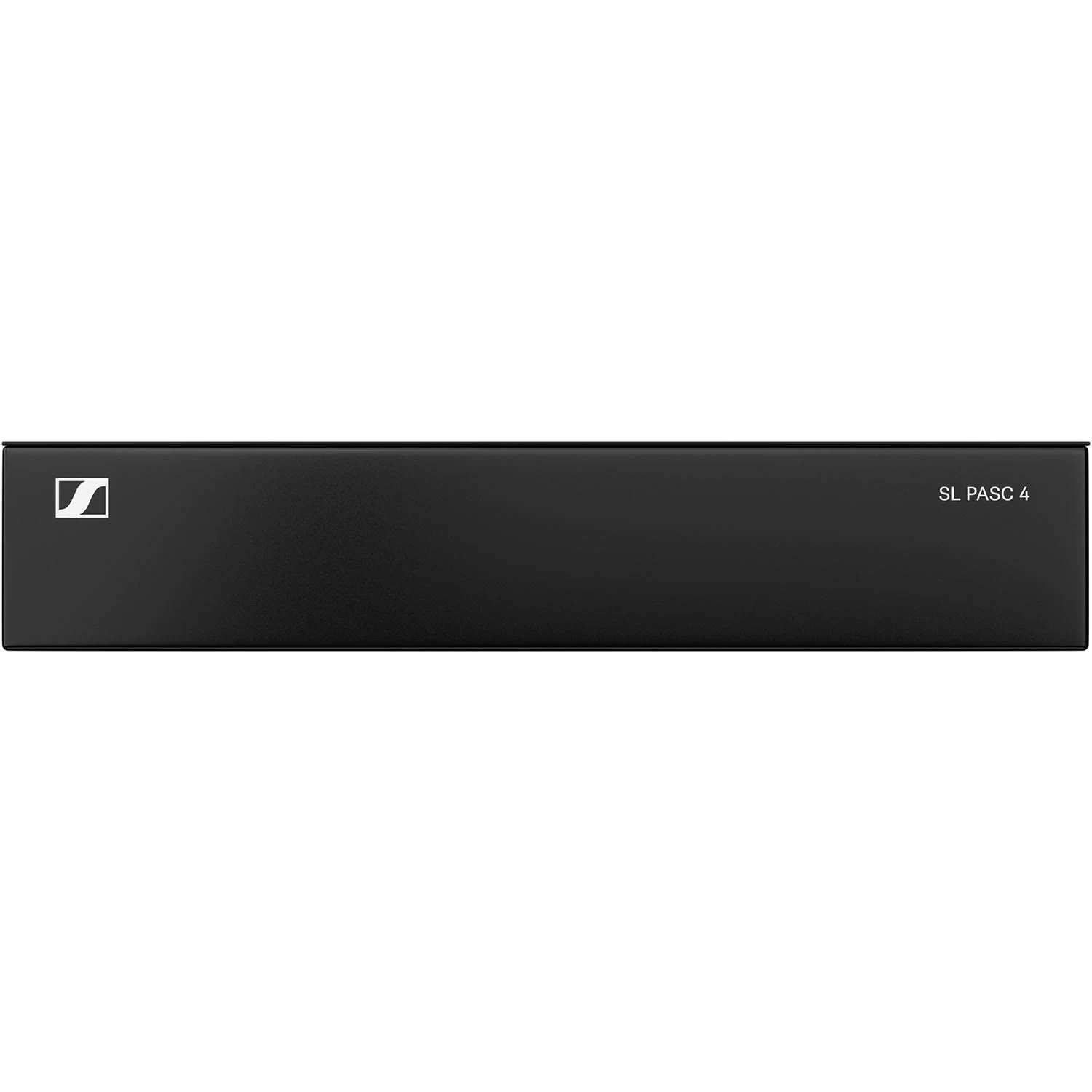

Sennheiser SL PASC 4 - Passive 4-way True Diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series with 2 RF inputs and 8 RF outputs, DECT Range (1880 - 1930 MHz) - 390041

List $819.00

The SL PASC 4 is a passive 4-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 4 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 4 using the supplied SMA-R cables.

Features

  • 1880 - 1930 MHz (DECT range)
  • 8 RF outputs for connecting up to 4 SL Rack Receiver DW units
  • 2 RF inputs to connect AWM 2 or AWM 4
  • SMA-RP connectors
  • Passive antenna combiner / splitter

Shipping
Master product height 3.15
Shipping height (in.) 3.15
Quantity unit of measure EA
Shipping width 11.02
UPC code 615104349797
Shipping weight 1.66
Master product weight 1.66
Master product width 11.02
Master carton quantity 1.0
EAN code 4044155253474
Country of origin FR
Master product length 13.78
Shipping depth 13.78
Harmonize code 8517790000
sp-1263-v1-1-sl-pasc-4-specification-en.pdf
