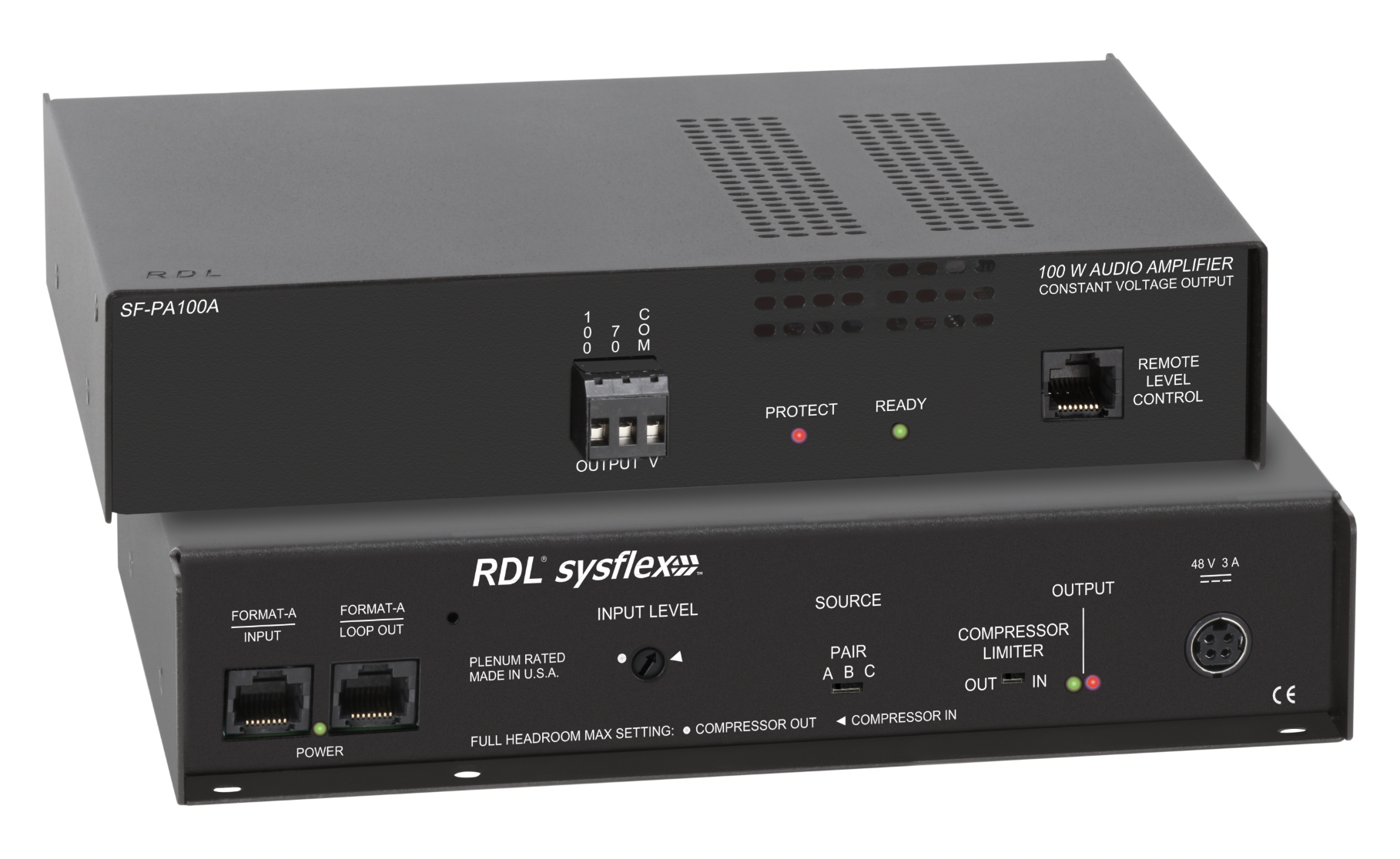

Format-A to 100 W Mono Audio Amplifier - 70 V or 100 V

• 100 Watts RMS Constant Voltage Amplifier
• 70 V or 100 V Output
• Plenum Rated per UL 2043 Standard
• Audio Input is Switch-Selectable from Format-A Pair A, Pair B or Pair C
• Converts One Format-A Audio Signal Pair to a Mono Constant Voltage Output
• Format-A Signal and Power Pairs Pass Through to LOOP OUT Jack
• External Level Control Using RDL D-RLC10KM-Type Remote Level Controls with RJ45
• Special Software Not Required for Module Setup
• LED Indicators: Amplifier Output Level and Status, and Correct dc Voltage on Format-A Output
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
