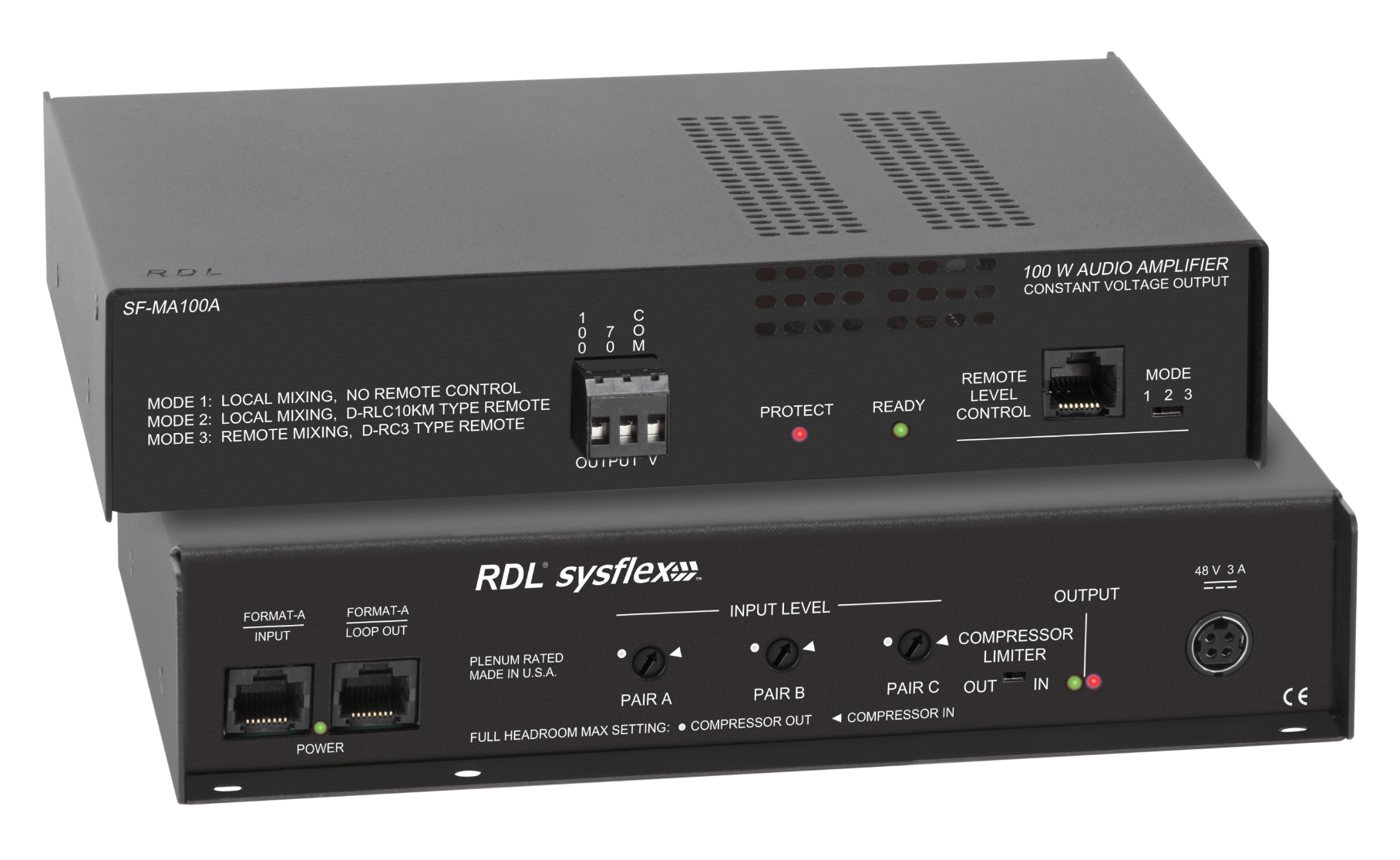

Format-A to 100 W Mono Audio Mixer-Amplifier - 70 V or 100 V

• 100 Watts RMS Constant Voltage Amplifier
• 70 V or 100 V Output
• Three Operating Modes
• Mode 1: 3-Input Mixer Amp with No Remote Control
• Mode 2: 3-Input Mixer Amp with VCA for Remote Level Control of Audio Output
• Mode 3: 3-Input Mixer Amp with VCA Remote Control of Each Mixer Input
• Mixes Audio Inputs from Format-A Pair A, Pair B and Pair C
• Format-A Signal and Power Pairs Pass Through to LOOP OUT Jack
• External Level Control Using RDL Type D*-RLC10KM (Mode 2) or D*-RC3 (Mode 3) Remote Controls with RJ45
• Special Software Not Required for Module Setup
• LED Indicators: Amplifier Output Level and Status, and Correct dc Voltage on Format-A Output
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Plenum Rated per UL 2043 Standard
