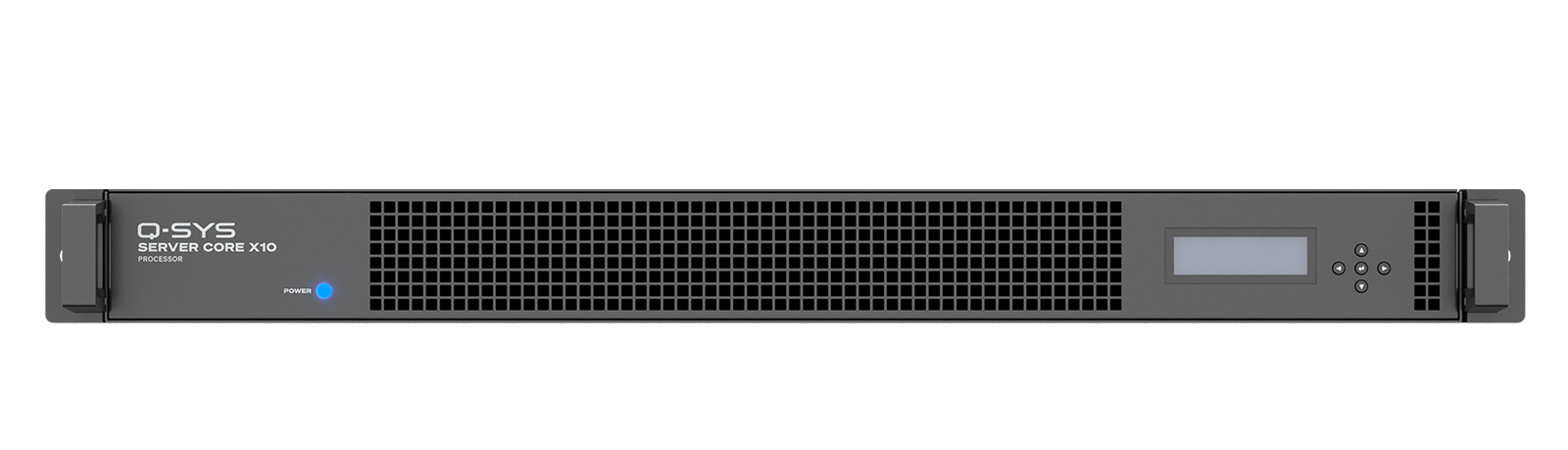

SERVER CORE X10 - Product - Midwich

The Server Core X10 combines the Q-SYS Full Stack AV Platform with enterprise-grade server hardware to deliver a flexible and scalable audio, video and control solution for medium and large scale applications. The Server Core X10 functions effectively as a central processor for multiple zones or spaces with distributed network I/O or paired with distributed processing.

Features & Benefits

• 256 x 256 networked audio channels (Q-LAN / AES67)
• 64x AEC channels @ 200 ms
• Includes 8 x 8 Software-based Dante channels (licensable up to 128 x 128)
• Supports up to twelve (12) Q-SYS NM-T1 tabletop microphones
• Up to 32 VoIP softphone instances
• 64 x 64 Media/WAN channel capacity
• 16 multitrack playback channels (up to 128 with optional stackable feature license)
• 4 multitrack record channels
• Two (2) 2.5 Gbps Ethernet ports for redundant networked audio
• Two (2) 2.5 Gbps independent, auxiliary Ethernet ports for segregation of network services such as VoIP, SNMP, LLDP, LDAP and WAN Media streaming
• Onboard 256 GB media drive
• 1 RU form factor

Q-SYS X-Class Server Core for AV&C processing built on enterprise-grade IT server hardware, offering 256x256 networked audio channels with 8x8 Software-based Dante license included, dual Ethernet ports for network redundancy plus two auxiliary Ethernet ports, 64 next-generation AEC processors, internal universal PSU, pre-installed 256GB SSD Media Drive, 1RU. Includes Scripting/UCI functionality.
