QIO-LVR4 Control I/O Expander - Product - Midwich

The Q-SYS QIO-LVR4 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via low-voltage relay connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

Features and Benefits:

• Native network low-voltage relay connectivity solution for Q-SYS

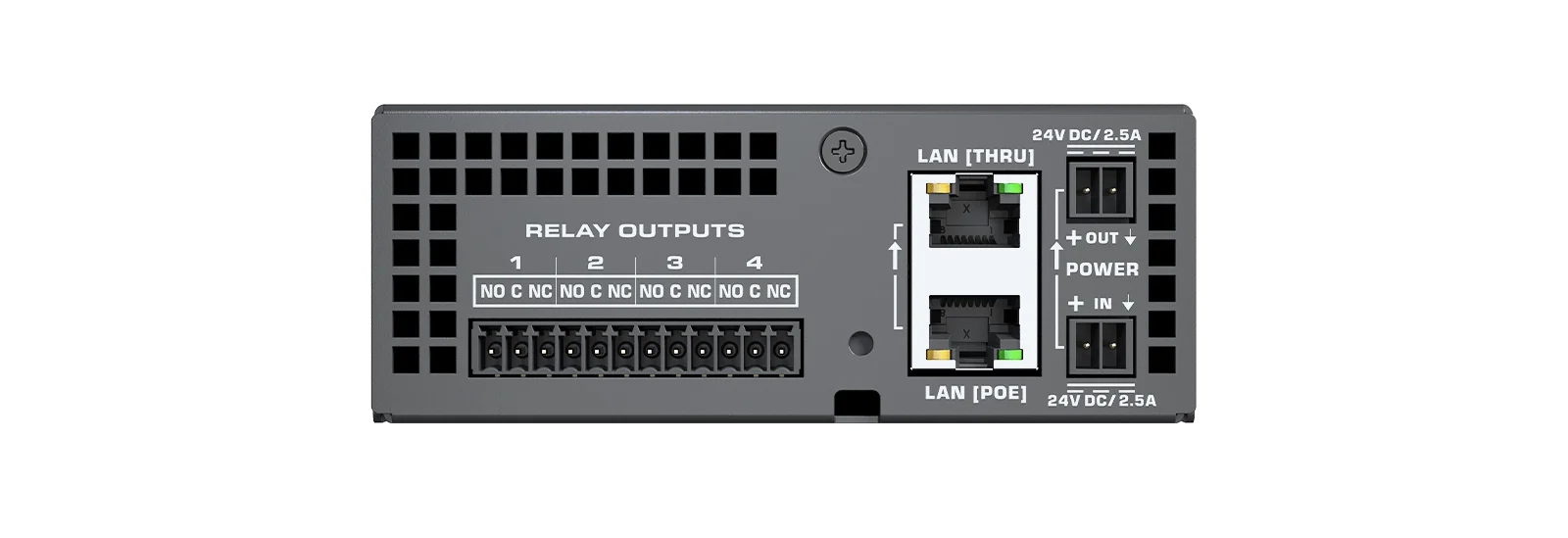

• Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections
• Power-over-Ethernet (PoE) capable
• Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
• Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
• Surface- or rack-mountable (1RU, quarter-width)
• Includes surface mounting hardware
• QIO-RMK rack mounting kit sold separately
• QIO-PSU DC power supply sold separately

Note: This product will be supported in Q-SYS Designer Software v9.12.

Network control connectivity where you need it:

The QIO-LVR4 allows you to provide your Q-SYS system with greater flexibility to deploy control connectivity where it’s most convenient. The QIO-LVR4 provides four (4) contact closure relays with transient voltage suppression to interface with third-party lighting systems, motorized shades, environmental systems, and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.

Expanded I/O customization:

QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable).

Simplicity & scalability:

Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).

Designed for Q-SYS:

The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video, and control platform, built to deliver scalable, flexible AV solutions into the future.
