The Q-SYS QIO-IR1x4 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via IR connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

Features and Benefits:

• The first native network IR connectivity solution for Q-SYS

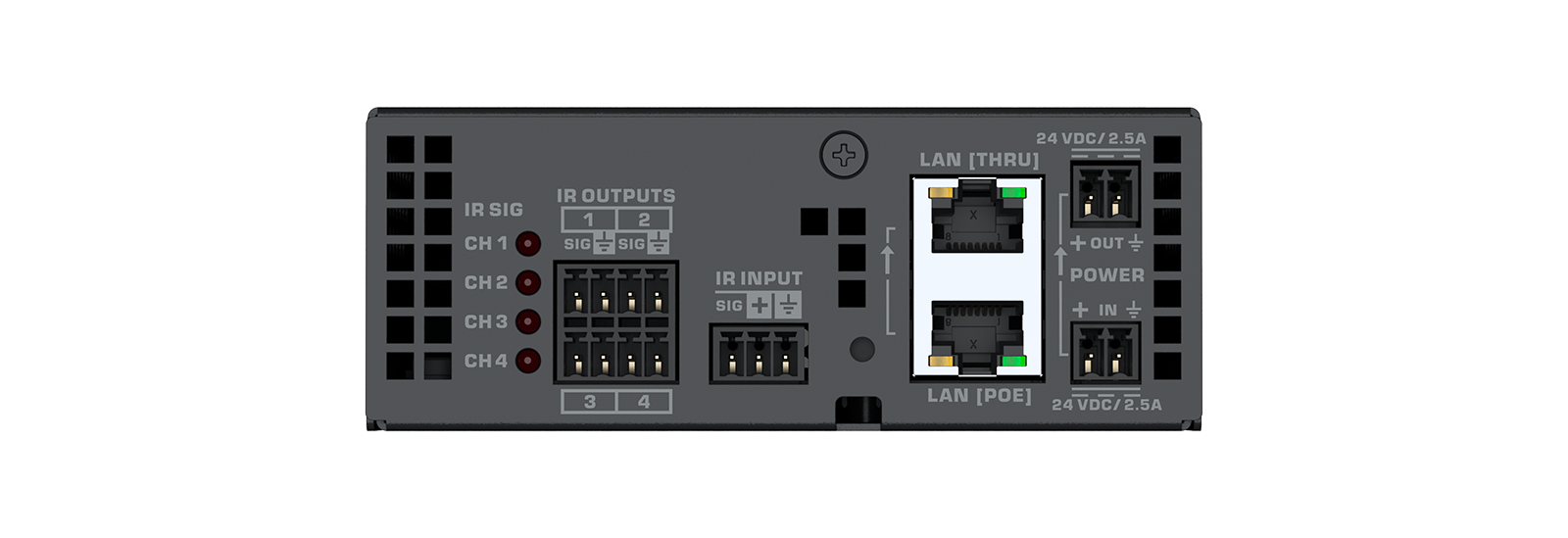

• One (1) IR receiver input and four (4) IR emitter outputs
• Power over Ethernet (PoE) capable
• Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
• Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
• Surface- or rack-mountable (1RU, quarter width)
• Includes surface mounting hardware

The first native IR connectivity solution for Q-SYS
The QIO-IR1x4 allows you to provide your Q-SYS system with greater flexibility to deploy IR control connectivity where it’s most convenient. The QIO-IR1x4 features one (1) IR receiver input and four (4) IR emitter outputs, enabling Q-SYS control for a broad range of professional/consumer devices including video displays, media players and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.

Expanded I/O customization
QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable)).

Simplicity & scalability
Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).

Designed for Q-SYS
The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future.
