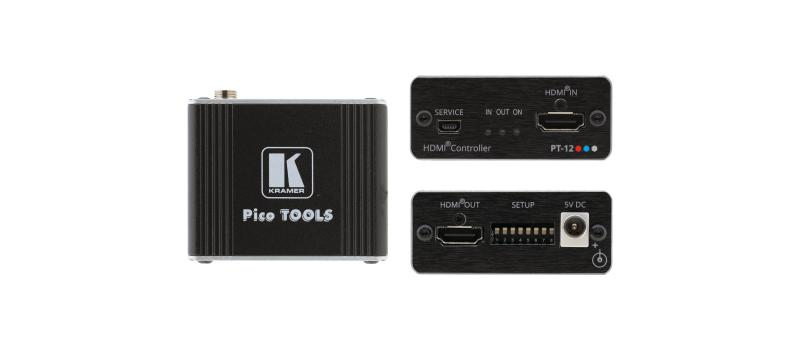

PT-12 4K60 4:2:0 HDMI Controller - Product - Midwich

PT−12 is a CEC−enabled TV/display ON/OFF controller and extended EDID processor for HDMI signals up to 4K@60Hz (4:2:0) resolution. When PT−12 detects an HDMI cable plug, it automatically turns on the connected display, and automatically shuts down the display when signal loss is detected. PT−12 is an EDID processing tool for controlling the EDID functions.

•  Plug–and–Play Display Operation — Simplifies meeting presentation operation by automatically turning ON/OFF a CEC–enabled display when the presentation source is plugged in / unplugged with user–defined shut–down delay.
•  High–Performance HDMI Controller — Supports pass–through of signals up to 4K@60Hz (4:2:0) resolution with user control on signal capabilities and functions.
•  HDCP Authorization — Controlled device appearance as HDCP authorized to allow unsecured content display by all market–available computer sources.
•  Video Signal Control — Controlled color depth attributes and color space forcing capabilities of passing–through video signal, along with EDID locking configuration to ensure proper video display.
•  Audio Signal Control — Controlled audio–channels limitation of passing–through audio signal.
•  Display Control — Display auto shut–down upon no signal detection with user–defined delay, as controlled by end–user settings.
•  Simple Operation — DIP–switches available for simple controller functions by end–user.
•  Cost–Effective Maintenance — Status LED indicators for HDMI ports and power facilitate easy local maintenance and troubleshooting. Local device management and firmware upgrade via mini–USB port and DIP–switches, ensure lasting, field–proven deployment.
•  Easy Installation — Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended Kramer rack adapter.
