Pro Convert HDMI Plus Module - Product - Midwich

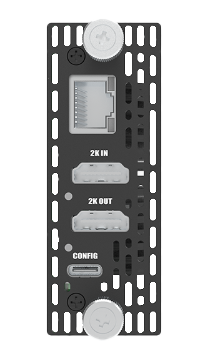

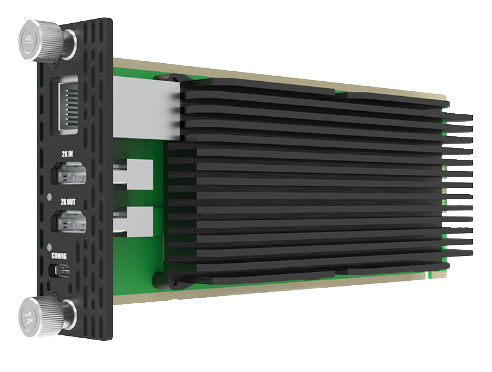

Pro Convert HDMI Plus Module

Converts an HD HDMI input signal into high-bandwidth NDI® with loop-through

• A hot-swappable module to be installed in Magewell Modator chassis
• Supports up to 4096x2160 60fps (4:2:0) or 30fps (4:4:4), down-converting them to HD NDI
• Centrally manageable via the Modator chassis and Magewell Control Hub

Specifications and Features

Input & Loop-Through Features

• Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4:2:0 60fps HDMI input and loop-through
• Supports 8-channel HDMI-embedded audio

NDI® Encoding Features

• Support for up to 2048x2160 120fps 4:2:2 8-bit NDI encoding
• Sends NDI streams across network segments
• Encodes 8-channel NDI-embedded audio
• Supports NDI 6.0

Features & Advantages

• Very low latency
• Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
• HTTP-based APIs for custom integration

MFG PART # B40210000
