Hot-swappable modular blade for Magewell Modator chassis. Encodes 12G SDI to NDI High Bandwidth with loop-through. Manageable through web user interface and Magewell Control Hub.

List $1,099.00
MAP $1,099.00

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI® with loop-through

  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Supports inputs up to 4K at 60fps with 16 channels of embedded audio
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Interface



Specifications and Features

Input Features

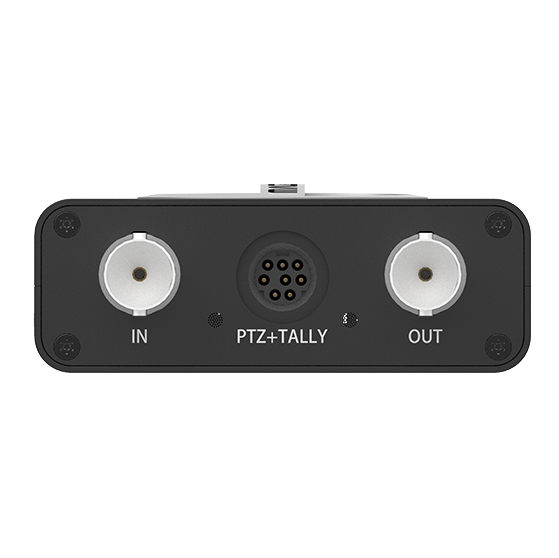

  • Single-link 12G-SDI input and loop-through
  • Support for up to 4096x2160 60fps input
  • Support for up to 16 (mono) audio channels

NDI® Format

  • Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
  • Send NDI streams across network segments
  • Remotely control PTZ cameras via NDI
  • Support for NDI 6.2

Features & Advantages

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI

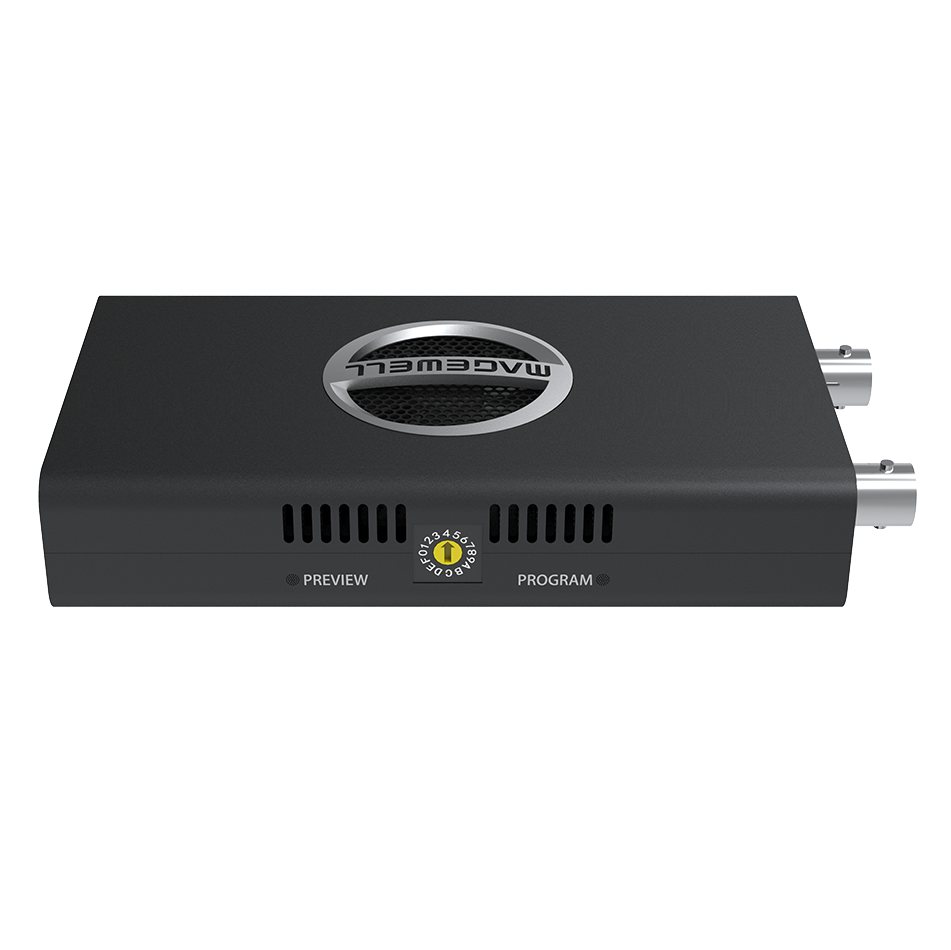

  • Tally lights and camera mounting for live production applications
  • HTTP-based APIs for custom integration
  • Provide Crestron Plugins
  • Provide Q-SYS Control Plugins







Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
EAN code 0814395021621
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
