Lightware OPTJ Power tray SC Rack mountable tray with built in power supply and mounting for Lightware HDMI20-OPTJ-TX/RX90 extenders. Full rack width, 1U high. SC fiber optical connector. - 91340018

List $2,458.50

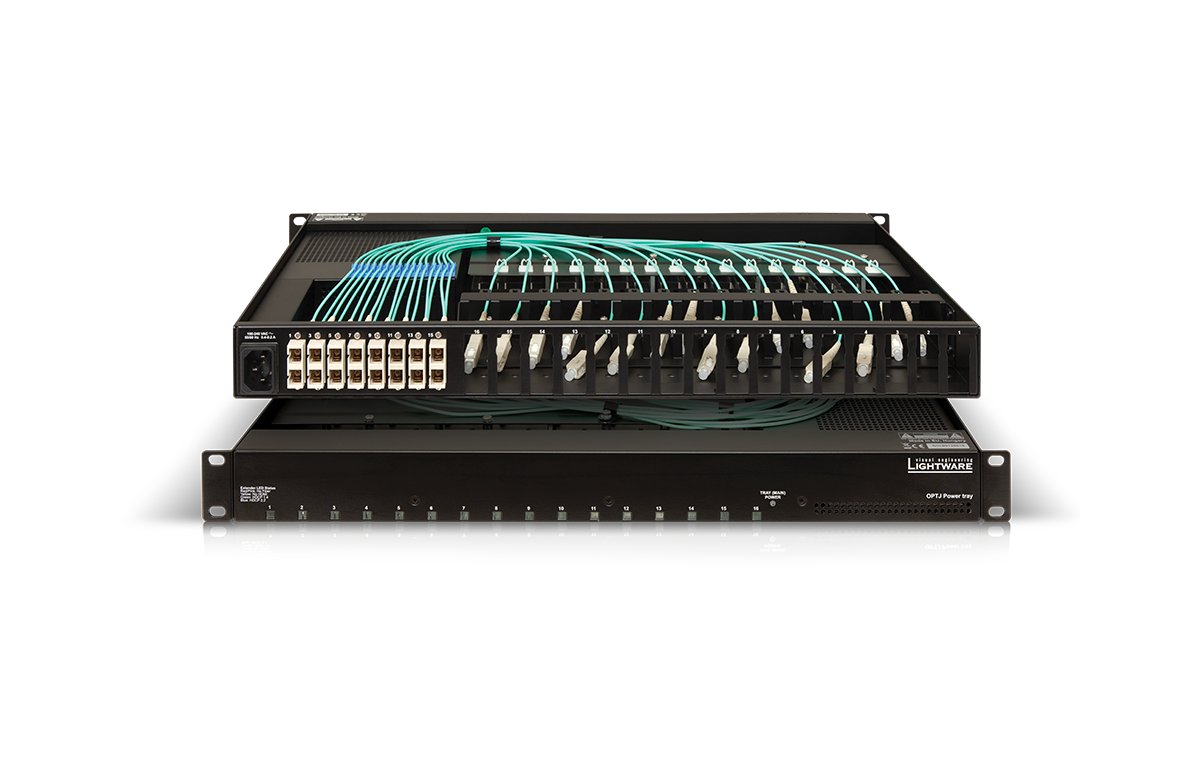

The PowerTray is a 1RU size housing accessory which can enclose up to 16 HDMI20-OPTJ-TX/RX90 units, also providing power source for every installed device. The optical fibers are connected to the eight SC Duplex connectors, each carrying two signal fibers from the extenders. The HDMI tail cables of the extenders are accessible directly at the back of the PowerTray.

HDMI 2.0 optical matrix assembly: by connecting the HDMI connectors of the fully populated PowerTray with the input and output ports of an MX2-8x8-HDMI20-Audio matrix a HDMI 2.0 optical matrix system can be created with Full 4K UHD at 60 Hz 4:4:4 maximum resolution.

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
PowerTray-16-OPTJ_NTD_NTQ_SC.pdf
