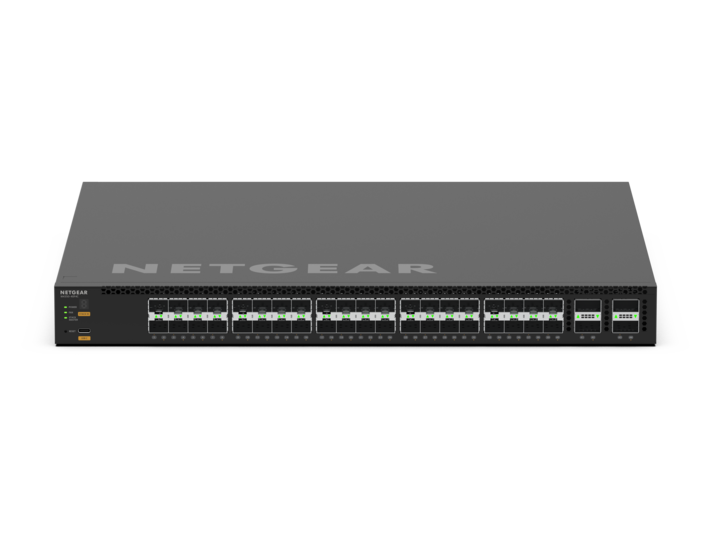

NETGEAR XSM4344FC M4350-40F4C Fully Managed Switch - Product - Midwich

• Ports: 44 Ports
• Port Types
  • 40 x 10G SFP+
  • 4 x 100G QSFP28
• Details
  • 40 10GBASE-X SFP+ ports with 4 100GBASE-X QSFP28 uplinks.
  • 420W internal power supply.
  • 1 slot for modular power supply (1+1 redundancy).
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
  • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.

POWER AND THROUGHPUT

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

M4350 AV Over IP Simplified

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP, RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

TECHNICAL DETAILS

• Width: 440mm
• Depth: 400mm
• Height: 43.2mm
• Weight: 7.38kg (16.26lb)
• Primary Port Speed: 10 Gigabit
• Number of Ports: 44 (40 x 10G SFP+, 4 X 100G QSFP28)
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included
• Acoustics: Quiet Mode 34.2dB@25ºC
• Power Consumption
  • Max: 213.6W/728.21Btu/hr
  • Standby without any port connection: 65W/221.12Btu/hr
• PSU Compatible Models
  • APS600Wv3
  • APS1200Wv2
  • APS2000Wv2
