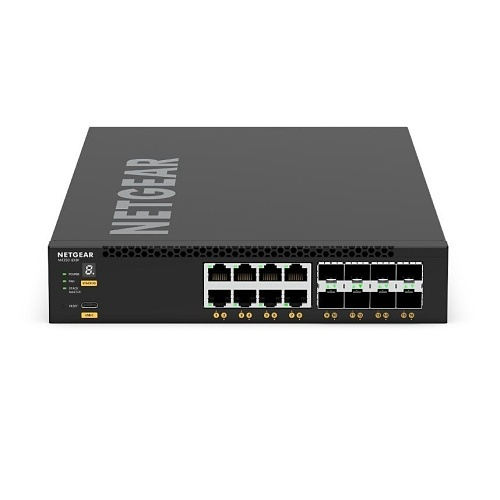

NETGEAR XSM4316 M4350-8X8F Managed Switch - Product - Midwich

• Ports: 16 Ports
• Port Types
  • 8 x 10G/Multi-Gig
  • 8 x 10G SFP+
• Details
  • 8 10G/Multi-Gig ports, and 8 10GBASE-X SFP+ ports
  • 240W internal power supply
  • Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus^™, AV User Interface, and Engage Controller speed up AV installations

POWER AND THROUGHPUT

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

M4350 AV Over IP Simplified

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP, RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

TECHNICAL DETAILS

• Width: 220mm
• Depth: 400mm
• Height: 43.2mm
• Weight: 4.05kg (8.93lb)
• Primary Port Speed: 10 Gigabit / Multi-Gig
• Number of Ports: 16 (8 x 10G Multi-Gig, 8 X 10G SFP+)
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included
• Acoustics: Quiet Mode 34.4dB@25ºC
• Power Consumption
  • 81.1W/254.65Btu/hr
  • Standby without any port connection: 30.5W/95.77Btu/hr
