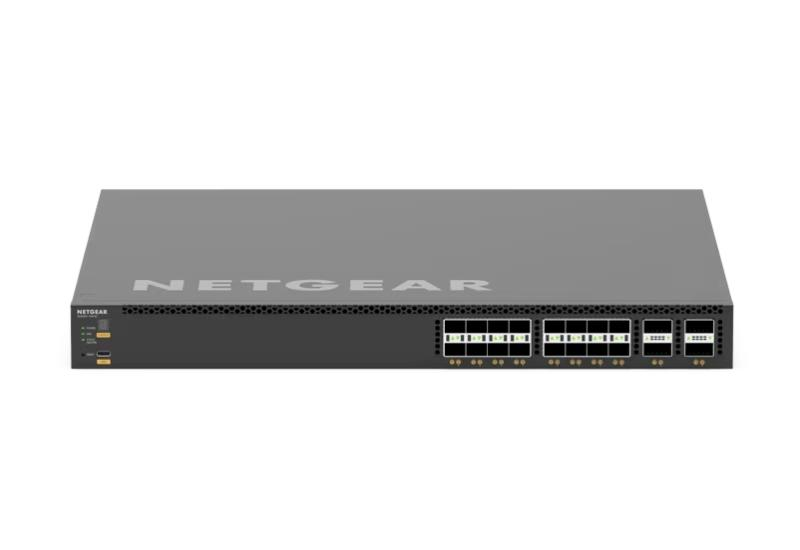

16xSFP28 25G and 4xQSFP28 100G Managed Switch - VSM4320C-100NES

List $12,258.60
MAP $8,999.99

  • Ports: 20 Ports
  • Port Types
    • 16 x 25G SFP28
    • 4 x 100G QSFP28
  • PoE Budget: N/A
  • Details
    • 16 25GBASE-X SFP28 ports with 4 100GBASE-X QSFP28 uplinks
    • 420W internal power supply
    • 1 slot for modular power supply (1+1 redundancy)
    • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
    • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
    • Layer 3 feature set includes static, policy-based, and dynamic routing
    • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
    • Supports SMPTE ST 2110 for professional broadcast applications

POWER AND THROUGHPUT

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

M4350 AV Over IP Simplified

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP, RIGHT OUT OFTHE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Technical Details

  • Width: 440mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 7.15kg (15.77lb)
  • Primary Port Speed: 25 Gigabit
  • Number of Ports: 20 (16 x 25G SFP28, 4 x 100G QSFP28)
  • PoE Ports / Budget: N/A
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes, included
  • Acoustics: Quiet Mode 33.4dB@25ºC
  • Power Consumption
    • 143.4W/450.28Btu/hr
    • Standby without any port connection: 60.4W/189.66Btu/hr
  • PSU Compatible Models
    • APS600Wv3
    • APS1200Wv2
    • APS2000Wv2



Shipping
Master product height 0.0
Shipping height (in.) 22.64
Master product width 0.0
Master carton quantity 1.0
Harmonize code 0
Master product length 0.0
Quantity unit of measure EA
Shipping width 23.5
UPC code 606449165074
Shipping depth 3.7
Shipping weight 23.47
Master product weight 0.0
M4350_Datasheet.pdf
M4350_Brochure.pdf
M4350_ProductBrief.pdf
M4350_InstallationGuide.pdf
M4350_UserManual.pdf
