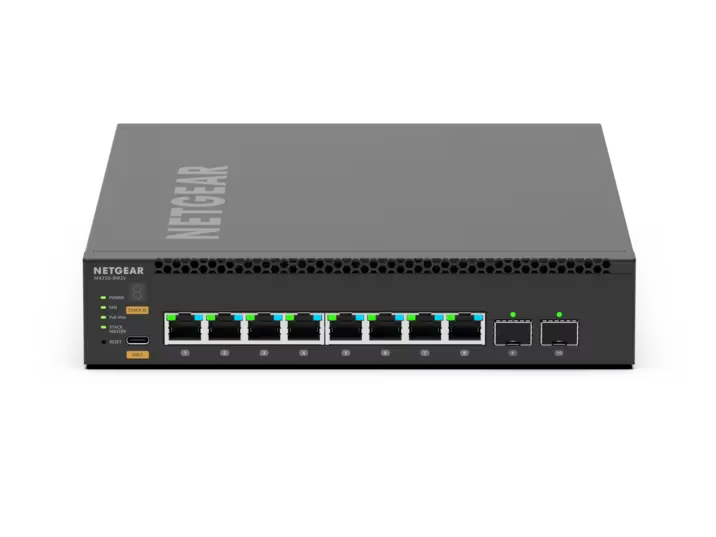

NETGEAR MSM4310 M4350-8M2V MANAGED SWITCH - Product - Midwich
NETGEAR NETGEAR MSM4310 M4350-8M2V MANAGED SWITCH
8x2.5G PoE++ (119W base, up to 551W) and 2x25G SFP28 Managed Switch - MSM4310-100NES
- Ports: 10 Ports
- Port Types
- 8 x 2.5G PoE++
- 2 x 25G SFP28
- PoE Budget
- 119W Base
- up to 551W
Details
- 8 2.5G PoE++ ports with 2 25GBASE-X SFP28 uplinks.
- Comes with one APS254W power adapter providing 119W of base PoE budget.
- Half-width form factor enables one or two switches in a single rack space
- Up to three APS254W power adapters provide up to 551W PoE budget and/or N+1 redundancy
- The PoE budget can reach 551W, when the redundant PoE budget is 119W (1+1) or 322W (2+1).
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus ™ , NETGEAR AV OS, and Engage Controller speed up AV installations.
- SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
- NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement
POWER AND THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
M4350 AV Over IP Simplified
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT, NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP, RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.
TECHNICAL DETAILS
- Width: 220mm
- Depth: 300mm
- Height: 43.2mm
- Weight: 2.9Kg (6.39lb)
- Primary Port Speed: 2.5 Gigabit
- Number of Ports: 10 (8 x 2.5G PoE++, 2 x 25G SFP28)
- Total PoE++ Ports: 8
- Total PoE++ Budget: 119W Base, up to 551W
- IGMP Support: Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support: Yes, up to 12kb
- AVB Support: Yes, included.
- Acoustics: Quiet Mode 32.1dB@25ºC
- Power Consumption
- With max PoE: 682W/2,324.93Btu/hr
- Without PoE: 82W/27.95Btu/hr
| Shipping | |
|---|---|
| Master product height | 0.0 |
| Shipping height (in.) | 5.55 |
| Master product width | 0.0 |
| Master carton quantity | 1.0 |
| Harmonize code | 0 |
| Master product length | 0.0 |
| Quantity unit of measure | EA |
| Shipping width | 15.2 |
| UPC code | 606449172911 |
| Shipping depth | 16.77 |
| Shipping weight | 16.79 |
| Master product weight | 0.0 |
