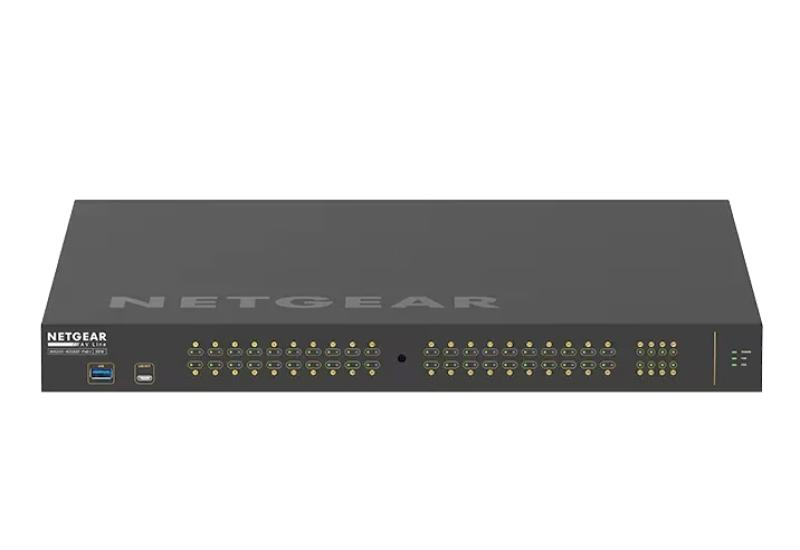

NETGEAR GSM4248PX M4250-40G8XF-POE+ Managed Switch - Product - Midwich

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

• Ports: 48 Ports
• Port Types
  • 40 x 1G PoE+
  • 8 x SFP+
• PoE Budget
  • 40 PoE+ (30W/port)
  • 960W Budget

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

Technical Specs

• Primary Port Speed: 1 Gigabit
• Number of Ports: 48 (40x 1G PoE+, 8x SFP+)
• PoE Ports / Budget: 40 PoE+ (30W/port), 960W Budget
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes. Electronic license required, activation key sent via email (AVB4248PX-10000S).
• Acoustics: Fanless or 59dB@25ºC
• Power Consumption:
  • With PoE: 1197W/4086.56Btu/hr
  • Without PoE: 89.2W/304.53Btu/hr
  • ​Standby without any port connection: 74.5W/254.34Btu/hr
