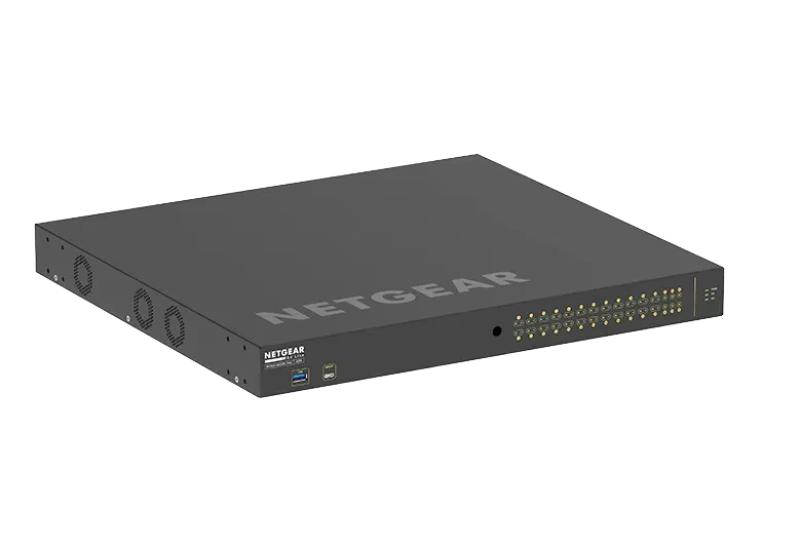

M4250-26G4XF-POE+ Managed Switch - GSM4230PX-TAANAS

List $3,345.50
MAP $2,309.99

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

  • Ports: 30 Ports
  • Port Types
    • 24 x 1G PoE+
    • 2 x 1G
    • 4 x SFP+
  • PoE Budget
    • 24 PoE+ (30W/port)
    • 480W Budget

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster.

M4250 AV Over IP Simplified

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP, RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

Technical Specs

  • Primary Port Speed: 1 Gigabit
  • Number of Ports: 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
  • PoE Ports / Budget: 24 PoE+ (30W/port), 480W Budget
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes. Electronic license required, activation key sent via email (AVB4230PX-10000S)
  • Acoustics: Fanless or 42dB@25ºC
  • TBD Power Consumption:
    • With PoE: 614W/2096.2Btu/hr
    • Without PoE: 46.8W/159.78Btu/hr
    • Standby without any port connection: 33.9W/115.73Btu/hr



Shipping
Master product height 0.0
Shipping height (in.) 18.35
Harmonize code 8517.62.0020
Quantity unit of measure EA
Shipping width 21.1
UPC code 606449168754
Shipping weight 17.22
Master product weight 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin VN
Master product length 0.0
Shipping depth 4.8
