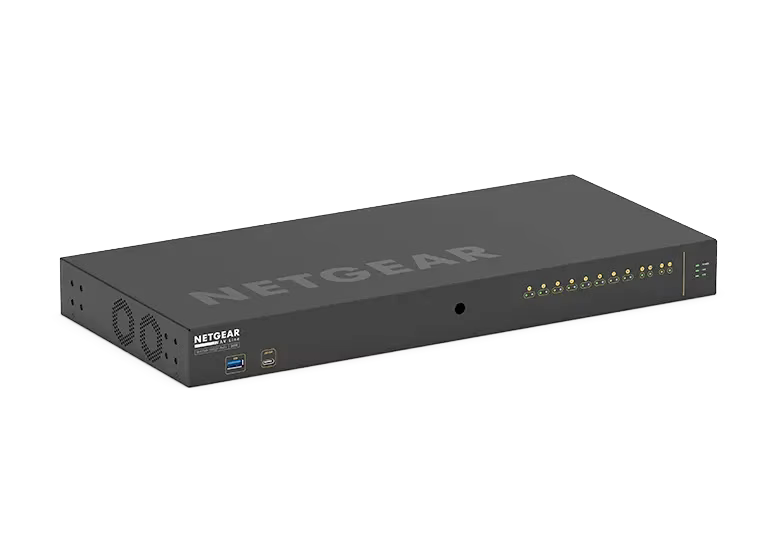

NETGEAR GSM4212P M4250-10G2F-POE+ MANAGED SWITCH - Product - Midwich
NETGEAR NETGEAR GSM4212P M4250-10G2F-POE+ MANAGED SWITCH
8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch - GSM4212P-100NAS
Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.
- Ports: 12 Ports
- Port Types
- 10 x 1G
- 2 x SFP
- PoE Budget
- 8 PoE+ (30W/port)
- 125W Budget
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster.
M4250 AV Over IP Simplified
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT, NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
Technical Specs
- Primary Port Speed: 1 Gigabit
- Number of Ports: 12 (10x 1G, 2x SFP)
- PoE Ports / Budget: 8 PoE+ (30W/port), 125W Budget
- IGMP Support: Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support: Yes, up to 12kb
- Acoustics: Fanless or 30dB@25ºC
- Power Consumption:
- With PoE: 163.9W/559.555Btu/hr
- Without PoE: 17.32W/59.13Btu/hr
- Standby without any port connection: 8.53W/29.121Btu/hr
- AVB Support: Yes. Electronic license required, activation key sent via email (AVB4212P-10000S)
| Shipping | |
|---|---|
| Country of origin | TH |
| Master product height | 0.0 |
| Shipping height (in.) | 10.31 |
| Master product width | 0.0 |
| Master carton quantity | 1.0 |
| Harmonize code | 8517.62.0020 |
| Master product length | 0.0 |
| Quantity unit of measure | EA |
| Shipping width | 20.71 |
| UPC code | 606449149531 |
| Shipping depth | 4.61 |
| Shipping weight | 9.84 |
| Master product weight | 0.0 |
