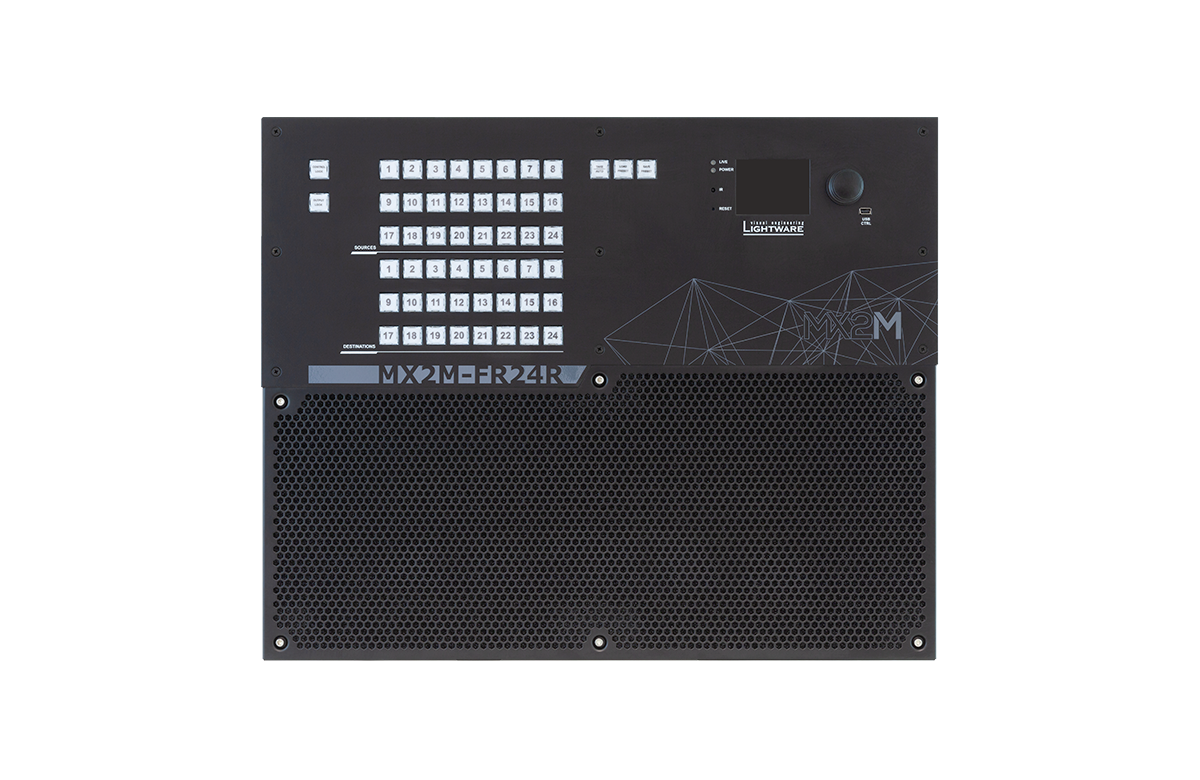

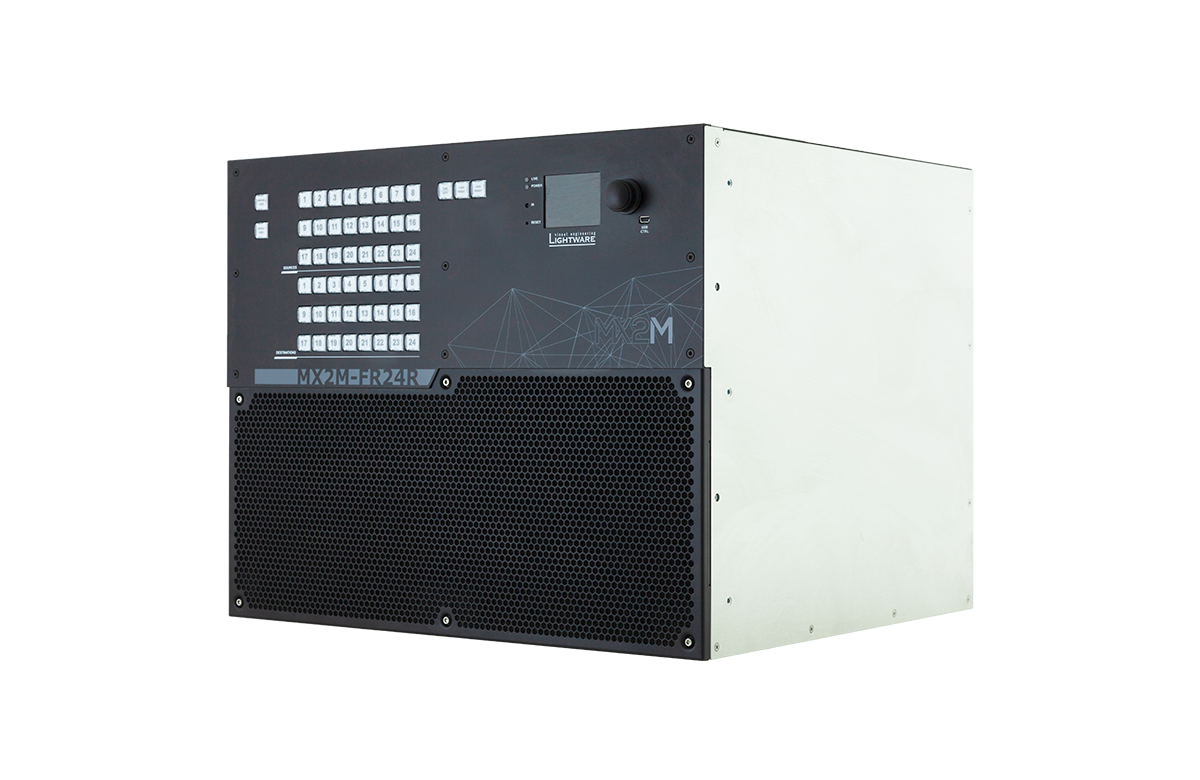

Lightware MX2M-FR24R-RFP 24x24 modular crosspoint router frame with multilayer switching. Full 4K@60Hz with RGB 4:4:4 colorspace. No I/O boards. Power redundancy with 2x PSU supporting PoE remote power. - 91110026

List $28,462.50

Maximize 4K UHD Switching Performance

MX2M-FR24R-RFP is a member of the Lightware MX2 modular matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with 4:4:4 sampling pattern and with downconversion capabilities to 4:2:2, supporting HDCP 1.x and 2.3, 3D, Dolby TrueHD and DTS-HD Master Audio. The non-blocking matrix architecture distributes and switches 24 video signals to 24 outputs, distributed along six 4-port boards respectively per direction.

Customize Your Setup

This versatile and customizable device is suitable for various types of applications, the actual application determining the choice of input and output boards to be included in the frame. It is a perfect choice for installations where a huge number of HDMI 2.0 compliant and other types of input and output video ports are required, including HDMI 2.0, DisplayPort 1.2 and compressed AV-Over-IP standards, as well as extension through fibre.

Features

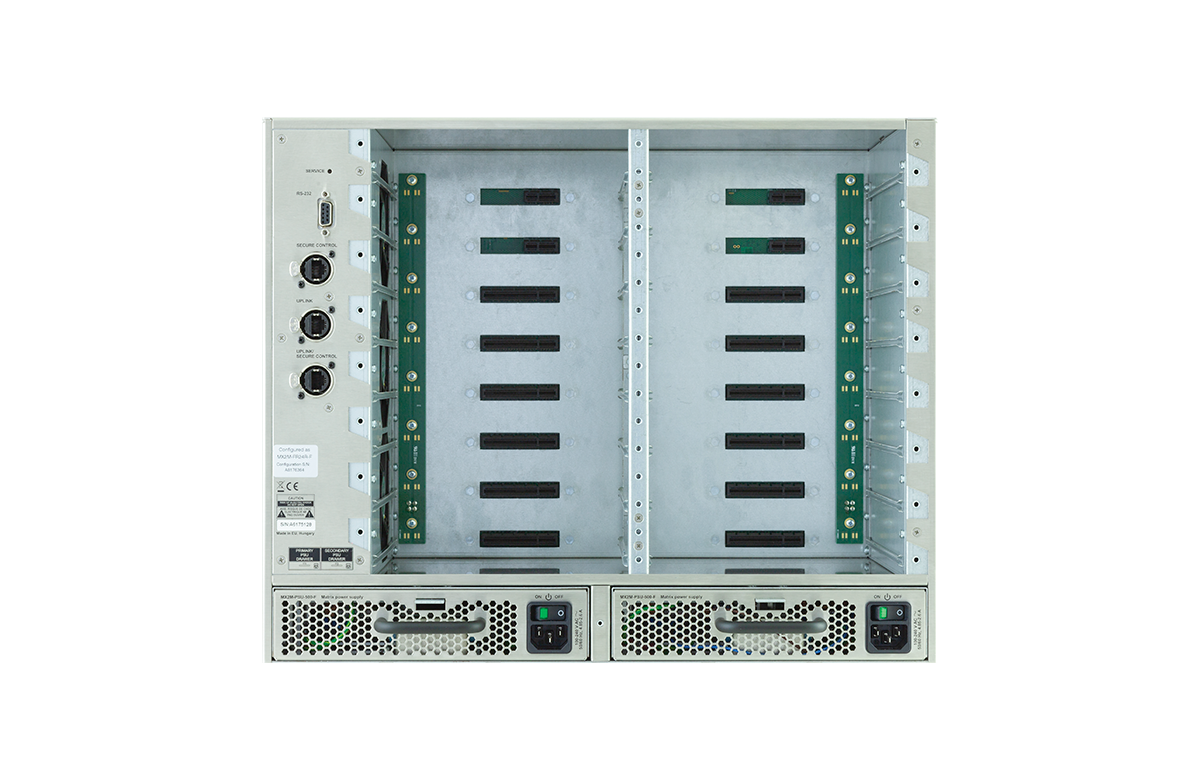

  • Six slots for 4-port video input boards six slots for 4-port video output boards and additional four slots for low-speed) audio, GPIO, etc) IO boards
  • Audio layer for independent audio routing of uncompressed (e.g. 7.1 LPCM) and compressed
  • HBR audio signals received and extracted by the video IO boards or via low-speed audio IO boards
  • IT security features e.g. LDAP and AD integration, SSH, HTTPS for control, etc.
  • Flexible design with support for hot-swappable IO boards
  • Connectivity for breakout boxes that can accommodate additional low-speed IO boards
  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • Device control via Ethernet (TCP/IP)
  • Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
  • HDR and Low Latency Dolby Vision support
  • Redundant power supplies available

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX2M-FR24R-RFP_Product_Brief.pdf
