MX2M-DH-4DP12-IB 4 channel DP 1.2 input board for MX2M frames. Full 4K@60Hz with RGB 4:4:4 colorspace and HDCP 2.2. Pass-through and de-embedding of audio to the Audio Layer. - 91120046

List $4,372.50

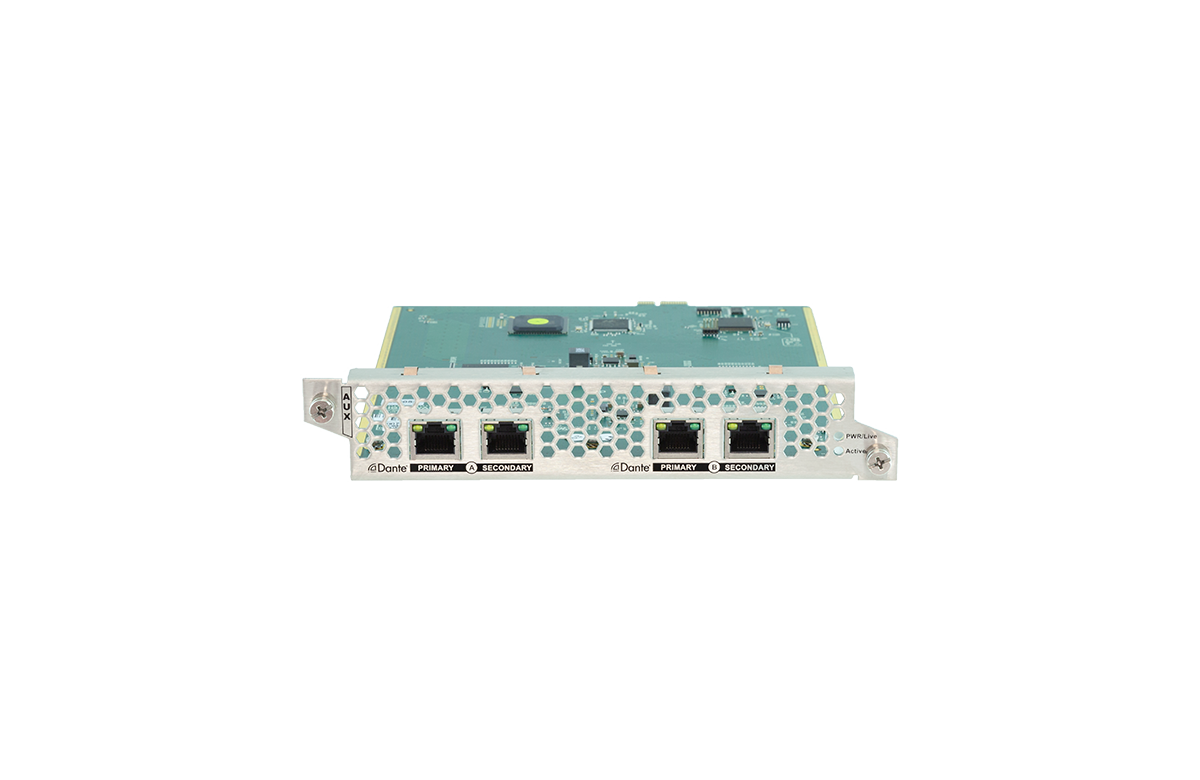

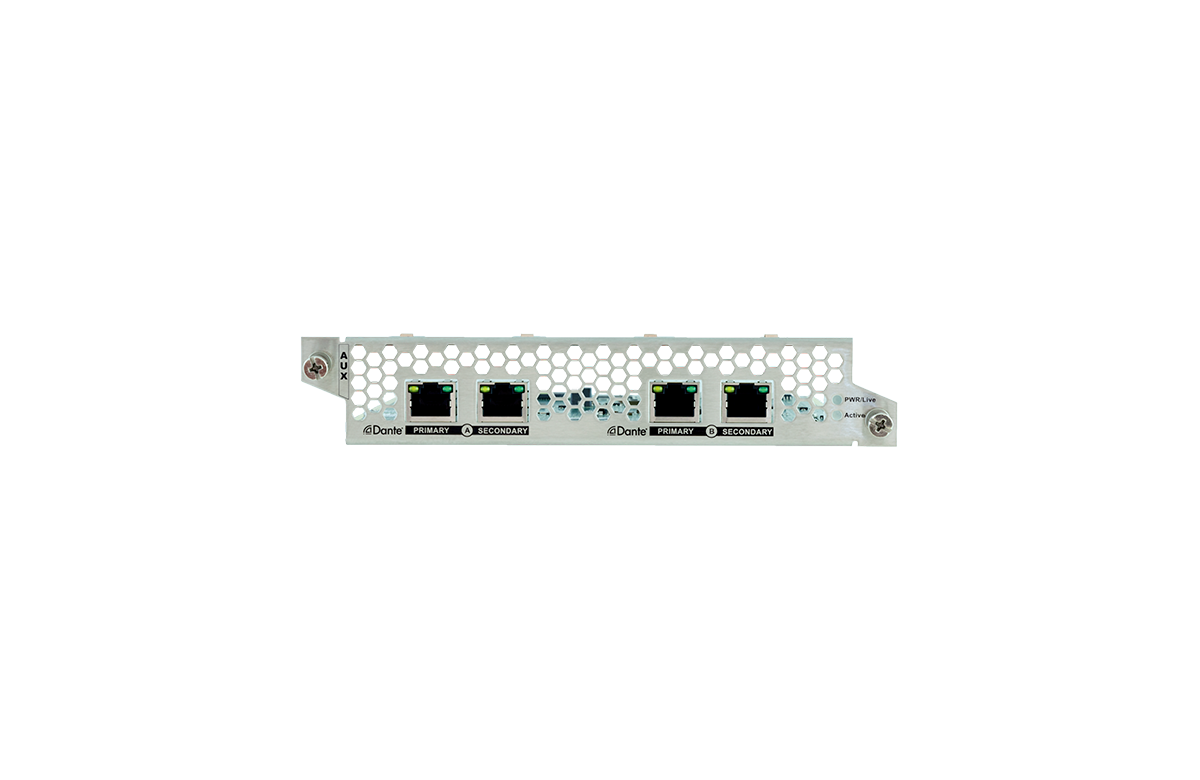

The MX2M-AUX-DANTE-32CH is an input/output board for the MX2M matrix, designed for Dante and AES67 compatibility, enabling the flexible transmission and reception of audio across networks with redundancy options for reliable operation.

Features

  • LPCM audio support
  • In-built high-quality ASRC for sampling frequency conversion (from 24-192 kHz to44.1-96 kHz)
  • Redundant operation with distinct Primary and Secondary 1GbE connectors for each Dante device
  • The two Dante devices can be connected to the same or different Dante domains
  • Simultaneous transmission and reception of 2 x 16 mono audio channels
  • Seen as two Dante devices
  • Dante Audio over IP and AES67 RTP compliant
  • Hot-swap support

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX2M-AUX-DANTE-32CH (1).pdf
