MX2M-4TPX-IB AVX (non switchable) HDMI 2.0 input board - Product - Midwich

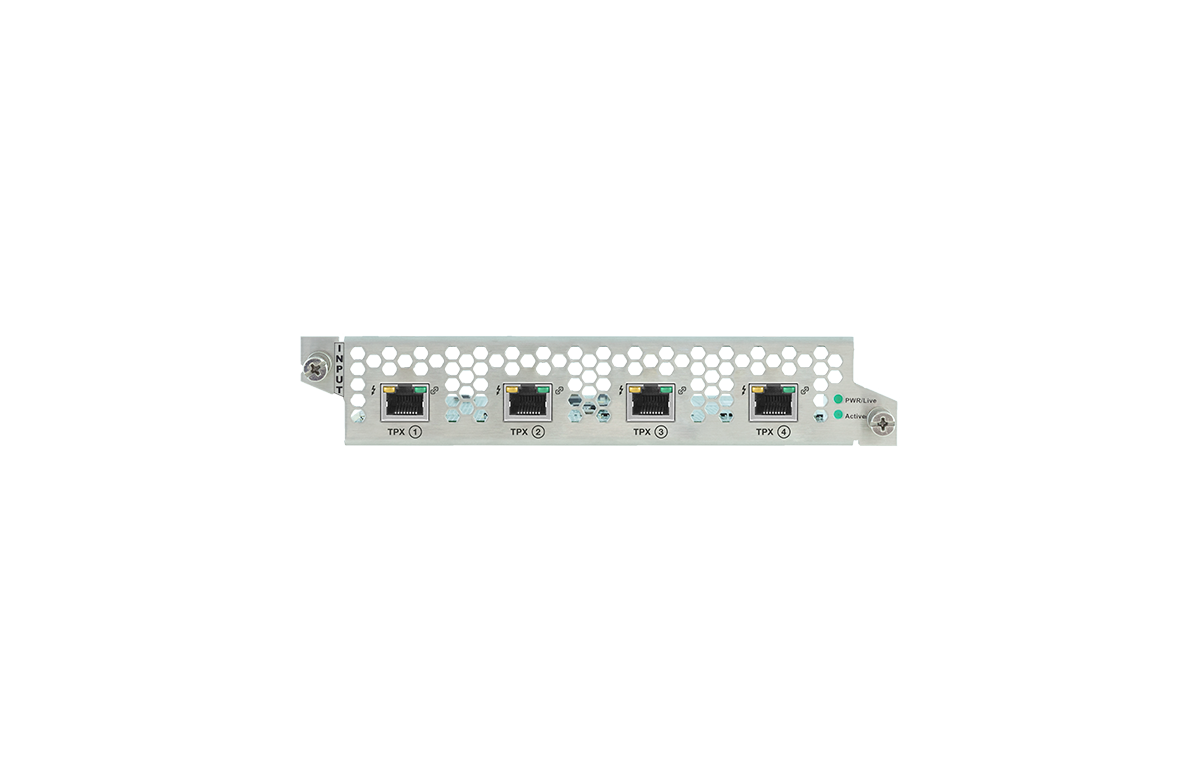

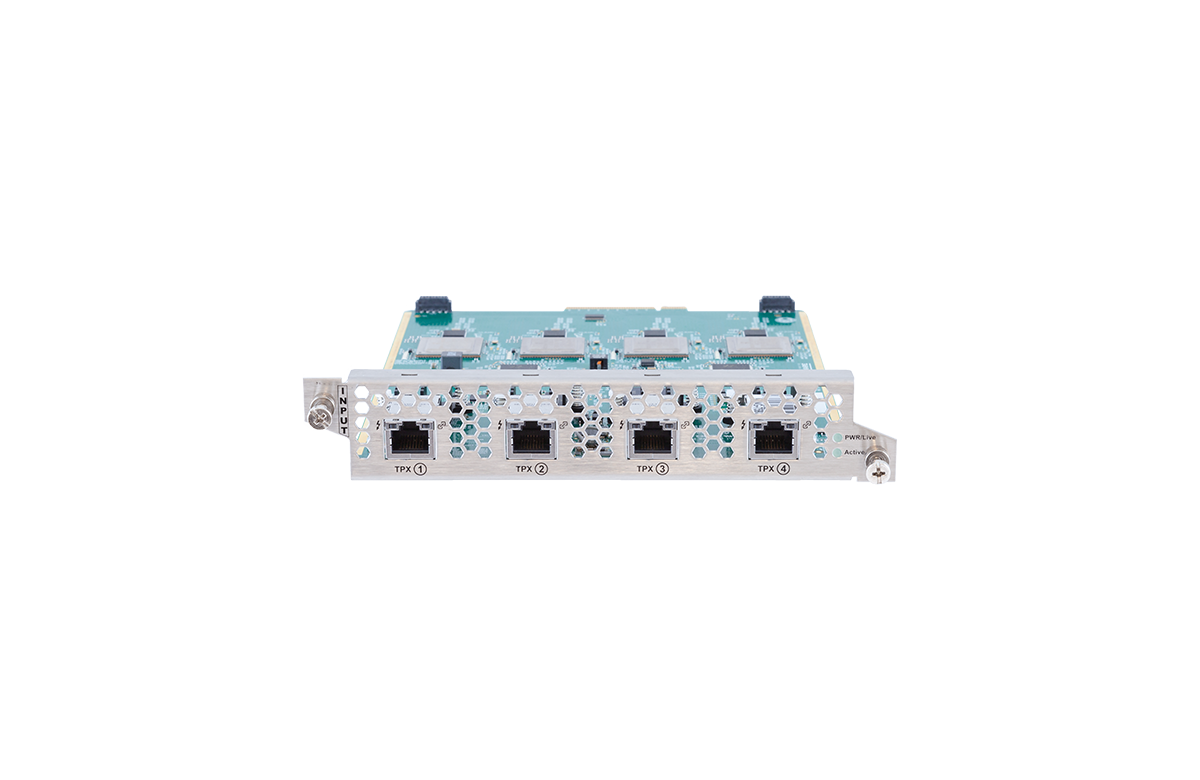

The MX2M-4TPX-IB board is Lightware’s newest development for the MX2M modular matrix family. Featuring four input ports with AVX technology the board is compatible with the full range of Lightware TPX transmitters and SDVoE compliant 3rd party transmitter devices. The AVX technology provides a transparent medium for all HDMI 2.0 video (up to a pixel clock frequency of 597 MHz), audio, Ethernet data and control signals in line with the MX2M multi layer architecture and allows for a cost effective extension solution for up to 100 meters.

Features

• HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
• Hot-swap support
• Pass-through of audio and de-embedding audio from the Audio layer including uncompressed or HBR formats
• Extension distance of up to 100 meters for 4K@60Hz 4:4:4 signals
• HDMI 2.0, HDMI 1.x, and DVI compatible
• Support for low-latency Dolby Vision
• Less than 0.1ms signal latency
• Compatible with TPX extenders and SDVoE based third party products
• Advanced EDID Management
• Command injection on RS-232 and IR ports
• CEC support (command injection)
• Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
• Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
