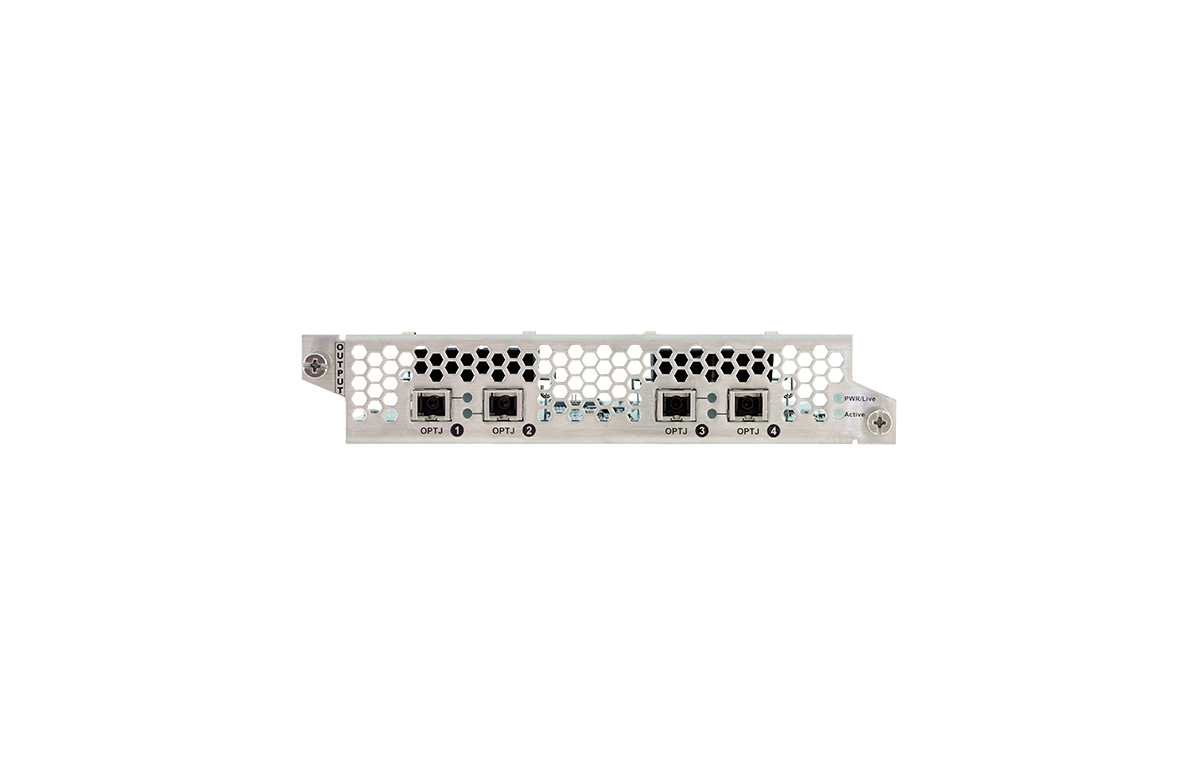

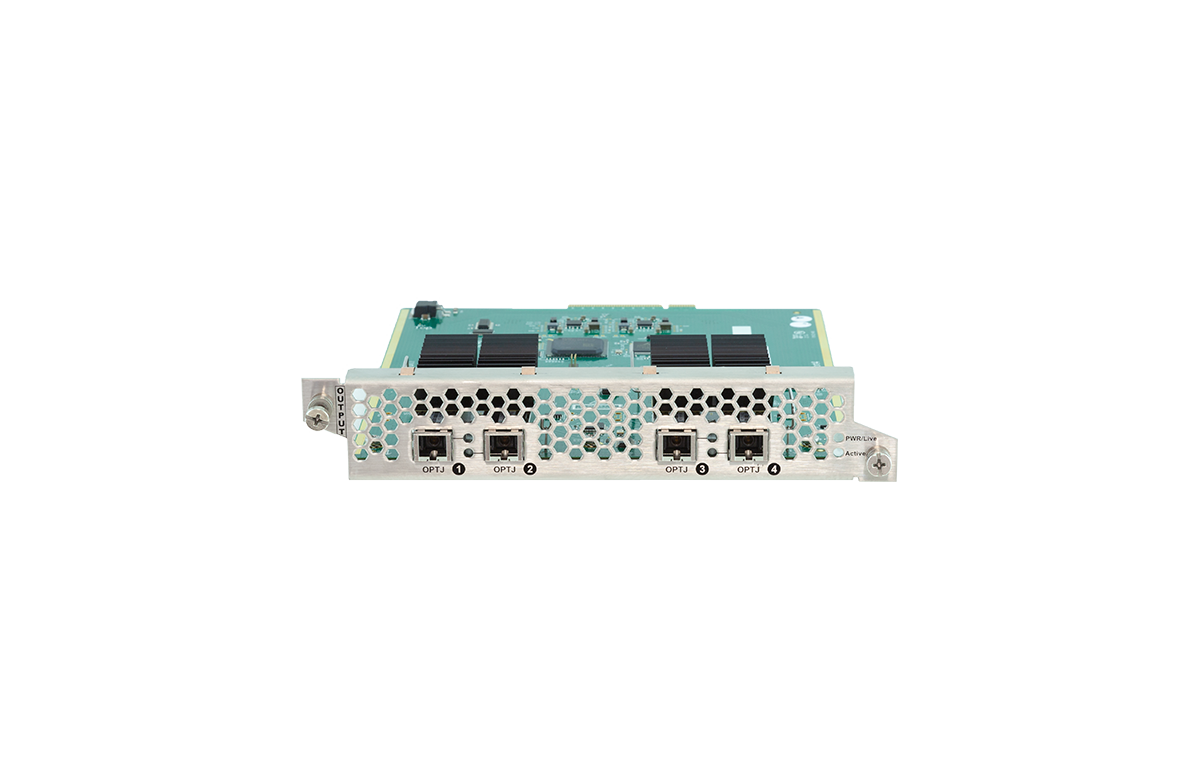

Lightware MX2M-4OPTJ-OB 4 channel multimode fiber output board with SC connector for MX2M frames. Full 4K@60Hz with RGB 4:4:4 colorspace and HDCP 2.2. Compatible with HDMI20-OPTJ-RX90. Pass-through and embedding of audio from the Audio Layer. - 91130054

List $10,873.50

The MX2M-4OPTJ-OB is an HDMI 2.0 output board for the MX2M matrix, providing four optical SC connectors for flexible, long-distance signal transmission and offering features like audio embedding, HDR support, and HDCP management.

Features

  • HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
  • DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4) for the connected source
  • Hot-swap support
  • Extension distance of up to 600 meters for 4K@60Hz 4:4:4 signals and 2500 meters for full HD signals
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • Advanced EDID Management
  • CEC support (command injection)
  • Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • No signal latency, zero frame delay

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX2M-4OPTJ-OB_Product_Brief.pdf
