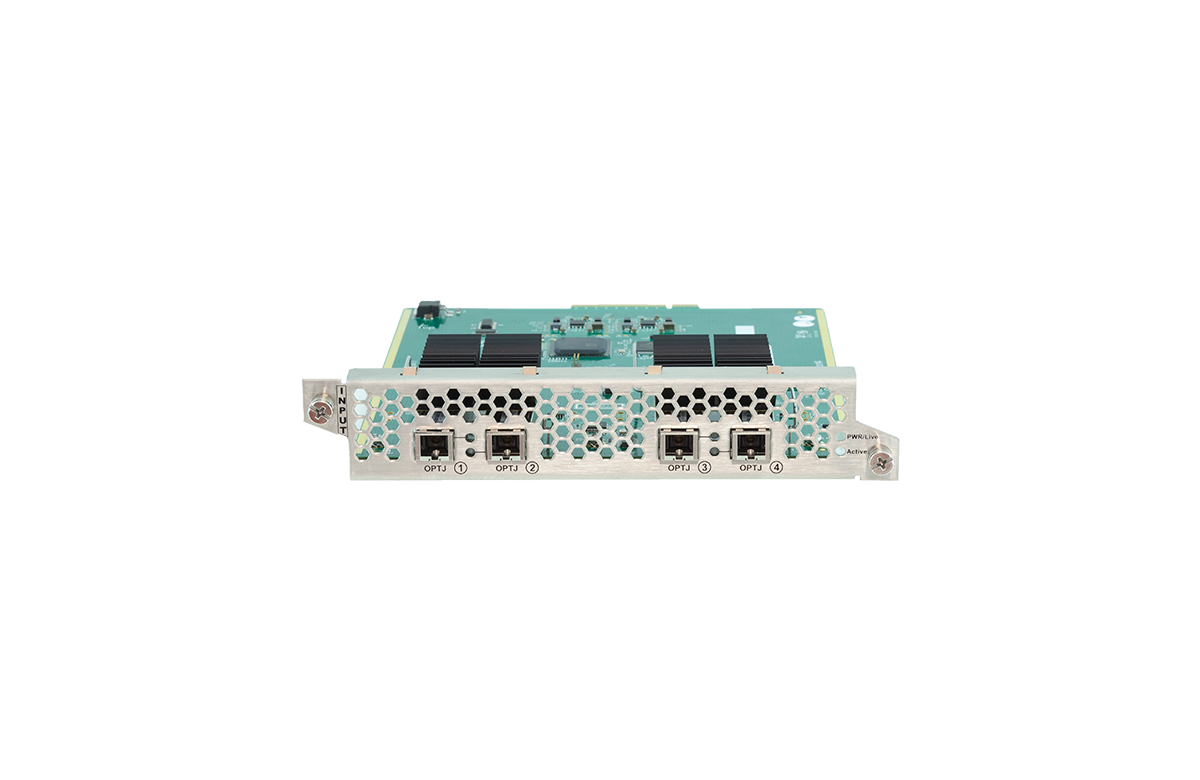

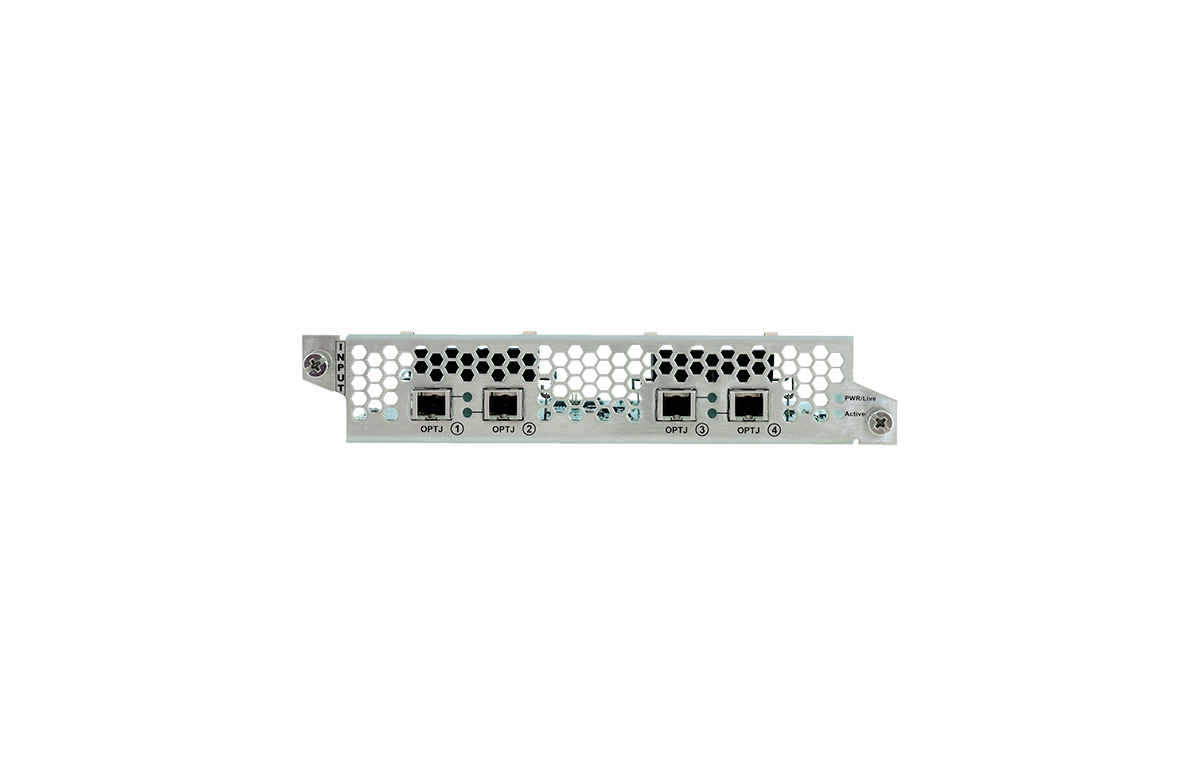

Lightware MX2M-4OPTJ-IB 4 channel multimode fiber input board with SC connector for MX2M frames. Full 4K@60Hz with RGB 4:4:4 colorspace and HDCP 2.2. Compatible with HDMI20-OPTJ-TX90. Pass-through and de-embedding of audio to the Audio Layer. - 91120047

List $10,873.50

The MX2M-4OPTJ-IB is an HDMI 2.0 input board for the MX2M matrix system, featuring four optical SC connectors for long-distance signal transmission, with advanced features like HDCP management and HDR support.

Features

  • HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
  • DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4) for the connected source
  • Pass-through and de-embedding of embedded audio including uncompressed (LPCM, DSD), compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3 Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES)
  • Pass-through and de-embedding of embedded audio also including compressed HBR (Dolby Atmos, Dolby TrueHD, DTS-HD DA) formats
  • Hot-swap support
  • Extension distance of up to 600 meters for 4K@60Hz 4:4:4 signals and 2500 meters for full HD signals
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  •  Advanced EDID Management

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX2M-4OPTJ-IB_Product_Brief.pdf
