Modular HDMI 2.0 Output Board for 4K Applications

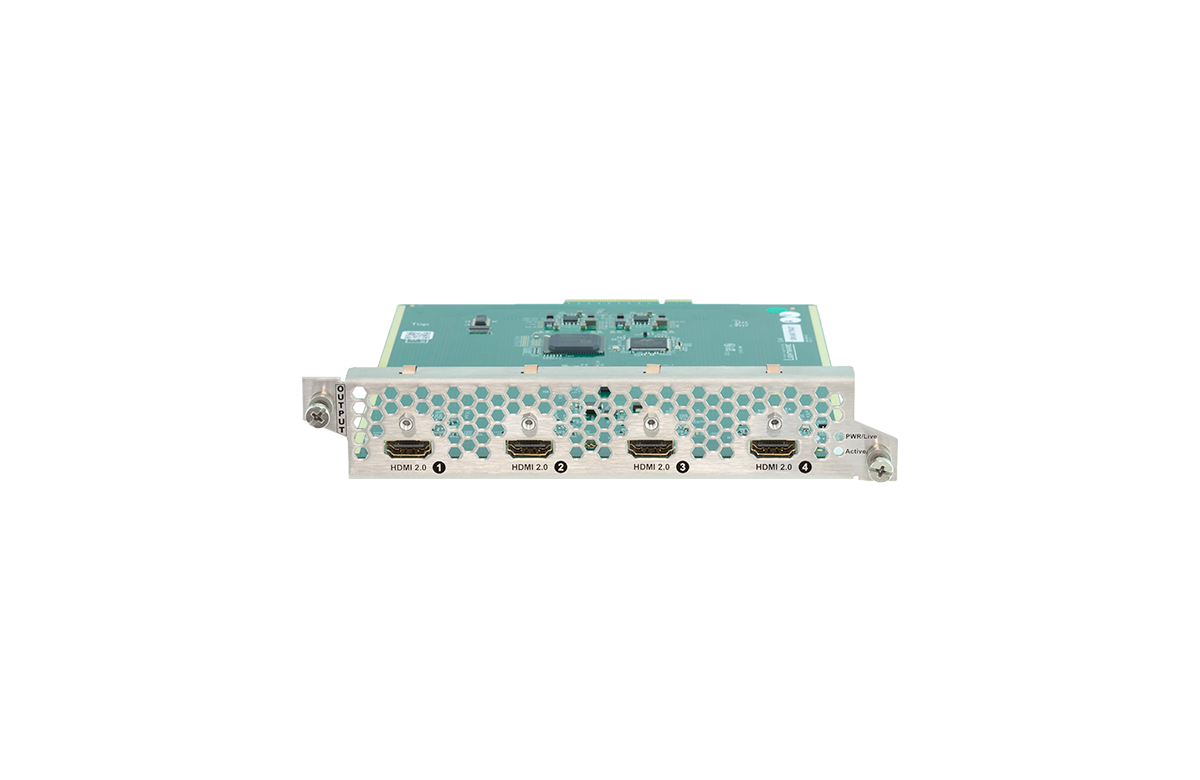

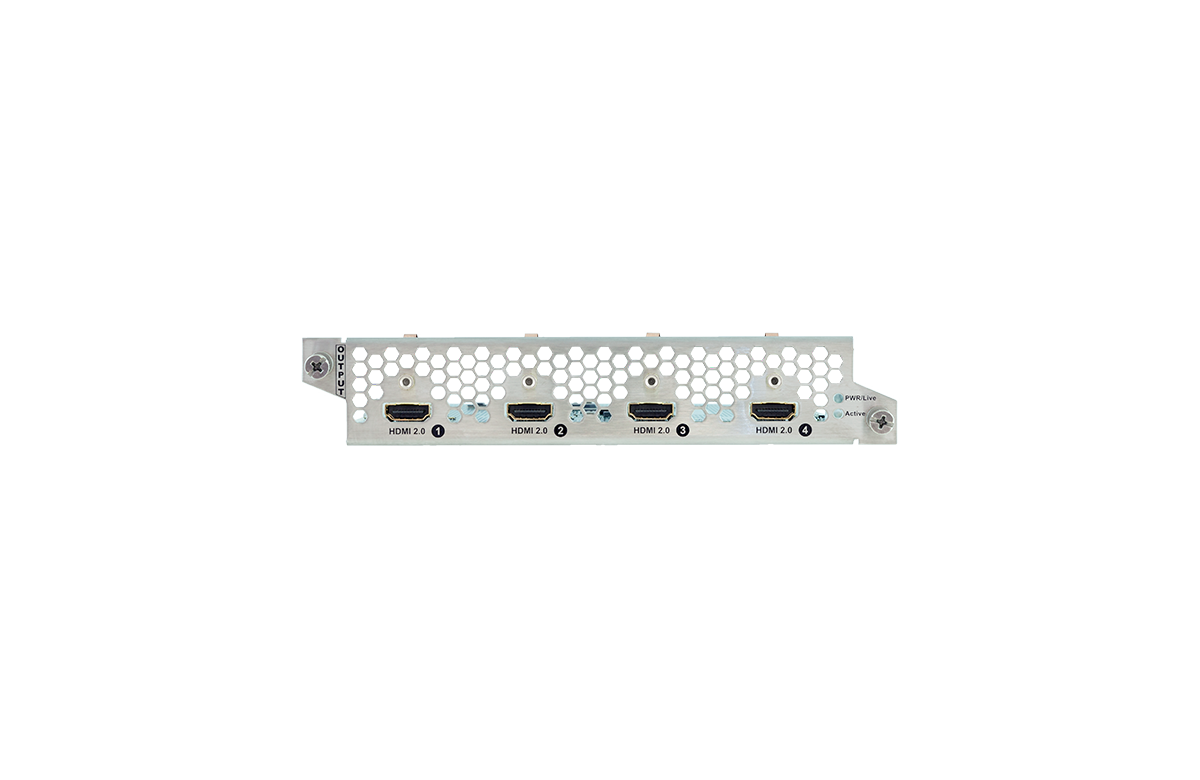

The MX2M-4HDMI20-OB is a HDMI 2.0 compatible output board for the MX2M modular matrix family. The hot-swappable output board has four HDMI connectors of type A, all with flange, allowing easy installation and operation on a wide range of applications where flexibility and versatility are key concerns.

Pass-through of embedded audio including uncompressed (LPCM, DSD), compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES) and HBR (Dolby Atmos, Dolby TrueHD, DTS-HD DA) formats.

Embedding of uncompressed (2-channel LPCM) and compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES) formats from the Audio Layer into the output HDMI stream.

Features

• HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
• DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4) for the connected source
• Hot-swap support
• HDMI 2.0, HDMI 1.x, and DVI compatible
• CEC support (command injection)
• Supports HDMI 4K signal format 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
• Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
• Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
• No signal latency, zero frame delay

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
