Lightware MX2M-4HDMI20-IB 4 channel HDMI 2.0 input board for MX2M frames. Full 4K@60Hz with RGB 4:4:4 colorspace and HDCP 2.2. Pass-through and de-embedding of audio to the Audio Layer. - 91120045

List $3,943.50

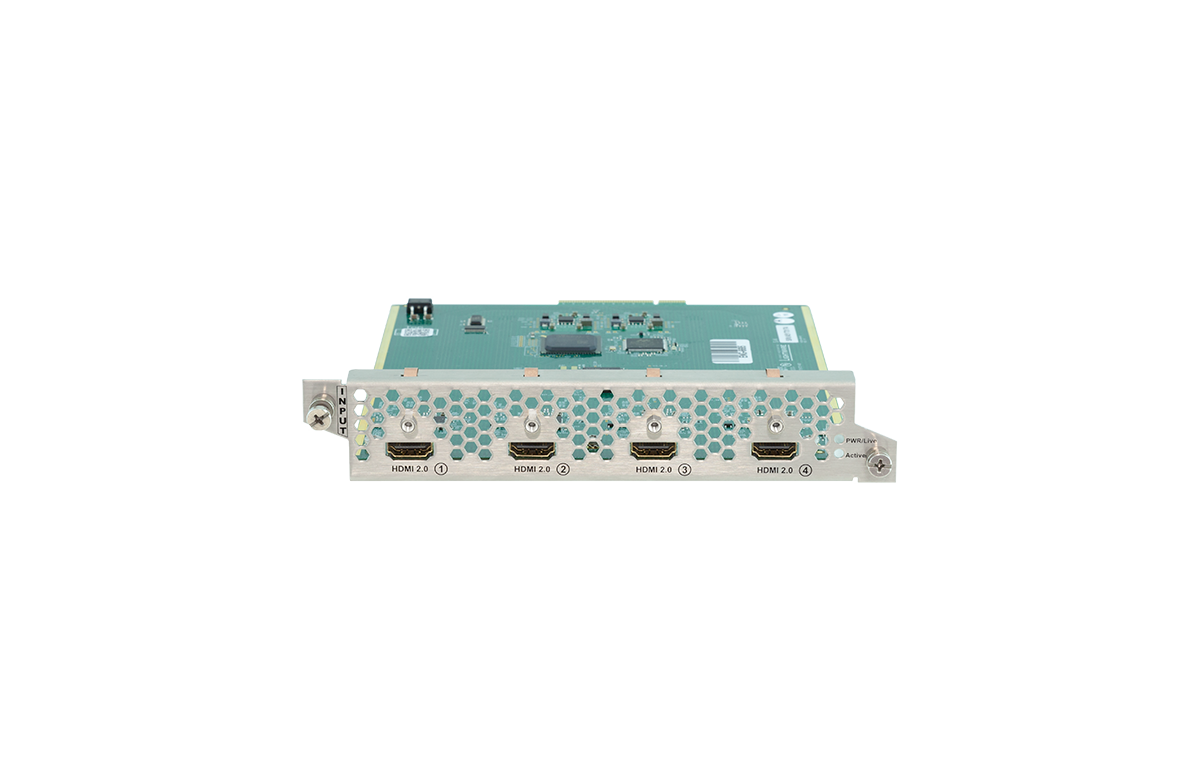

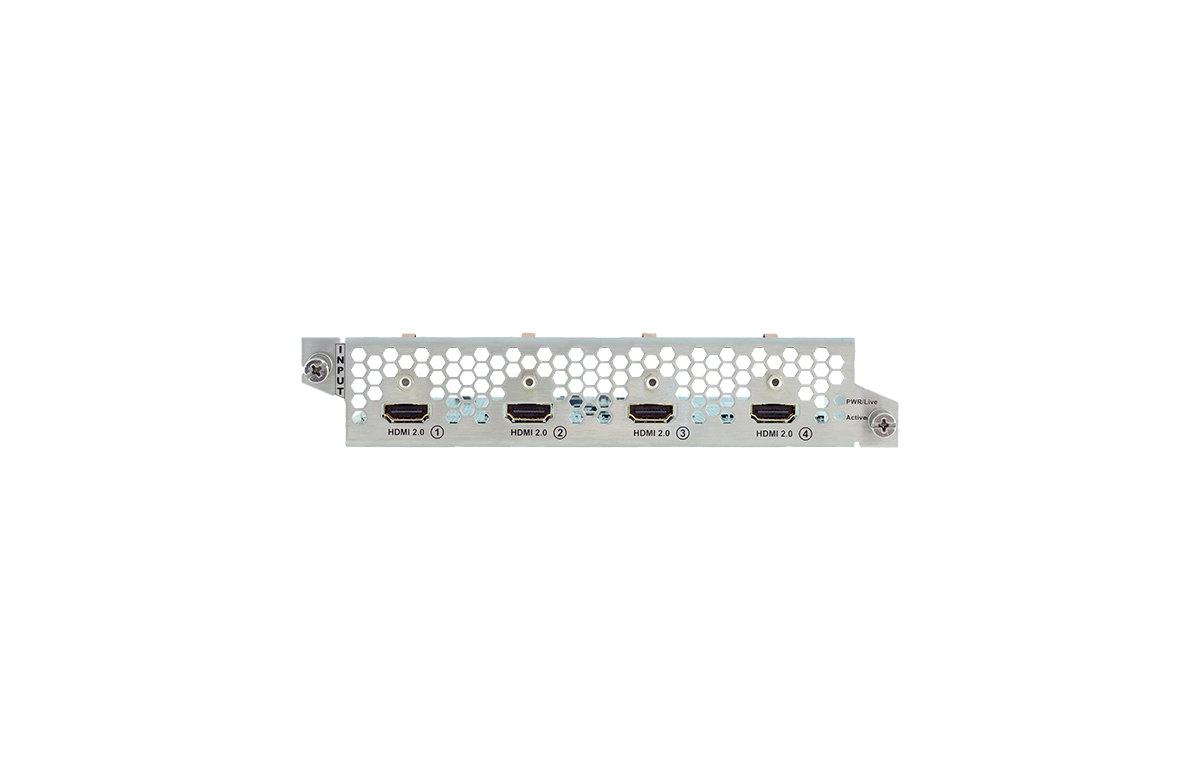

Modular HDMI 2.0 Input Board for 4K Applications

The MX2M-4HDMI20-IB is a HDMI 2.0 compatible input board for the MX2M modular matrix family. The hot-swappable input board has four HDMI connectors of type A, all with flange, allowing easy installation and operation on a wide range of applications where flexibility and versatility are key concerns.

All inputs are HDMI 2.0 compliant and can pass HDMI signals with a pixel clock frequency of up to 597 MHz, allowing signal transmission with a maximum resolution of 4K UHD @ 60Hz 4:4:4.

Features

  • Hot-swap support
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • CEC support (command injection)
  • Supports HDMI 4K signal format 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • No signal latency, zero frame delay

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX2M-4HDMI20-IB_Product_Brief.pdf
