NovaStar MX20 All-in-One LED Display Controller - MX20

List $1,850.00
MAP $1,850.00

Novastar MX20, part of the COEX series, is an all-in-one LED display controller that integrates video processing and video control into one box and offers 2x HDMI 1.3, 1x 3G-SDI input connectors, 6x Ethernet output ports, and 2x 10G optical ports. It can also work with Novastar’s VMP software (Vision Management Platform) to provide a better operation and control experience.



 MX20
 Loading Capacity

 3.9 Million
 Modular Design  x
 Input Card Qty  N/A
 Output Card Qty  N/A
 Chassis Height  1U
INPUTS
 Input Interface

 2×HDMI 1.3
 (IN+LOOP)

 1×3G-SDI
 (IN+LOOP)
 Input Bit Depth  8bit
 10bit
 Max. Input Width  3,840
 Max. Input Height  2,560
OUTPUTS

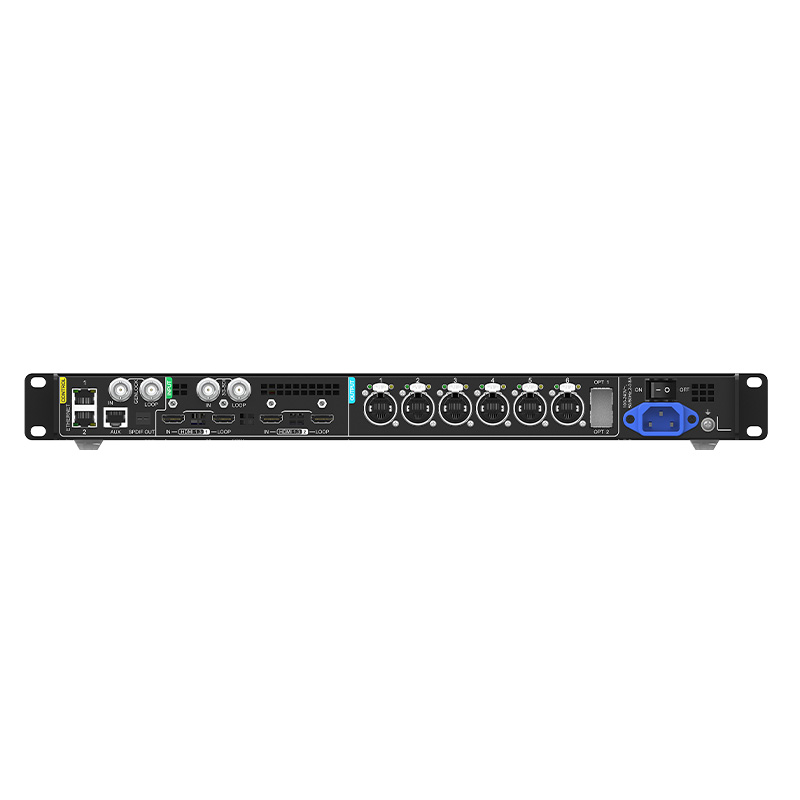

 Output Interface

 6×1G Neutrik

 2×10G OPT
 Layers  3
 Max. Output Width  4,096
 Max. Output Height  4,096
GENLOCK
 Genlock Type  Bi-level
 Tri-level
 Blackburst
Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin CN
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
