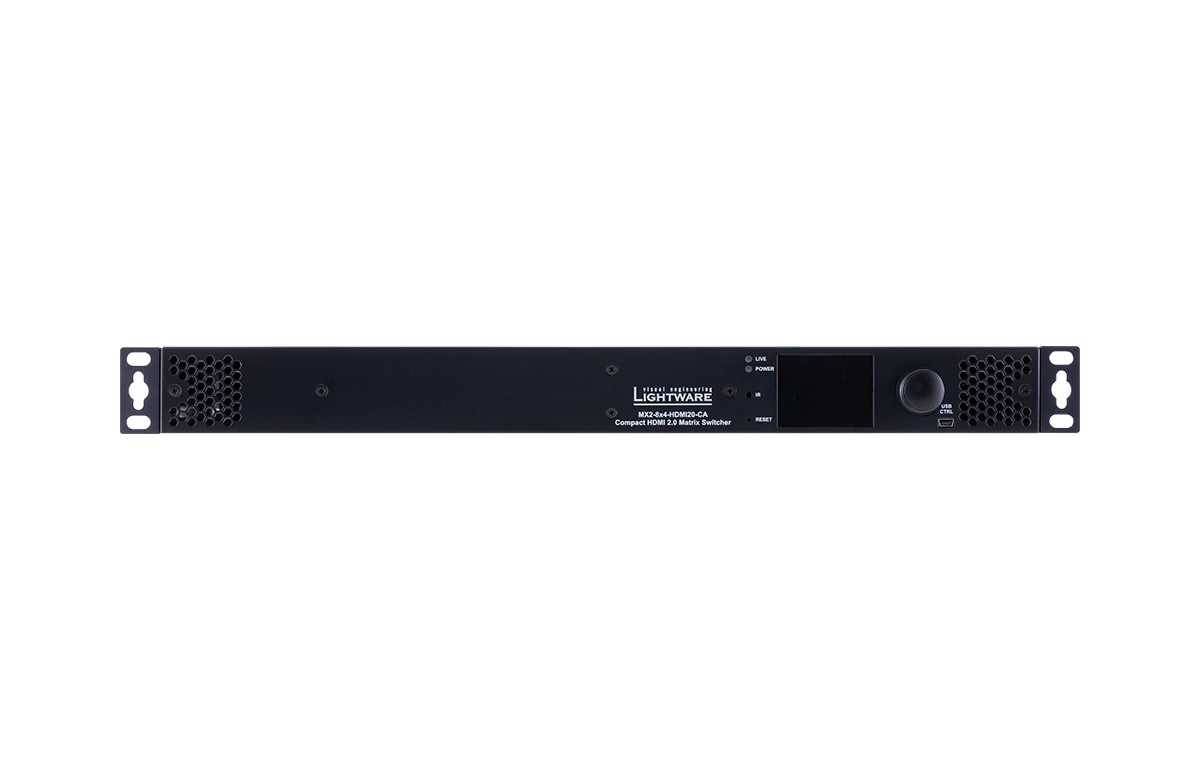

LIghtware MX2-8x4-HDMI20-CA 8 input and 4 output Full 4K HDMI 2.0 and HDCP 2.2 standalone matrix with analog audio ports. 4K@60Hz with RGB 4:4:4 colorspace, 18 Gbit/sec bandwidth. RS-232, Ethernet and USB control options, Pixel Accurate Reclocking, Advanced EDID Management. LCD front panel control - 91310060

List $9,223.50

The MX2-8x4-HDMI20-CA is a HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.

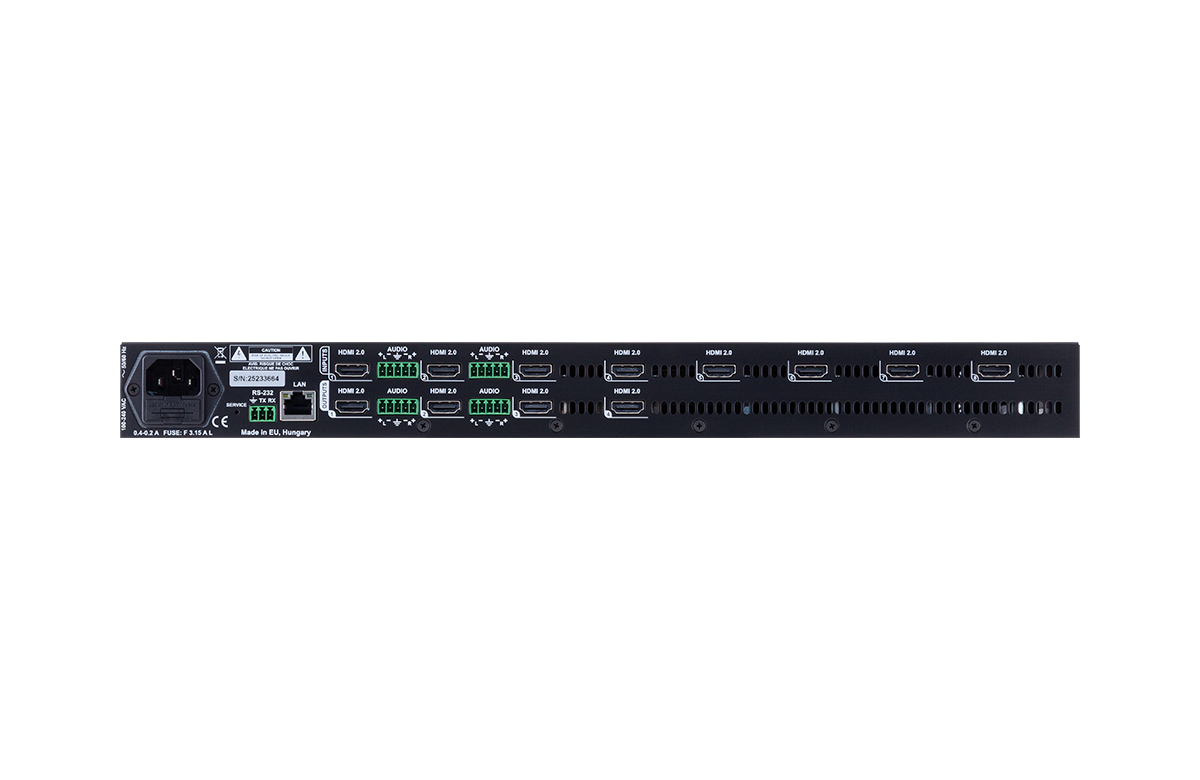

Its compact size and silent design make it particularly suitable for offices and meeting rooms and other corporate collaborative environments. This device is also perfect for home theater enthusiasts who demand the highest quality along with HDMI 2.0 and 4K@60Hz video signals. This standalone product transmit video signals up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio. The two audio connectors at the input ports are for embedding analog audio into the HDMI stream. The two audio connectors next to the output ports can provide de-embedded audio for amplifiers and audio systems; the output volume is adjustable.

These matrix switchers support both HDR and Dolby Vision in the HDMI signal.

Features

  • HDCP 2.3 and HDCP 1.4 compliant with cross conversion capabilities
  • Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDR and Low Latency Dolby Vision support
  • High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
  • Supports HDMI 5K signal formats 5120x2160 HDMI 2.0: 30Hz 4:4:4 or 60Hz 4:2:0

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 1.72
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 17.4
Shipping depth 10.92
Shipping weight 0.0
Master product weight 0.0
MX2-8x4-HDMI20-CA.pdf
