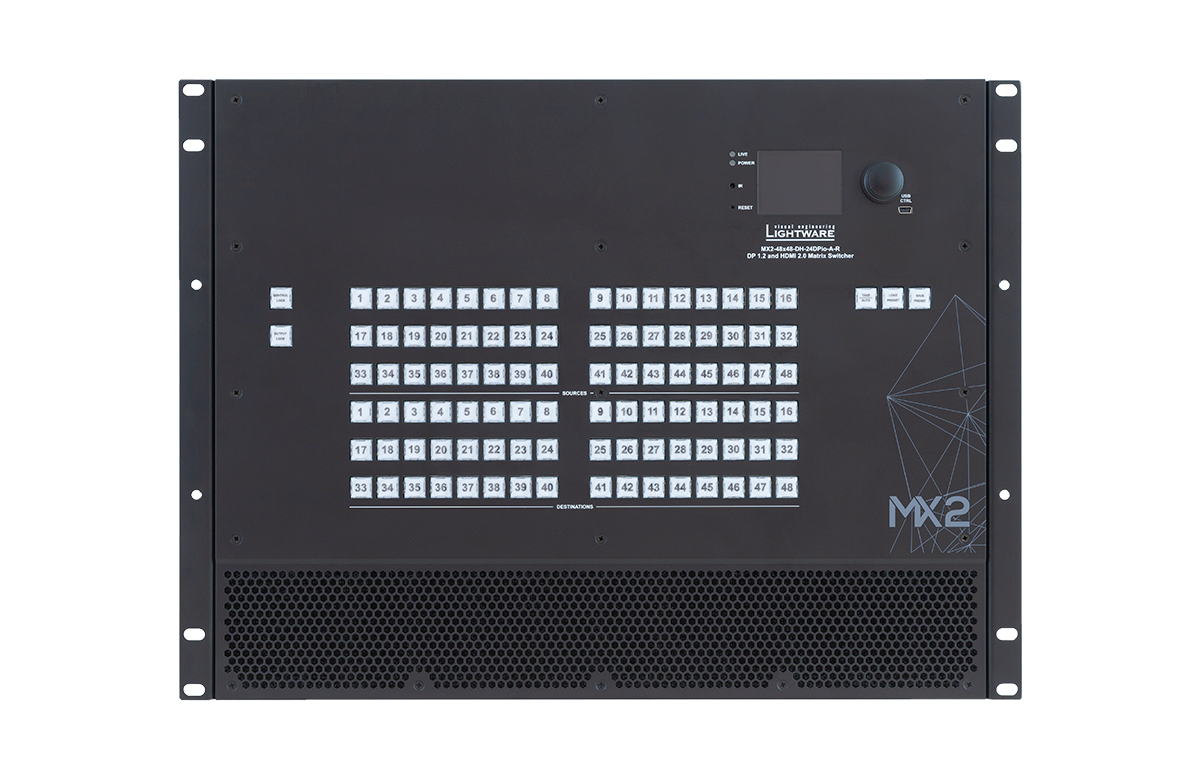

Lightware MX2-48x48-DH-24DPio-A-R 24 DP 1.2 input, 24 HDMI 2.0 input and 24 DP 1.2 output, 24 HDMI 2.0 output Full 4K HDCP 2.2 standalone matrix with analog audio ports and redundant power supply. 4K@60Hz with RGB 4:4:4 colorspace, 18 Gbit/sec bandwidth. RS-232, Ethernet and USB control options, Pixel Accurate Reclocking, Advanced EDID Management - 91310071

List $108,223.50

MX2-48x48-DH-24DPio-A-R supports uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort connectors of the device allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.

Features

  • HDCP 2.3 and HDCP 1.4 compliant with cross conversion capabilities
  • Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
  • HDR and Low Latency Dolby Vision support
  • Redundant power supplies available
  • High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
  • Supports HDMI 5K signal formats 5120x2160 HDMI 2.0: 30Hz 4:4:4 or 60Hz 4:2:0

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
MX2-48x48-DH-24DPio-A-R_1.pdf
