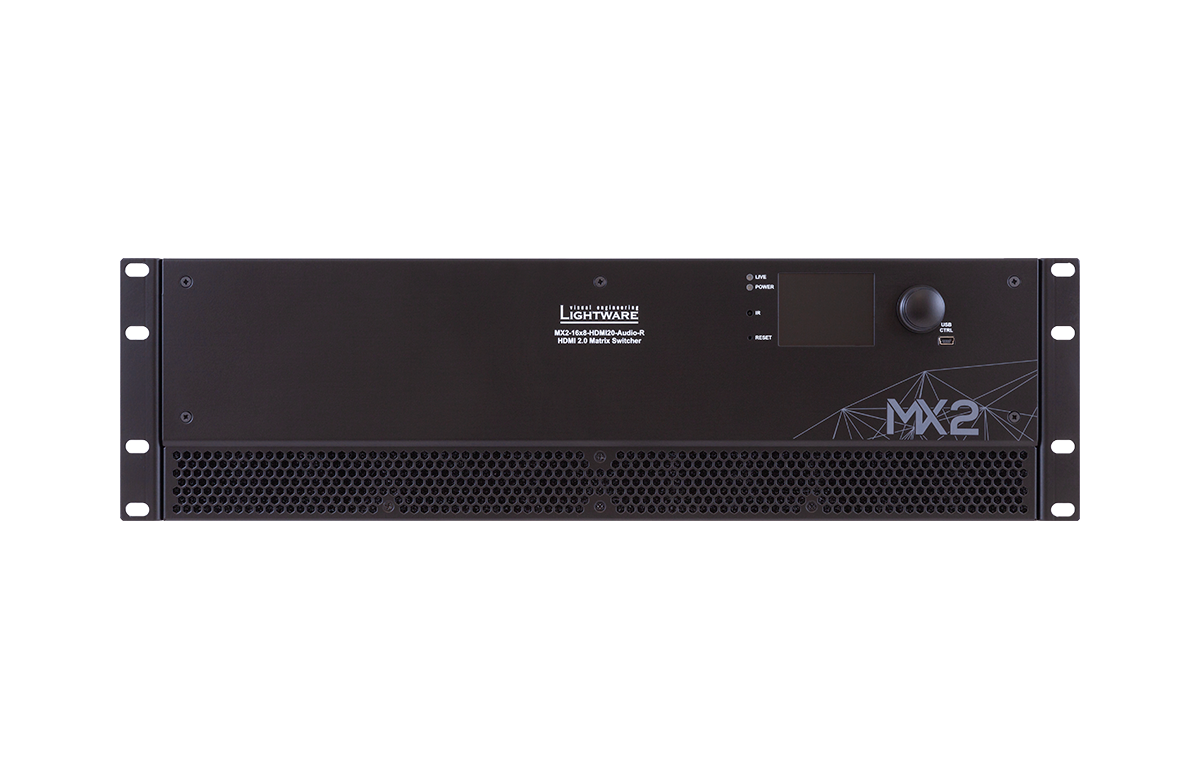

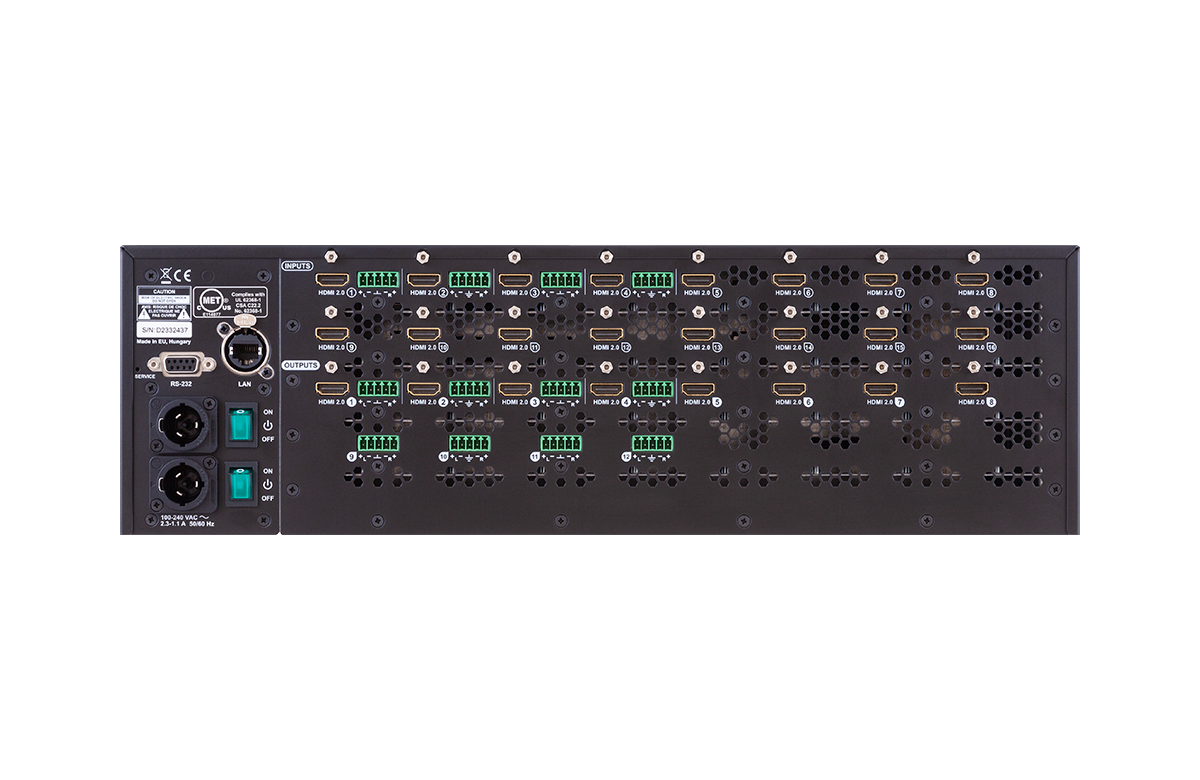

Lightware MX2-16x8-HDMI20-Audio-R16 input and 8 output Full 4K HDMI 2.0 and HDCP 2.2 standalone matrix with audio embedding, deembedding and redundant power supplies. Uncompressed 4K@60Hz with RGB 4:4:4 colorspace, 18 Gbit/sec bandwidth. RS-232, Ethernet and USB control options, Pixel Accurate Reclocking, Advanced EDID Management. LCD front panel control. - 91310083

List $29,683.50

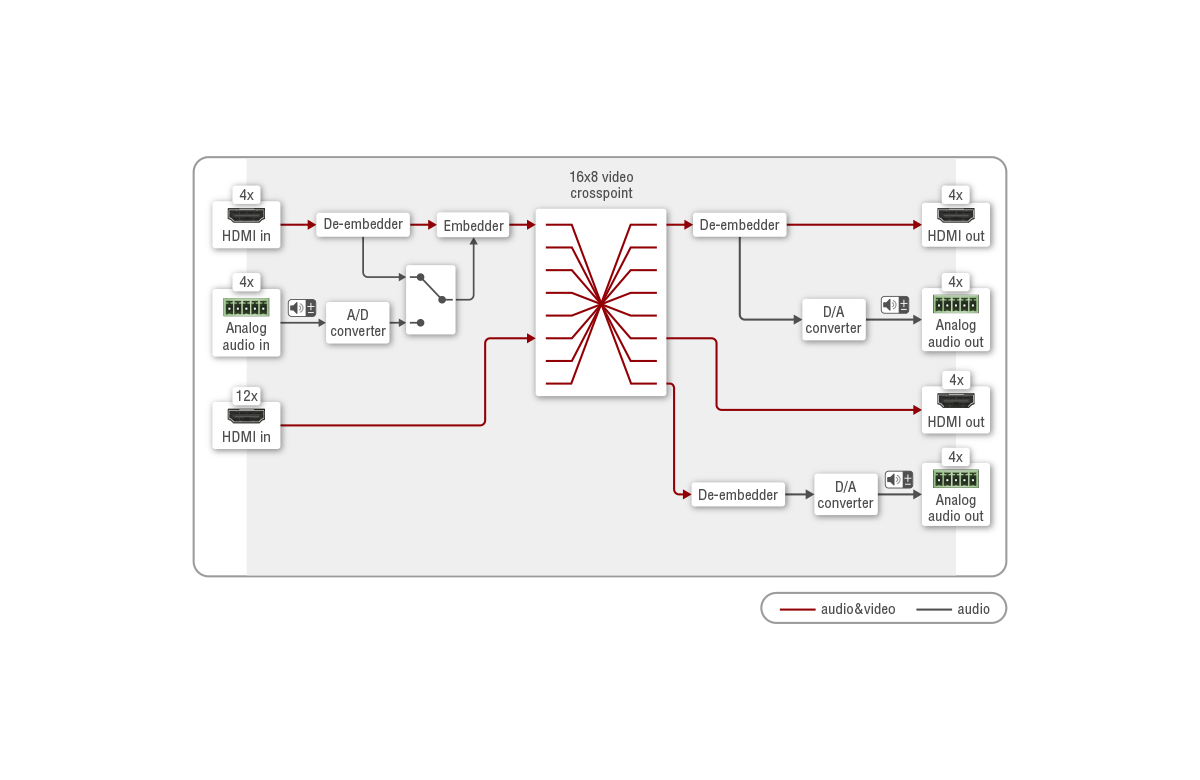

The MX2-16x8-HDMI20-Audio is a member of the HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4 and allows embedding audio to and deembedding audio from the HDMI stream. This device has an R type designation signifying a dual redundant power source with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports.

Features

  • Audio embedding and de-embedding
  • HDCP 2.3 and HDCP 1.4 compliant with cross conversion capabilities
  • Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDR and Low Latency Dolby Vision support
  • High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
  • Supports HDMI 5K signal formats 5120x2160 HDMI 2.0: 30Hz 4:4:4 or 60Hz 4:2:0

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
