MX-TPS2-OB-AP TPS Output Board with PoE Option - Product - Midwich

High-Quality Signal Transmission

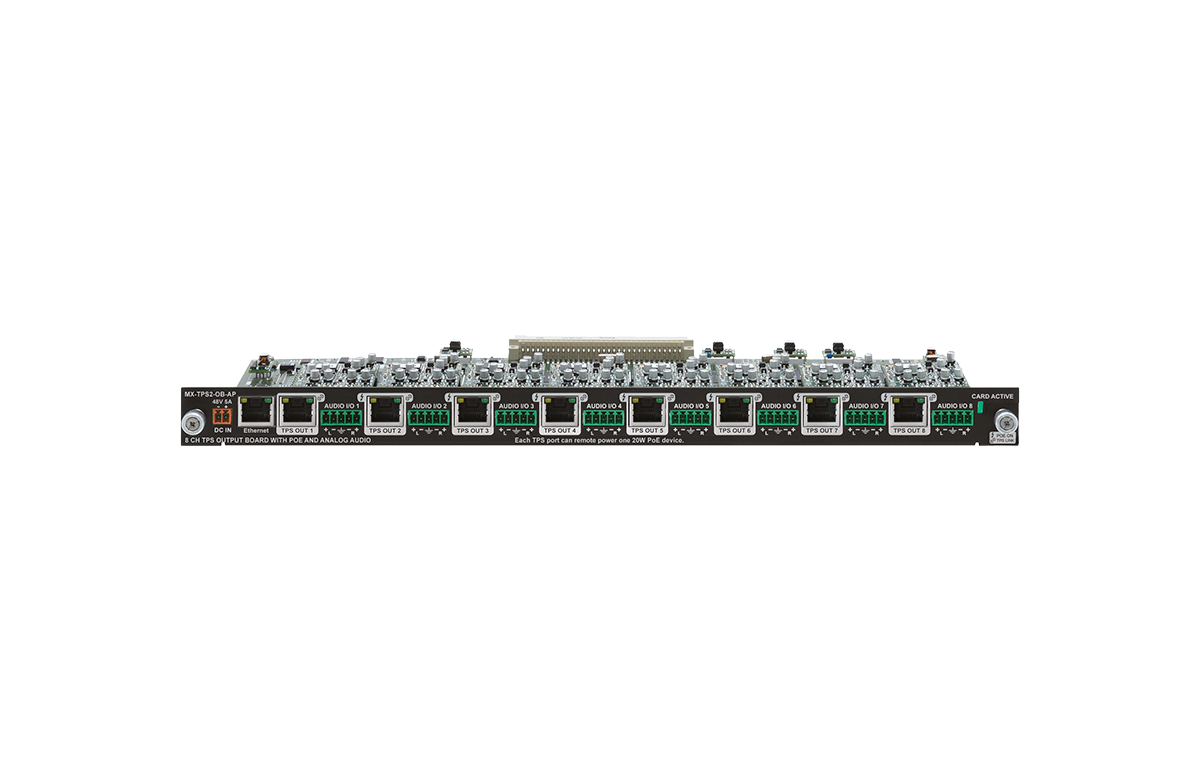

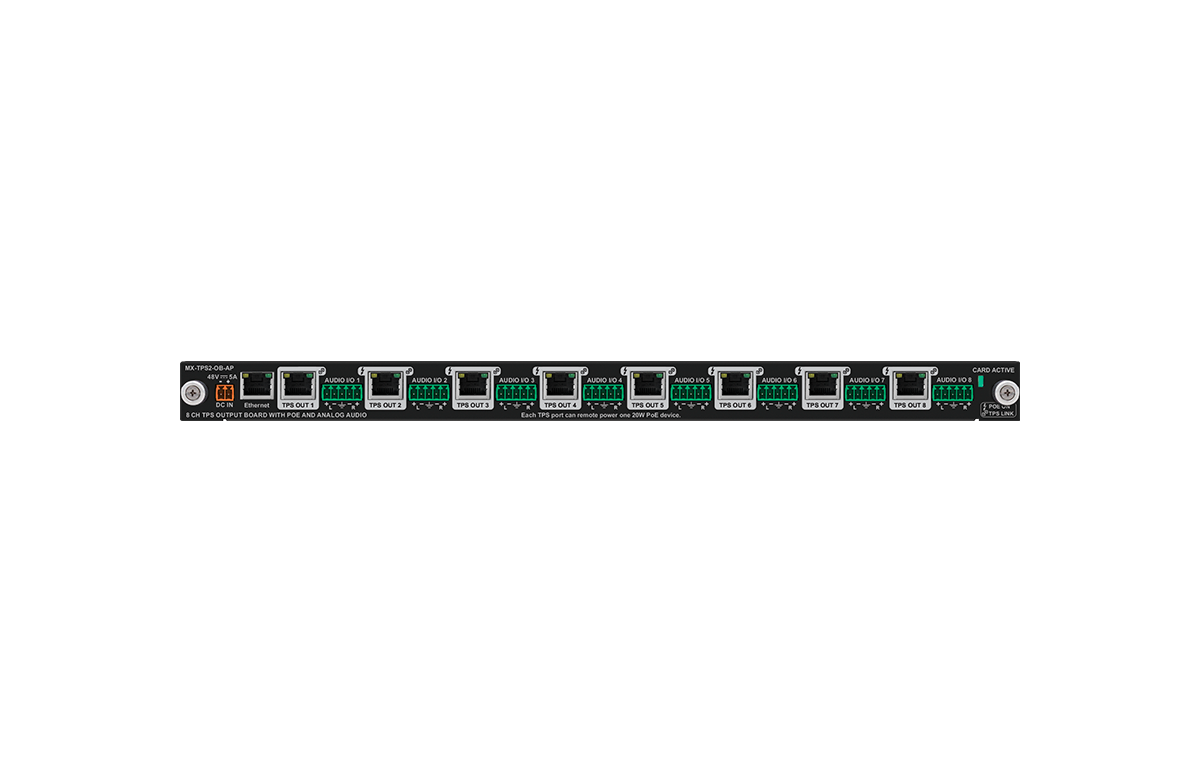

MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseT™ and 170m distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode). Resolutions up to 4K and 48-bit color depth are handled with all standard audio formats as well as 120Hz 3D signals. The board offers bi-directional RS-232 and Ethernet transmission (each board has a 10/100 uplink connector for the Ethernet network connection) and remote powering option for the TPS extenders available with the PoE add-on. The built-in PoE injector function requires the supplied PSU-48vp external power source to be connected directly to the board. The output board is available with audio add-ons: digital S/PDIF or analog stereo connectors are available for advanced audio functions (HDMI embedded audio signals are managed by the board). The MX-TPS2-OB-P without the digital or analog audio option also handles HDMI embedded audio. The board is compatible with deep color, Dolby TrueHD and DTS-HD audio and features PCM audio sample rate conversion. Advanced professional functions such as HDCP enable/disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector are integrated providing professional set-up and operation.

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
