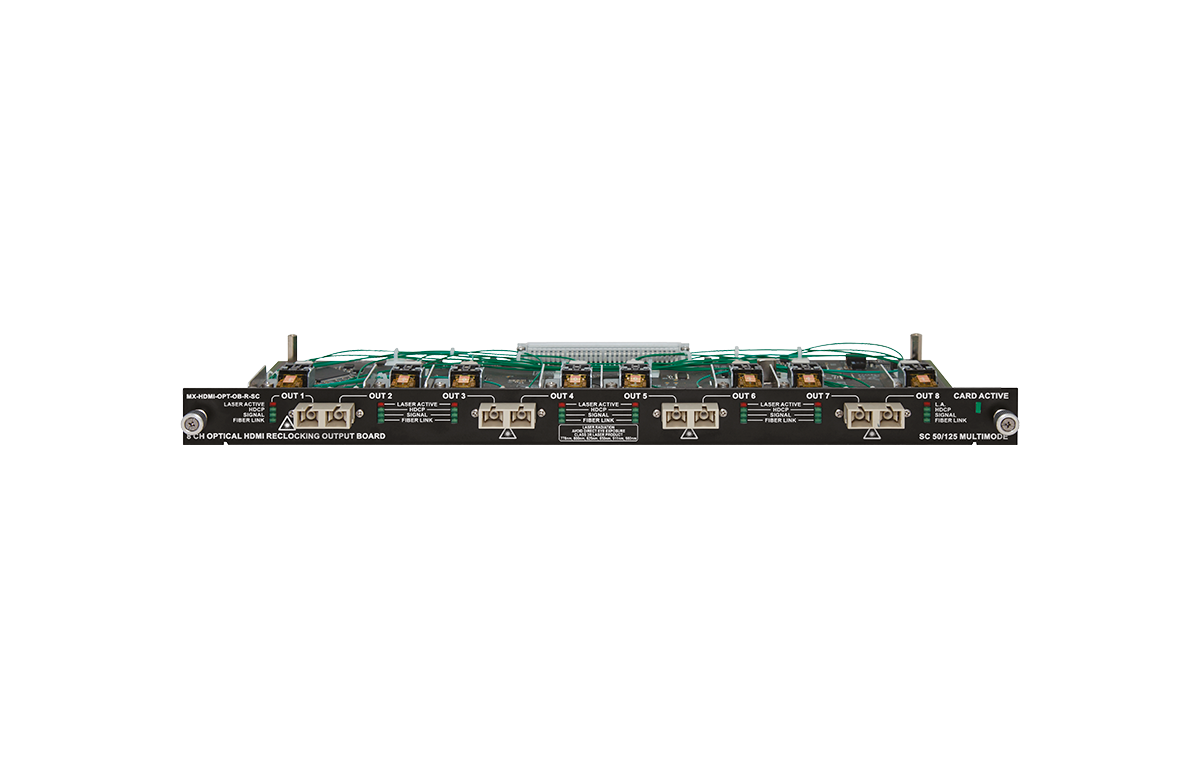

Lightware MX-HDMI-OPT-OB-R-SC HDMI1.4 and HDCP compliant 8 channel fiber optical output board with reclocking and skew compensation. and 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D support, SC connectors, one multimode 50/125 fiber needed per HDMI signal. Supports 7.1 Dolby TrueHD and DTS-HD Master Audio. - 91130032

List $15,988.50

Long-Range HDMI and Audio Over Fiber

MX-HDMI-OPT-OB-R is an eight channel, Multimode optical output board, providing HDMI 1.4, audio and RS-232 extension over a single Multimode fiber up to range of 2500m. Pixel Accurate Reclocking, HDCP compliance and HDMI to DVI conversion are all incorporated. Resolutions up to 4K and 36-bit color depth are handled with all standard audio formats as well as 120Hz 3D signals.

Bi-Directional RS-232 for Remote Control

Along the video and audio extension the unit provides a bi-directional RS-232 option for remote controlling external devices like projectors or professional media players.

Advanced Features and Compatibility

The video signals with the HDCP, EDID handshaking data and the RS-232 channel traffic are performed over one Multimode fiber, utilizing our Single Fiber Technology. The board is compatible with Dolby TrueHD and DTS-HD audio while the proprietary Pixel Accurate Reclocking, Advanced EDID Management, Frame detector and built-in test pattern generator are integrated. The board is available with Neutrik OpticalCON, -LC or -SC connectors.

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX-HDMI-OPT-OB-R-LC-NT-SC_product_brief.pdf
