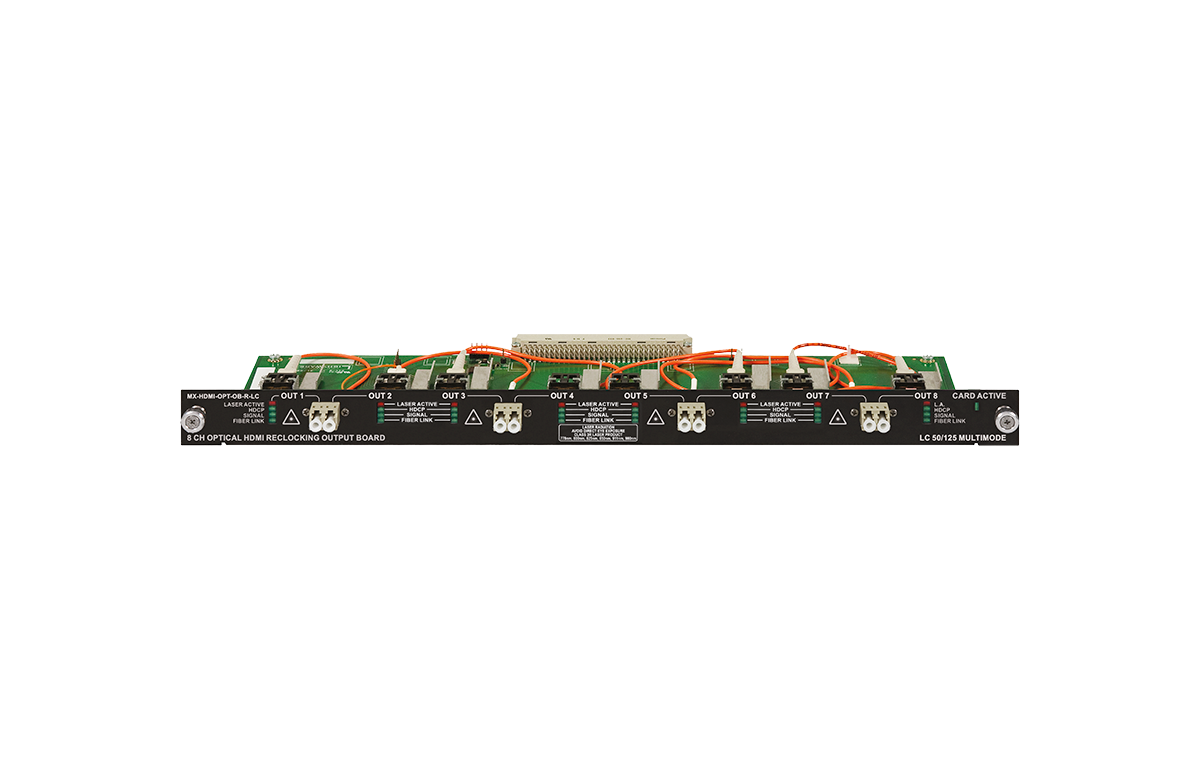

MX-HDMI-OPT-OB-R-LC MX HDMI Optical Output Board with Reclocking - Product - Midwich

Extend Video and Audio Signal Over Long Distances

MX-HDMI-OPT-OB-R is an eight channel, Multimode optical output board, providing HDMI 1.4, audio and RS-232 extension over a single Multimode fiber up to range of 2500m. Pixel Accurate Reclocking, HDCP compliance and HDMI to DVI conversion are all incorporated. Resolutions up to 4K and 36-bit color depth are handled with all standard audio formats as well as 120Hz 3D signals.

Control External Devices Remotely

Along the video and audio extension the unit provides a bi-directional RS-232 option for remote controlling external devices like projectors or professional media players.

Advanced Features for Seamless Integration

The video signals with the HDCP, EDID handshaking data and the RS-232 channel traffic are performed over one Multimode fiber, utilizing our Single Fiber Technology. The board is compatible with Dolby TrueHD and DTS-HD audio while the proprietary Pixel Accurate Reclocking, Advanced EDID Management, Frame detector and built-in test pattern generator are integrated. The board is available with Neutrik OpticalCON, -LC or -SC connectors.

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
