Lightware MX-DVI-4K-IB 8 channel HDMI1.4 deep color input board with DVI connector. All 3D formats and 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) are supported, HDCP compliance. Advanced EDID Management and Frame Detector, Pixel Accurate Reclocking. - 91120044

List $4,933.50

Versatile Input Board for Modular Matrix Routers

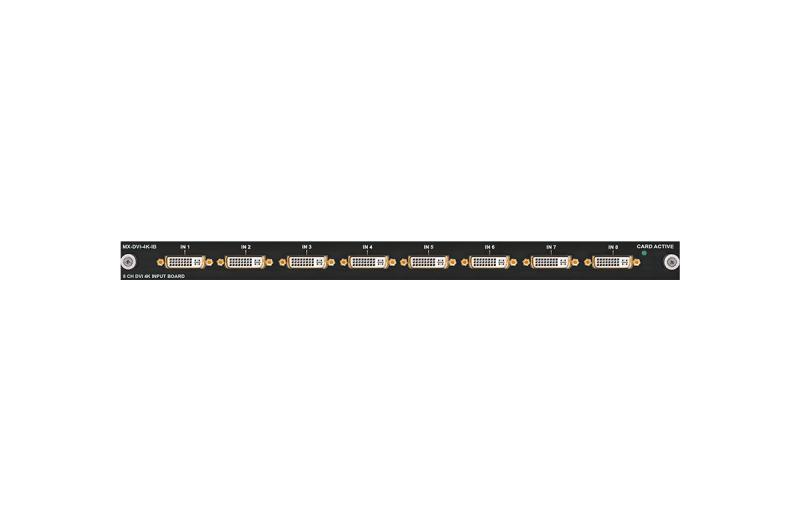

MX‑DVI‑4K‑IB is an eight channel input board for the MX series modular matrix routers with DVI connectors for DVI and HDMI 1.4 signals with HDCP. Fully supporting HDMI 1.4 signals with embedded multichannel audio, this board is designed with screw-lockable DVI connectors for safety and security. The board features 3D compatibility, Pixel Accurate Reclocking, HDMI to DVI conversion, color space conversion (RGB and YUV per output), signal analysis, color range scaling, 12 bit Deep Color, Dolby TrueHD and DTSHD audio compatibility and PCM audio sample rate conversion.

Features

  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @ 60Hz YUV 4:2:0, up to 9 Gbps)

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX-DVI-4K-IB.pdf
