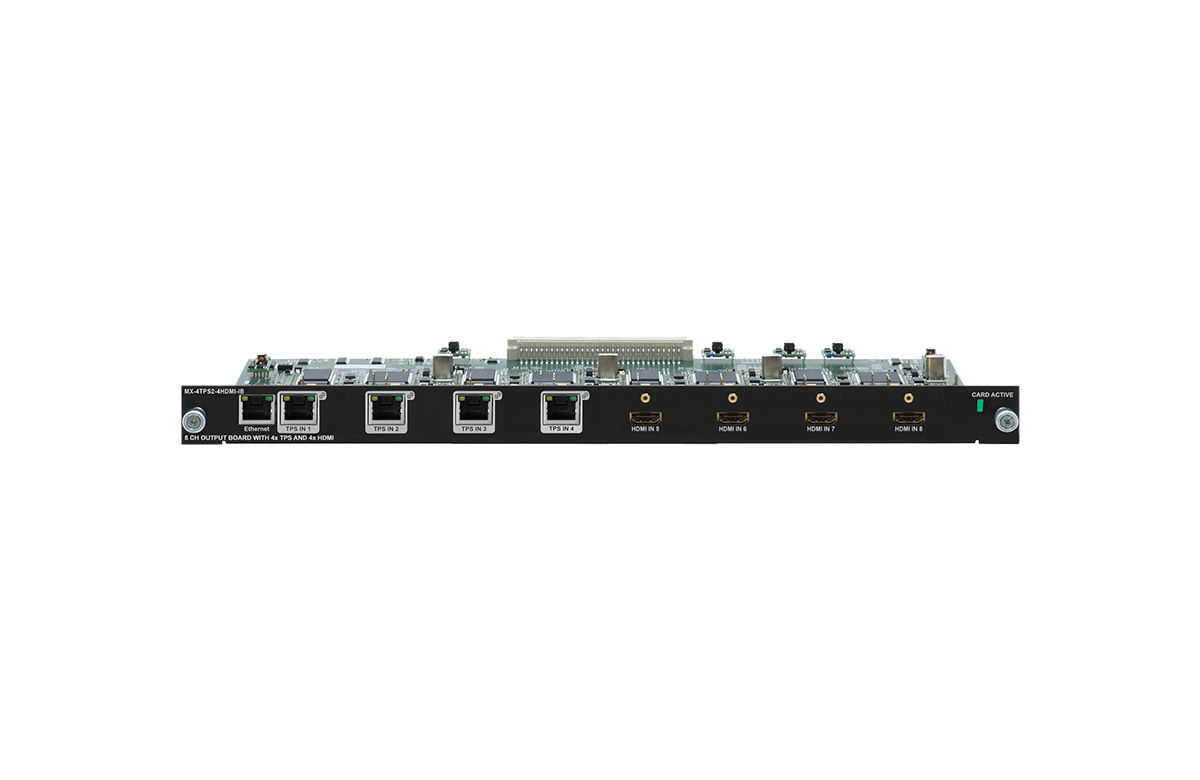

Lightware MX-4TPS2-4HDMI-IB 4 channel HDBaseT and 4 channel HDMI 1.4 input board for HDMI and CATx cable. HDMI + audio+ Ethernet + RS-232 extension up to 170m distance. All 3D formats, and 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) are supported. Advanced EDID Management and Frame Detector, HDCP support; Pixel Accurate Reclocking - 91120041

List $7,408.50

Maximize AV Connectivity and Performance

MX-4TPS2-4HDMI-IB is a combination input board with four HDMI and four HDBaseT™ single CAT inputs providing HDMI 1.4, audio, Ethernet, and RS-232 extension on a single CAT5/6/7 cable up to 120m in HDBaseT™ and 170m distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode). Resolutions up to 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 48-bit color depth are handled with all standard audio formats as well as 120Hz 3D signals. The board offers bi-directional RS-232 and Ethernet transmission (each board has a 10/100 uplink connector for the Ethernet network connection). The input board is available with audio add-ons: digital S/PDIF or analog stereo connectors are available for advanced audio functions (HDMI embedded audio signals are managed by the board).

Enhance Audio Quality and System Flexibility

MX-4TPS2-4HDMI-IB also handles HDMI embedded audio. Advanced professional functions such as HDCP enable/disable mode, Pixel Accurate Reclocking, Advanced EDID Management, and Frame Detector are also integrated. The board is compatible with deep color, Dolby TrueHD, and DTS-HD audio.

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MX-4TPS2-4HDMI-IB_series.pdf
