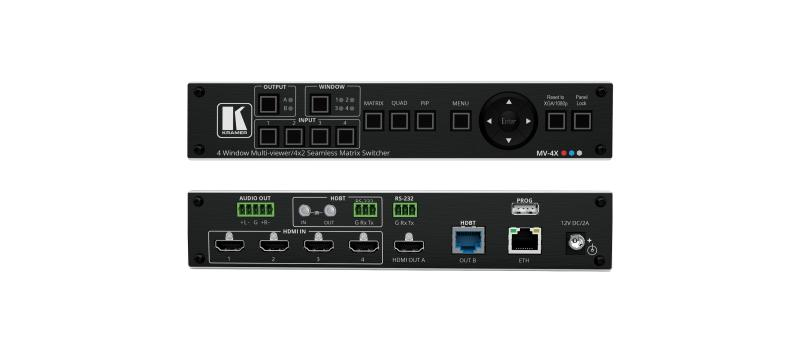

MV−4X is a high−performance HDMI matrix switcher with integrated scaling technology and multi−windowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV−4X is fully compatible with the HDCP 1.x and 2.3 standards.
The product offers 2 outputs – HDMI and HDBT. Users can choose to display any of the four HDMI sources individually, in full screen, or in a variety of multi−window modes that include quad mode, PiP, and PoP on both outputs. Alternatively, MV−4X offers a seamless (zero−time video cut) 4x2 matrix switcher option. The product also supports chroma−keying and includes a logo overlay feature.
You can control and manage the MV−4X, including the input/window routing, position, and size via the front panel OSD buttons, Ethernet (with embedded webpages), and RS−232.
18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs.
Matrix mode operation as well as fully customizable multi–window operation modes.
Supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.
Supports chroma keying and an on–screen logo generator.
