MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multiple zones. Live mixing functions are also supported for applications requiring reinforcement of entertainment, presentations or conferences.
Features:
Easy configuration and design: MP Install app gives you an attractive graphic user environment with an intuitive workflow and controls that make it simple to manage all the inputs and outputs.
Workflow Wizard: Helps the installer keep track of tasks and easily navigate the mixer.
QSC loudspeaker voicings: Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.
Customized control level: Fine tune controls to allow as much or as little as the installation requires on the available MP-M Series control peripherals.
Wired/wireless control options: Use optional MP-MFC wall-mounted controllers with graphic display to control zone source selection, zone output levels, input level selection and scene recall. MP Manage app expands these control options with wireless, more granular controls. In both cases, facility staff may be restricted to only those controls that they are authorized to use.
Complimentary aesthetics: MP-M Series mixers match the appearance aesthetic of the QSC MP-A Series music and paging amplifiers for an installation that looks as good as it sounds.

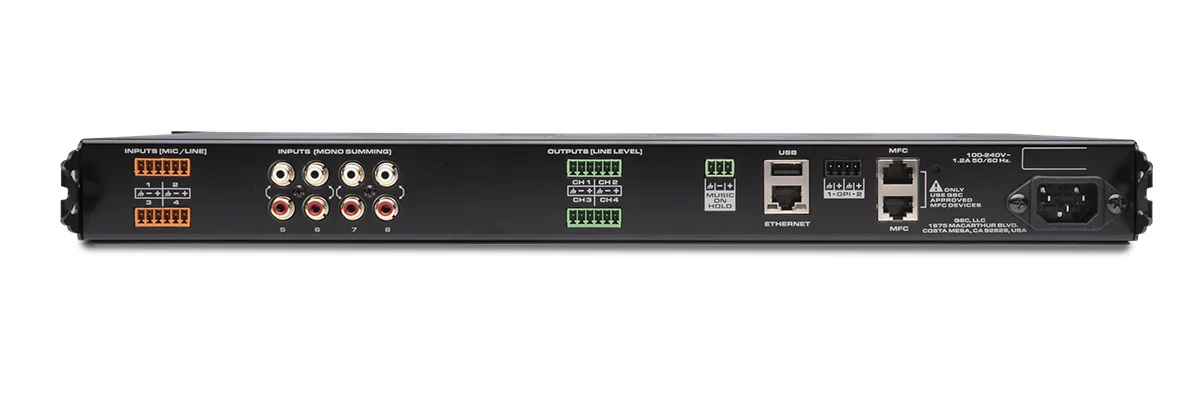

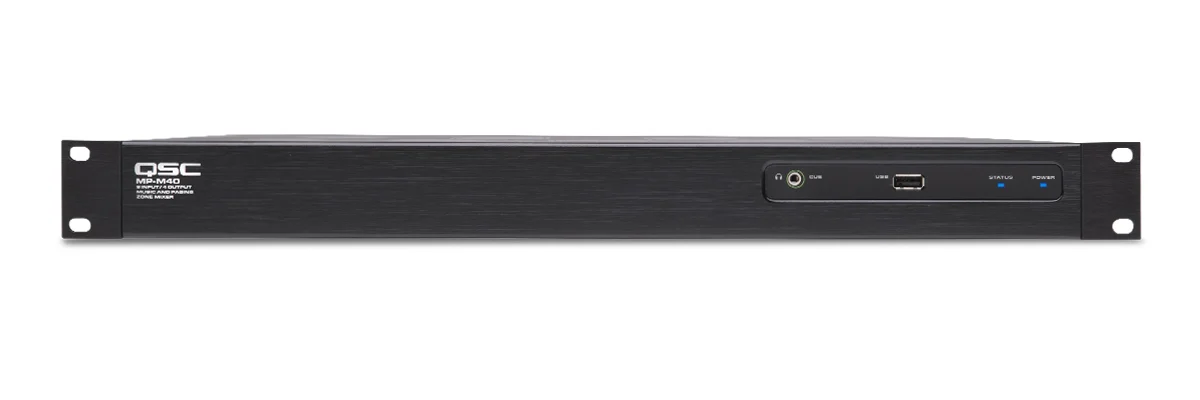

The MP-M40 has four mic/line inputs, four line inputs and four zone outputs. Each line input features dual phono jacks (summed to mono) for easy connection to the sources typically found in business music installations.
MP-M80 | MP-M40
Supports up to 8 MP-MFC multi-function graphic controllers
User control from iOS and Android smartphones
Wireless store-and-forward paging from smartphone
Mixer with automatic microphone mixer (AMM) function
