Modator 2U

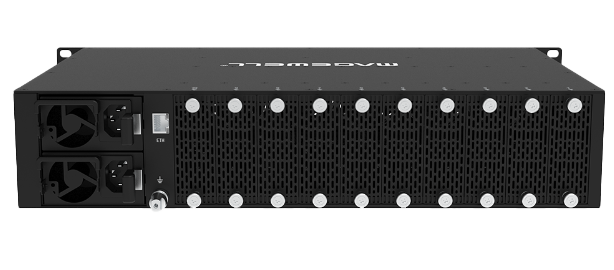

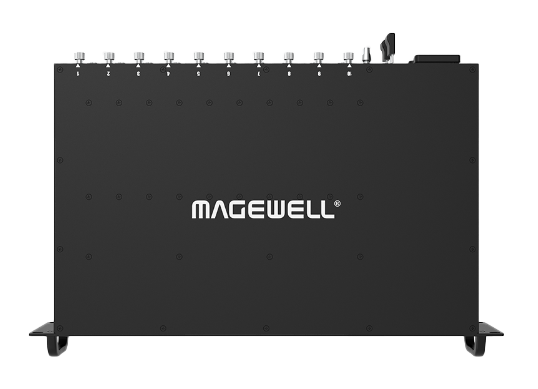

The Modator family brings the reliability and low-latency performance of the Magewell’s standalone encoders and decoders to a high-density, modular, rackmount form factor. The Modator 2U chassis fits standard rack deployments and supports up to 10 Modator modules.

Designed for 24/7 Operation

Featuring dual power supplies and optimized heat dissipation for 24/7 operation, Modator 2U is well-suited to use cases with high reliability requirements.

Independent Encoding & Decoding

Each installed module can work independently to convert high-quality video and audio signals to and from IP streams.

LED Touch Screen

Through the LED touch screen, users can turn the chassis on or off; view the status of the chassis and each installed module; and configure network settings.

Specifications and Features

Interfaces

• 10* Modator slots supporting hot swap of Magewell modules
• 1* RJ45 1000Mbps Ethernet port
• 1* USB Type-C port for configuration

Power and Power Consumption

• Hot-swappable dual power supply
• AC: 100-240V, 7-3.5A, 60/50Hz
• Maximum power consumption of the chassis: 200W
• Maximum power consumption of each slot: 20W
• Different power cords: ELE00039 (US), ELE00040 (UK), ELE00041 (EU, KR), ELE00042 (AU), ELE00043 (JP)

Others

• Touchscreen dimension: 91mm x 81mm
• Browser-based web user interface for the chassis and modules information
• HTTP-based APIs for custom integration
• 1-year warranty
• Form factor: 482mm (L) x 275mm (W) x 88mm (H)

MFG PART # B52200000T
