Lightware MMX4x2-HDMI-USB20-L 4x2 HDMI1.4 matrix switcher with USB 2.0 host switching and advanced control functions. Supports 4x USB 2.0 devices and host peripherals. All 3D formats, and 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) are supported. Audio embedding and de-embedding. Built-in Event Manager, command injection, Autoselect & priority modes, EDID Management. Infra and CEC command sending/receiving with Event Manager; advanced RS-232 control. - 91310076

List $3,217.50

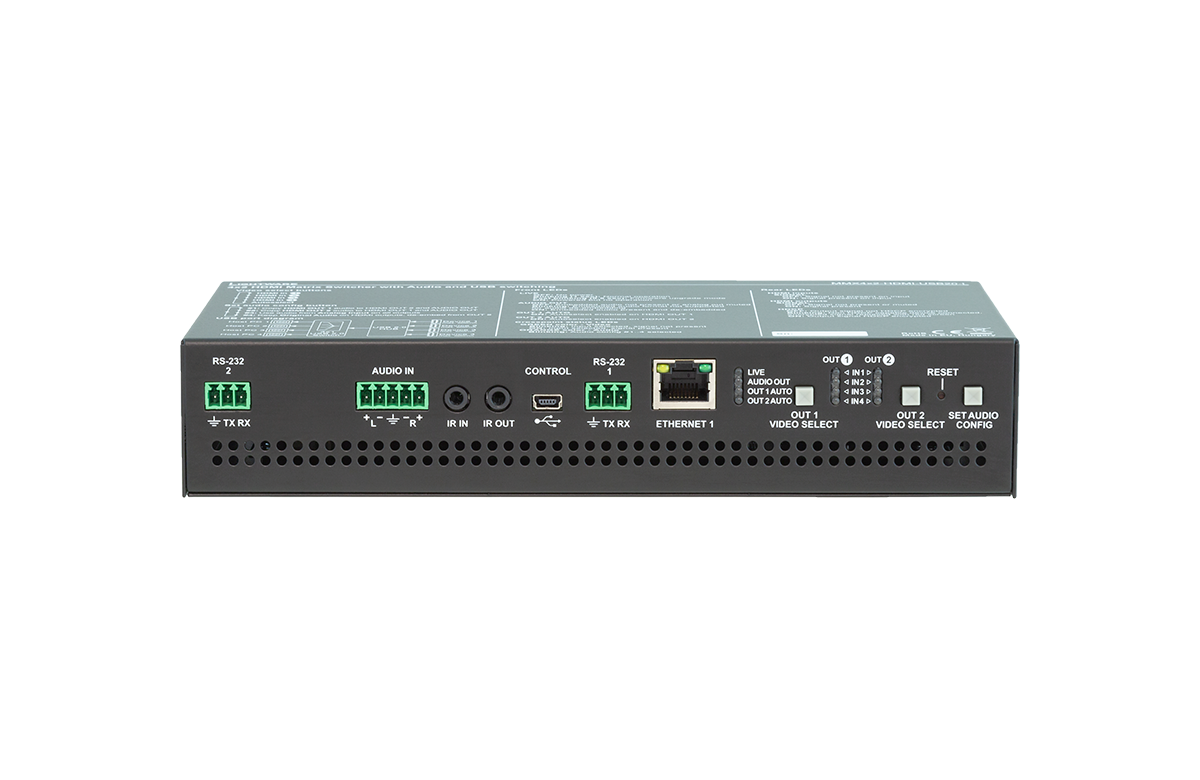

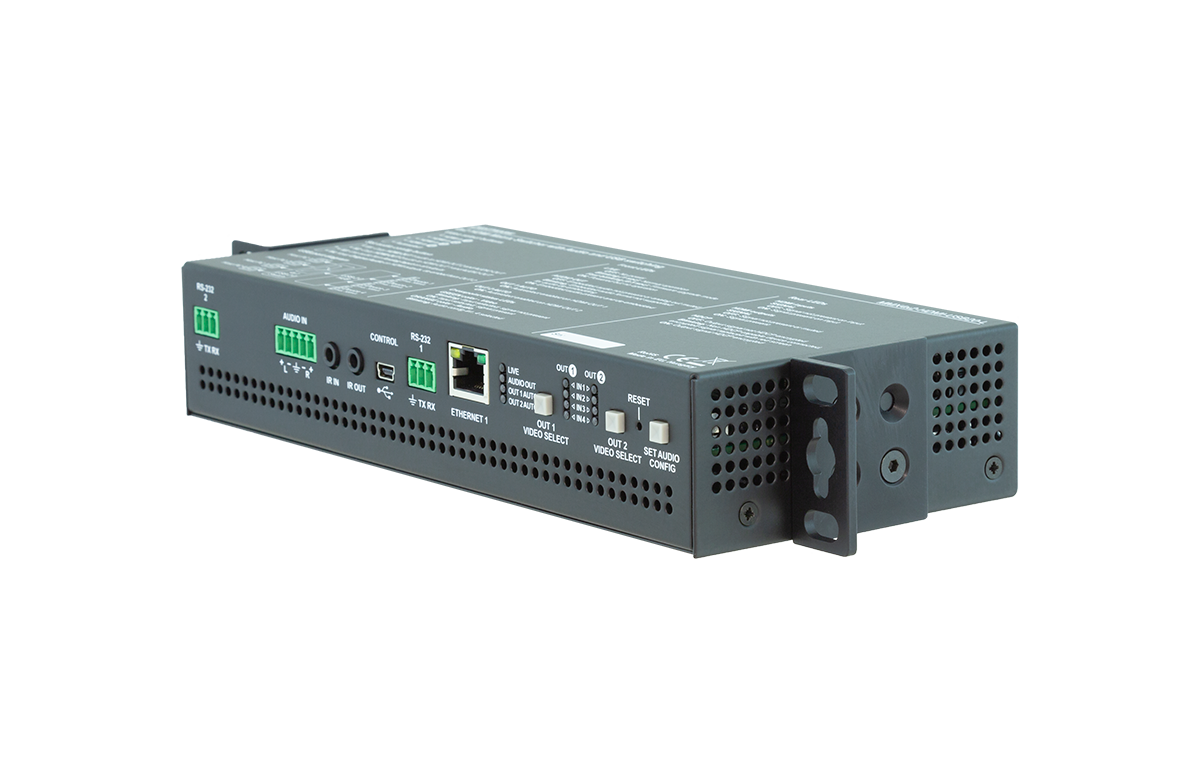

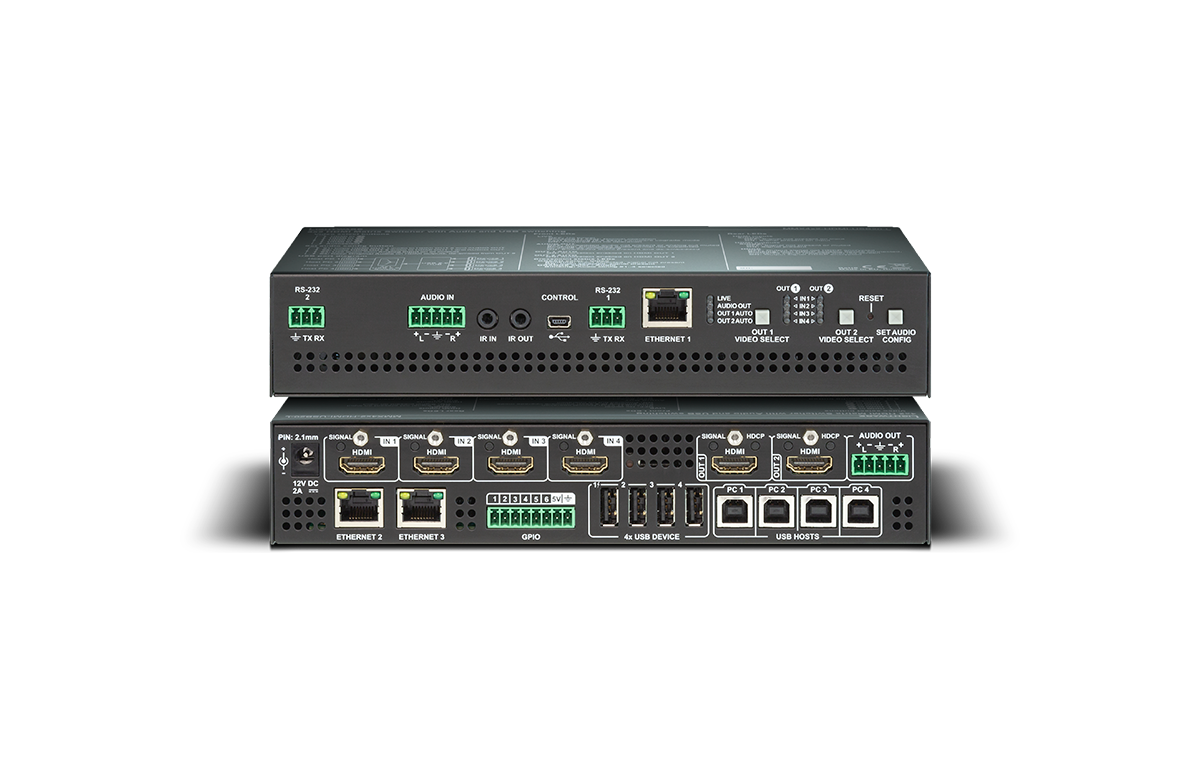

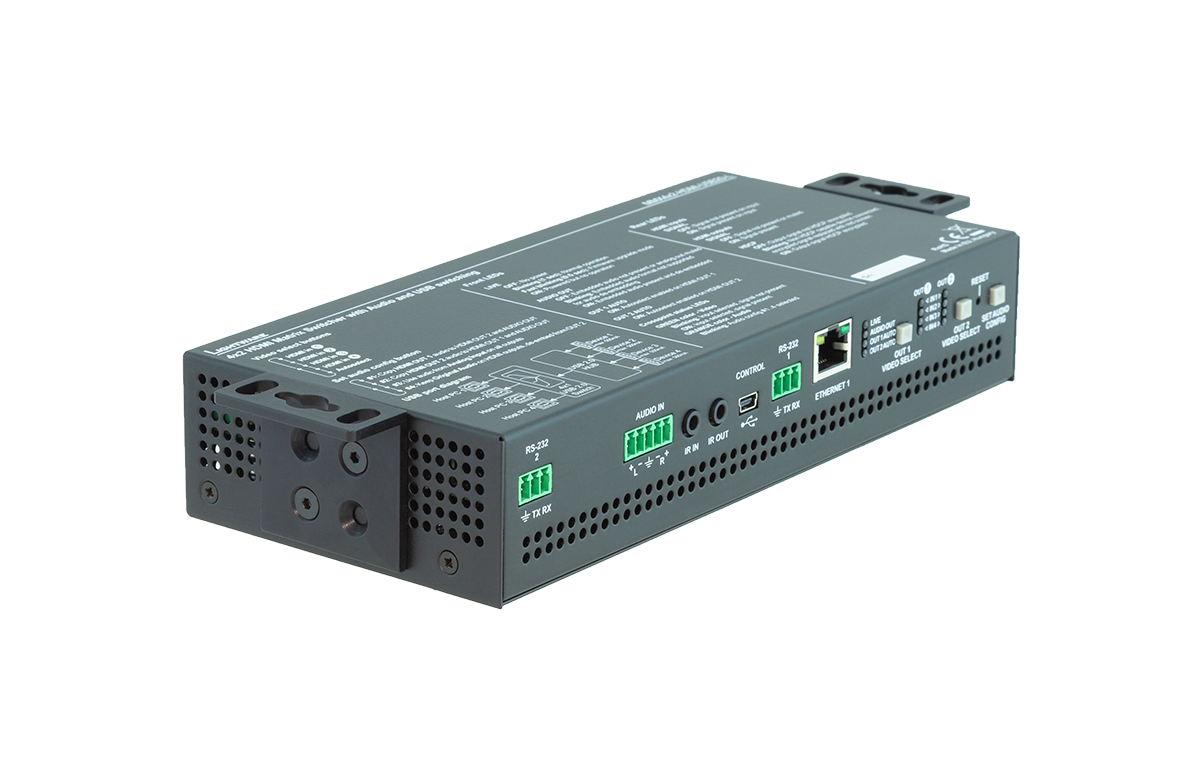

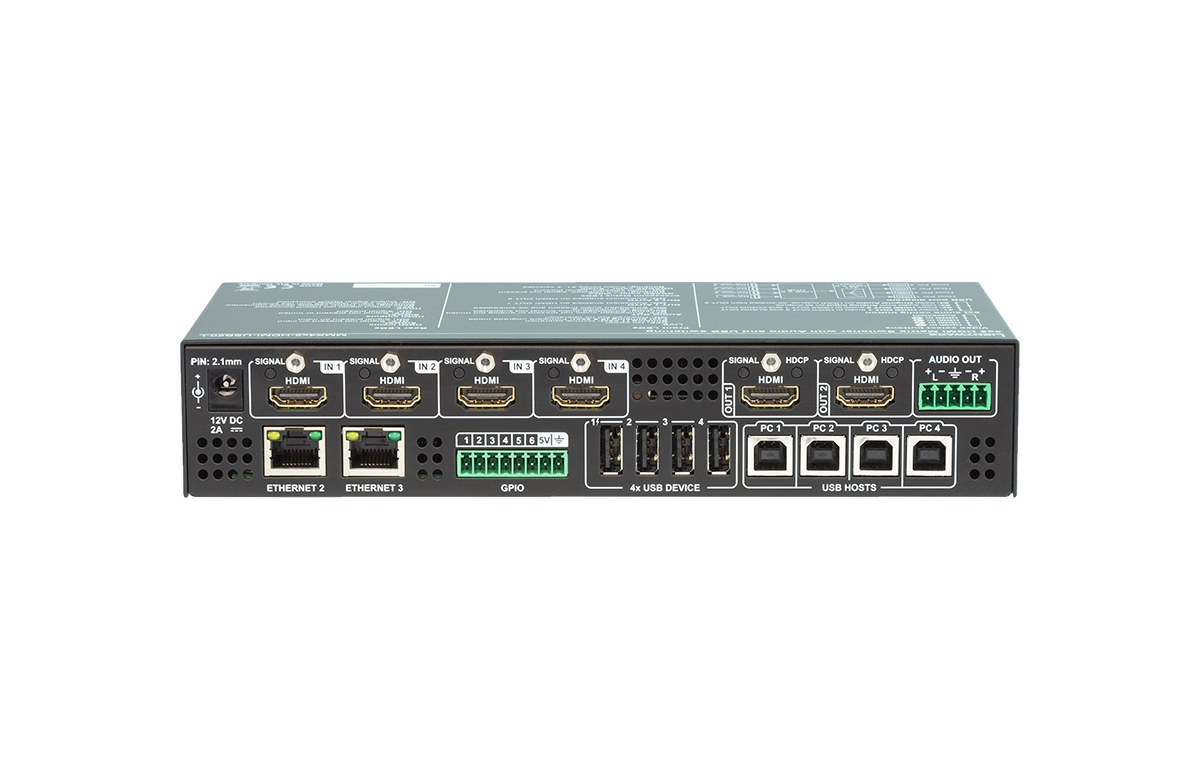

MMX4x2-HDMI-USB20-L is a compact size matrix switcher offering four HDMI inputs and two independent HDMI outputs as well as USB 2.0 connectivity allowing easy switching across four USB peripherals and four hosts.

Features

  • Full USB 2.0 data speed at 480Mbps
  • Multiple USB 2.0 connectivity for any tyupe of USB devices (Camera, speakerphone, touch monitor, USB-HID devices etc...)

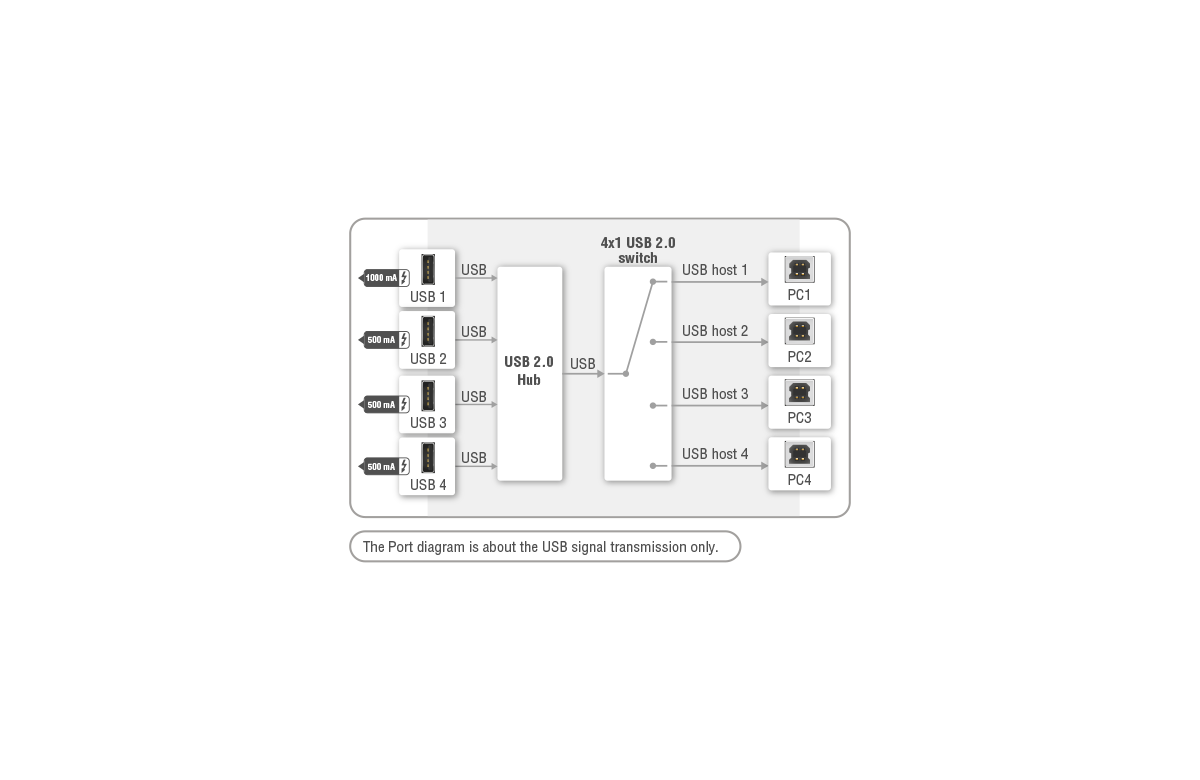

  • Separate USB 2.0 Host switching layer for multiple USB hosts and USB devices
  • Camera powering through 1000 mA output current on USB-A connector (e.g. Huddly camera)
  • Cisco VC room integration compatibility
  • Advanced control feature pack for 3rd party video conference collaboration
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • Built-in Event Manager control automation

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
MMX4x2-HDMI-USB20_v019_compressed.pdf
