Lightware’s HDMI2.0 switcher allows users to switch between in-room computers and BYOD devices with video and audio signals up to 4k@60Hz 4:4:4.

Bring Collaboration Spaces to the Next Level

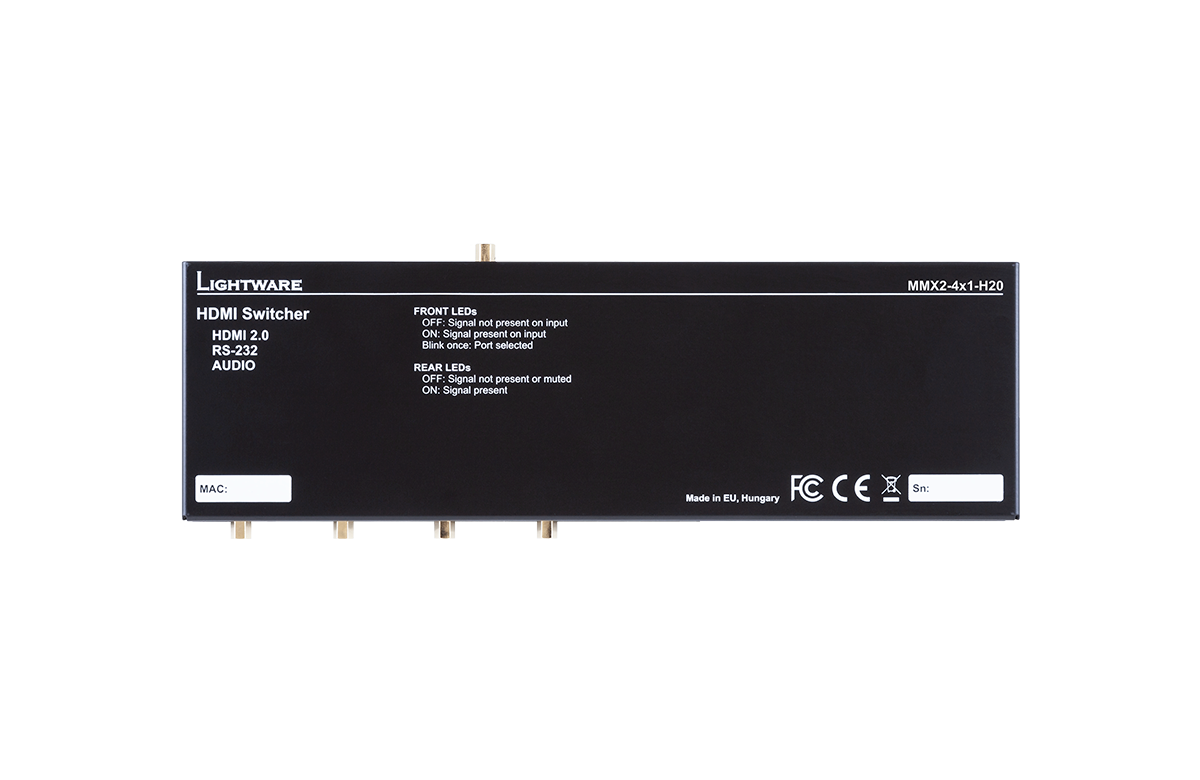

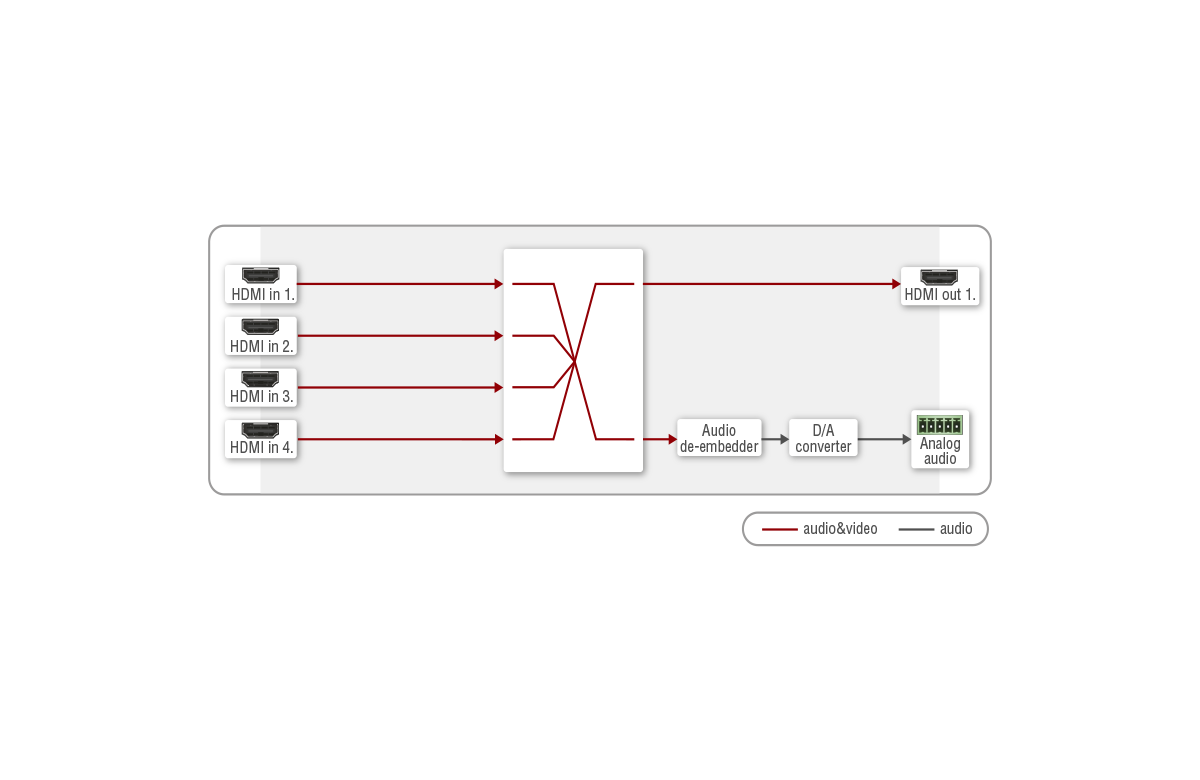

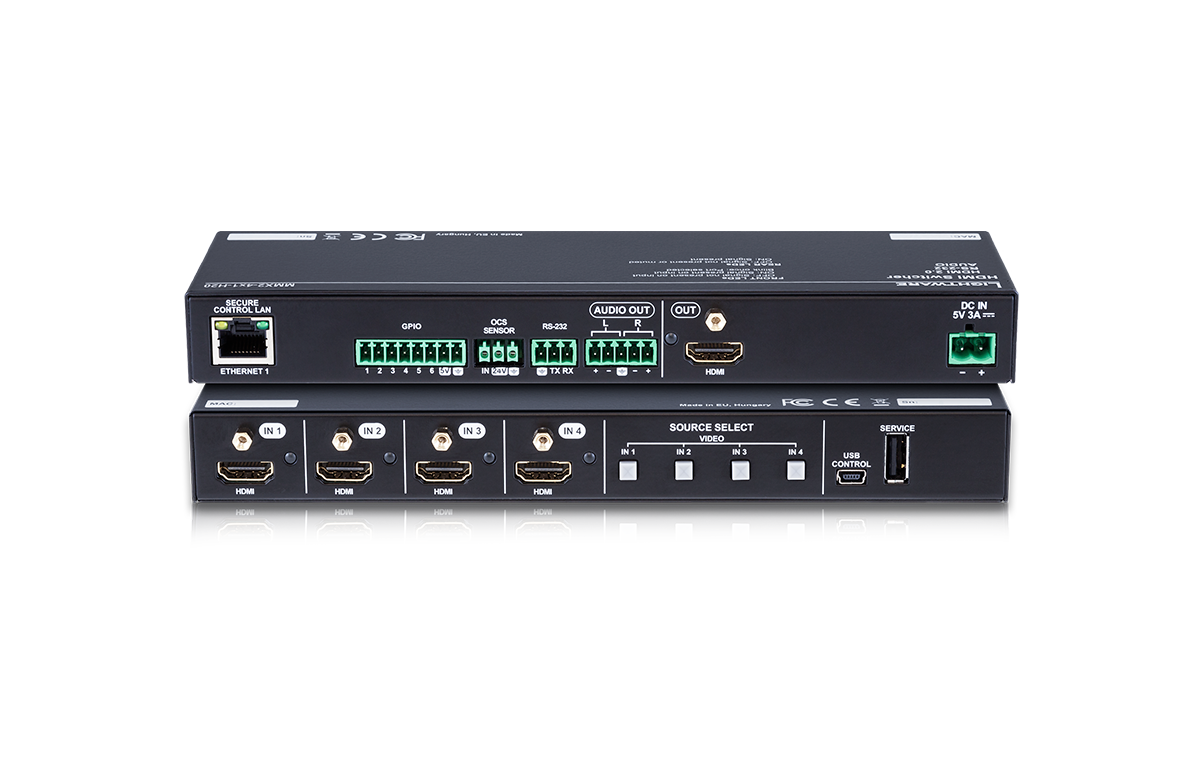

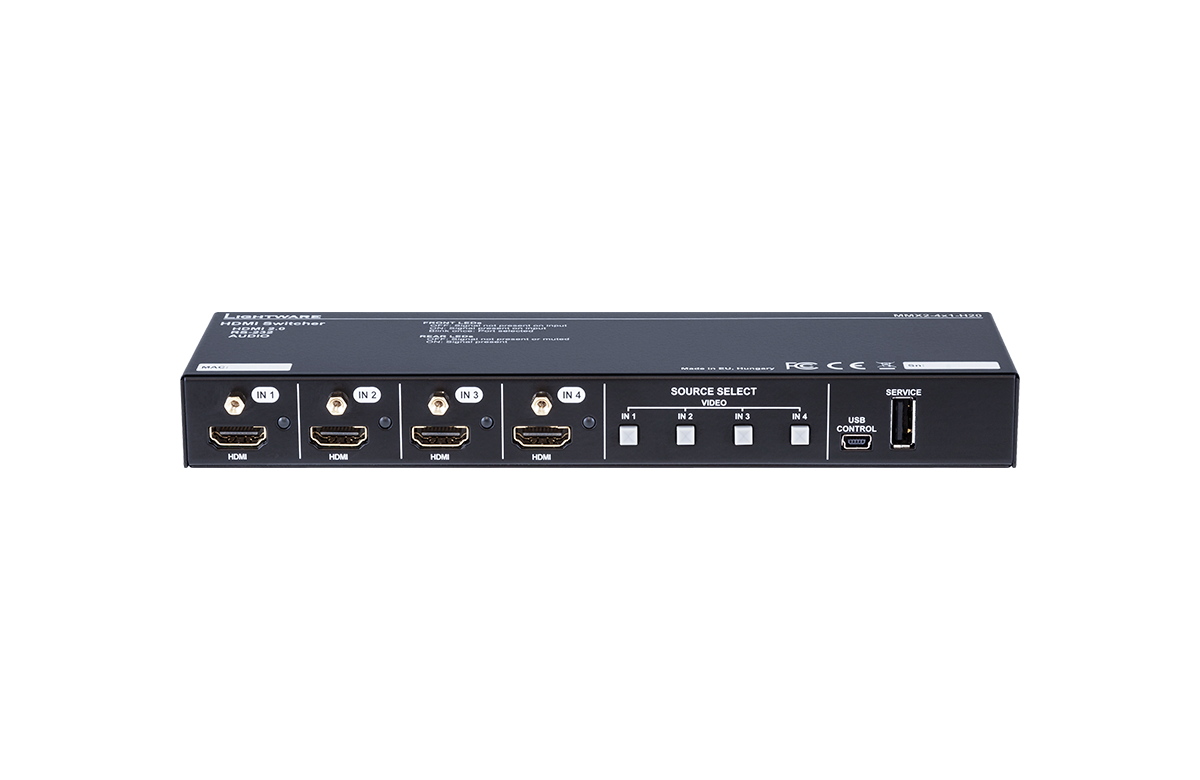

MMX2-4x1-H20 and MMX-4x3-H20 are unique, compact size matrix switchers. They have four HDMI inputs and either one or three independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a balanced 5-pole Phoenix (Euroblock) port. The volume of the audio signal can be modified at the output. The devices are capable to transfer video signal with resolutions up to 4K60 and are HDCP2.2 compliant.

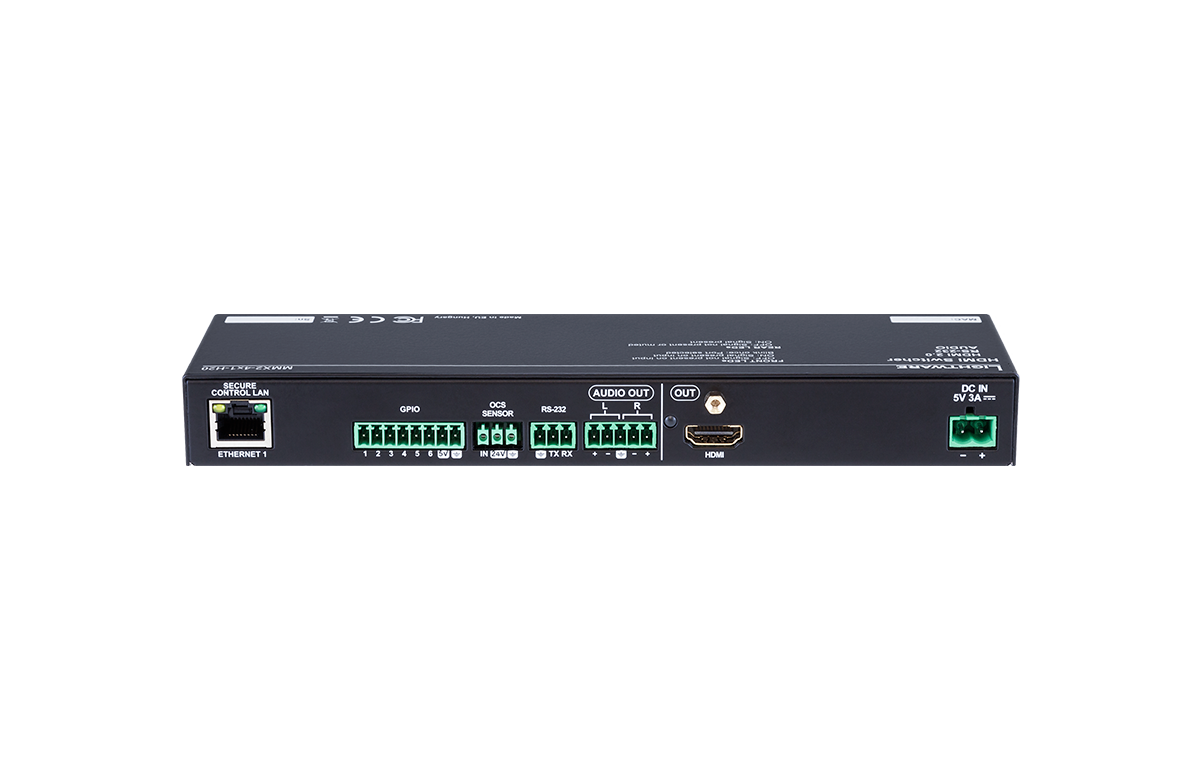

Occupancy sensor input, GPIO and RS-232 ports can be used to integrate other devices into the system. The device is configurable via the Lightware Device Controller software.

Automated room control features are also included through GPIO ports, besides of RS-232 and occupancy sensor connectivity. The switcher also thrives when it comes to audio capabilities, offering analog audio de-embedding feature.

Features

• Occupancy sensor connection with 24V power supply
• Configurable Autoselect on video inputs
• Passive, noiseless cooling
• Device control via RS-232
• Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
