Mini Repeater HDMI 4K - Product - Midwich

The repeater receives and equalizes an HDMI signal and outputs it to another HDMI cable.

Problems to solve:

• The HDMI cable is not long enough;
• The captured image flashes, shows a wrong color or the “unsupported signal” prompts.

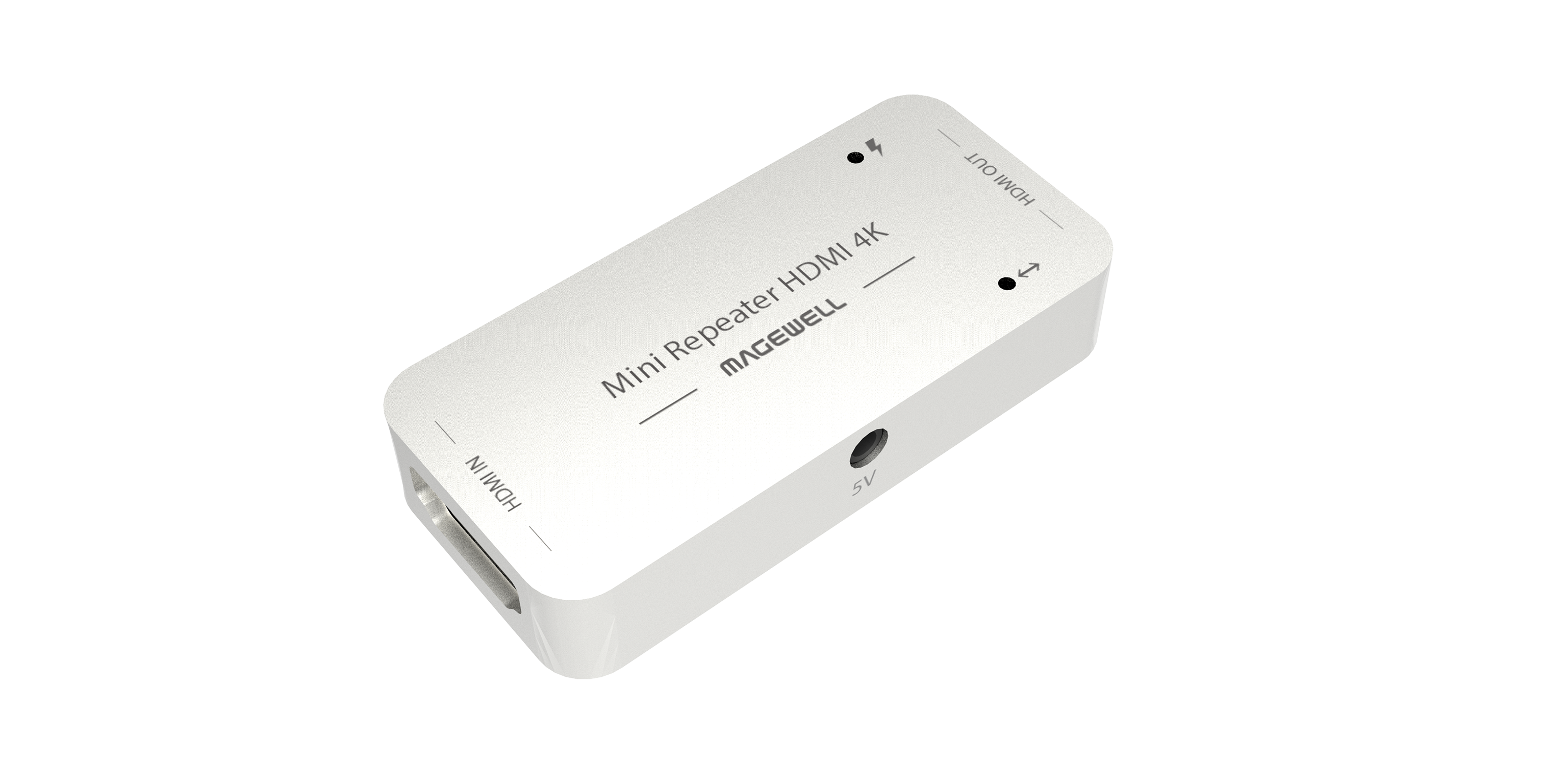

Mini Repeater HDMI 4K

• Enhances signals and extends transmission distance
• Fixes the corrupted signal
• Supports HDMI 2.0

Specifications and Features

Input interface

• HDMI Type A

Input signal

• HDMI/DVI-D

Output interface

• HDMI Type A

• Compatible with HDMI 2.0
• Compatible with DVI standards
• Support 3D, 4K x 2K, HDCP 1.x/2.x
• Support up to 594MHz pixel rate
• Support up to 6.0 Gbps HDMI data rate
• Receive and equalize signals
• Eliminate signal dithering
• Provide DDC buffer

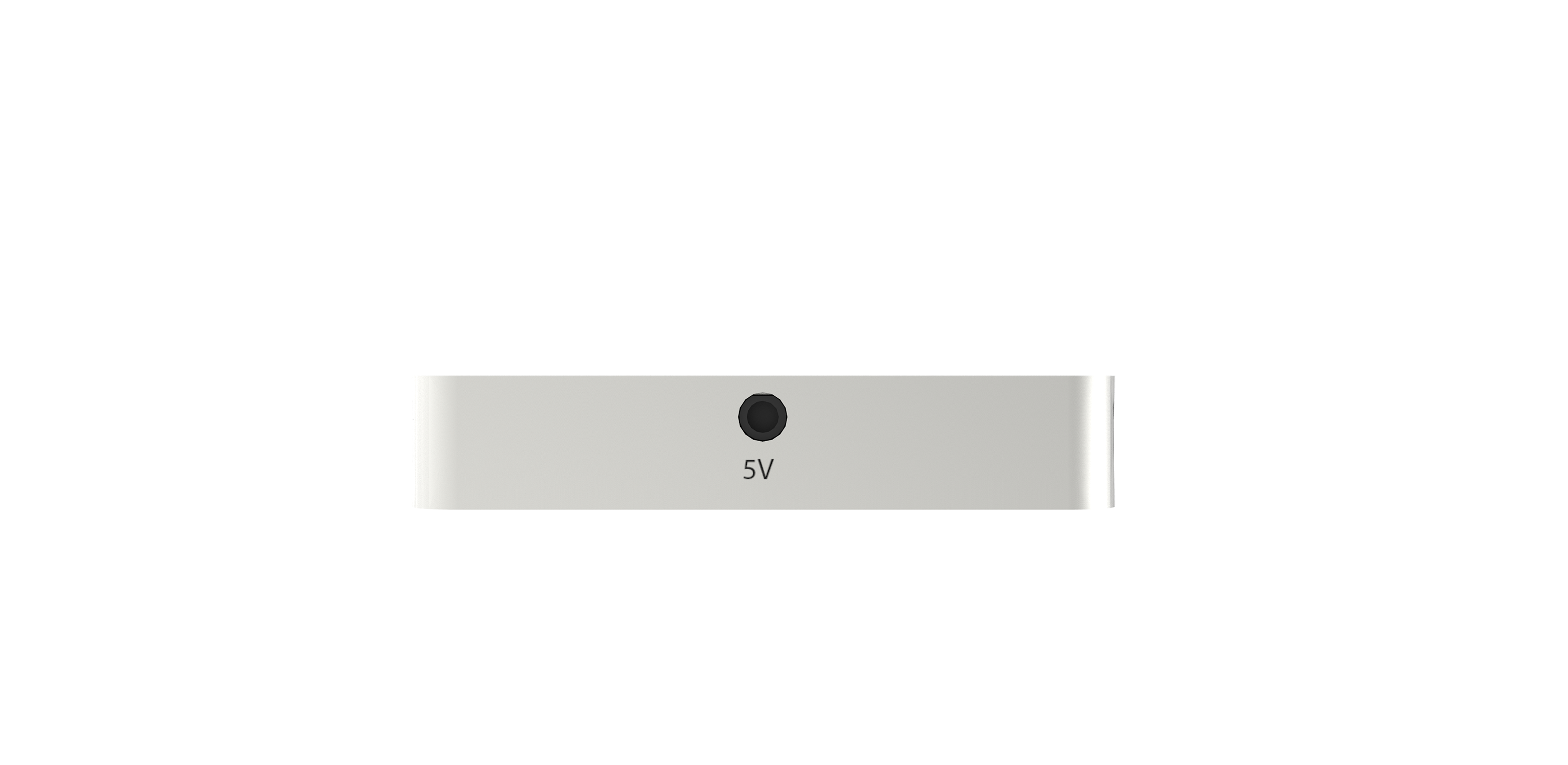

• Powered by HDMI signal or external power supply (5V)
• Onboard LED shows the status of input/output
• Power: +5V
• Size: 58.22 mm x 27.26mm x 10.80 mm
• Accessory: USB to 5V cable



MFG PART #43010
