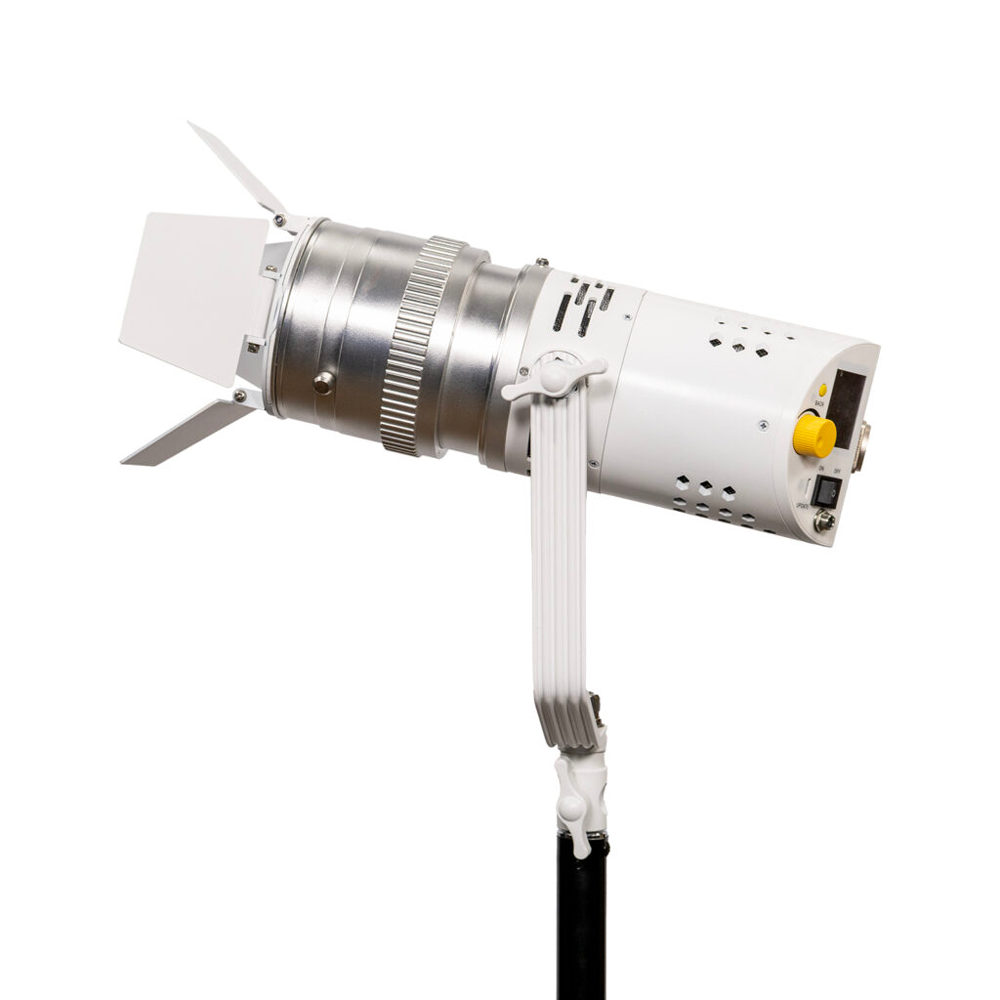

The Ikan LBF60Z-POE-WH is a PoE-powered Fresnel light designed for professional studio, broadcast, podcast studios, and stage applications. Building on the foundation of its predecessor, it utilizes a single Ethernet (RJ45) cable for both power and DMX control, thanks to PoE++ compatibility. The light features a manual zoom Fresnel lens, allowing users to smoothly adjust the beam angle anywhere between 30 to 60 degrees, providing greater flexibility to shape and control light output. Outfitted with high-CRI (97) LEDs, it delivers exceptional color accuracy across a wide color temperature range from 2700K to 6500K. The robust aluminum yoke with tension knobs ensures secure positioning, while the rear control panel with an LED display allows for precise adjustment of brightness, color temperature, and DMX settings. Seamless integration with Q-SYS systems is supported through the Q-SYS Designer Plugin, enhancing workflow efficiency. The LBF60Z-POE combines power, versatility, and networked control into a compact, professional lighting solution. (Patent Pending)

• 60W PoE++ Light
• Art-Net & sACN DMX-Over-IP
• Q-SYS Control Compatible
• 30 to 60 Degree Beam Angle
• 97 CRI
• Bi-Color Adjustable 2700K-6500K
• Consistent Light Across All Color Temperatures
• Low Profile Yoke
• Combo Pin
• If using Q-SYS plugin 1.1 please update to firmware WebGUI 1.2

Power Over Ethernet PoE++

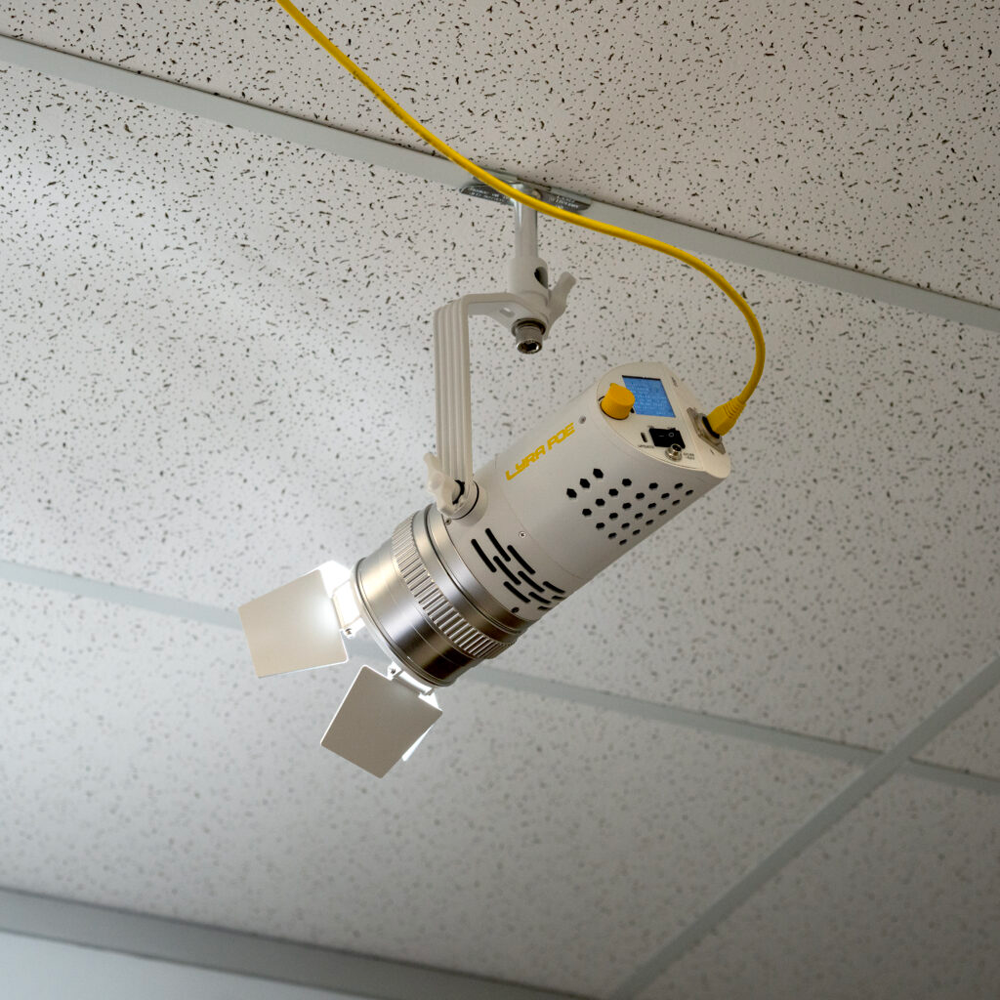

The LBF60Z-POE-WH is powered using a single Ethernet cable (Cat6 RJ45 24AWG or better). This eliminates the necessity for additional wiring or power outlets, saving both time and reducing installation costs on obtaining permits or hiring electricians to install new ceiling outlets. The LBF60Z-POE supports IEEE 802.3bt Type 3 PoE++, ensuring efficient power delivery over the network.

(IEEE 802.3bt Type 3 switch is required)

ArtNet and sACN Compatibility

The LBF60Z-POE supports both ArtNet and sACN DMX protocols. A single RJ45 cable can be used for both power and DMX. This versatility empowers users to integrate the light seamlessly into their preferred DMX control systems.

Q-SYS Designer Plugin Integration

Easily integrate Ikan Lyra PoE Lights into your Q-SYS ecosystem with the Q-SYS plugin, available in the Q-SYS Designer Asset Manager. This plugin allows users to control light intensity and color temperature for up to 256 lights per universe directly within Q-SYS Designer. Designed for streamlined workflows in spaces like conference rooms, the plugin eliminates the need for specialized lighting knowledge. With the press of a button, all lights can be set to optimal, pre-configured settings, ensuring a seamless and user-friendly experience for any environment. If using plugin version 1.1 please update light’s firmware to WebGUI 1.2 or higher.
