NovaStar KU20 All-in-One Controller - KU20

List $1,029.00
MAP $1,029.00

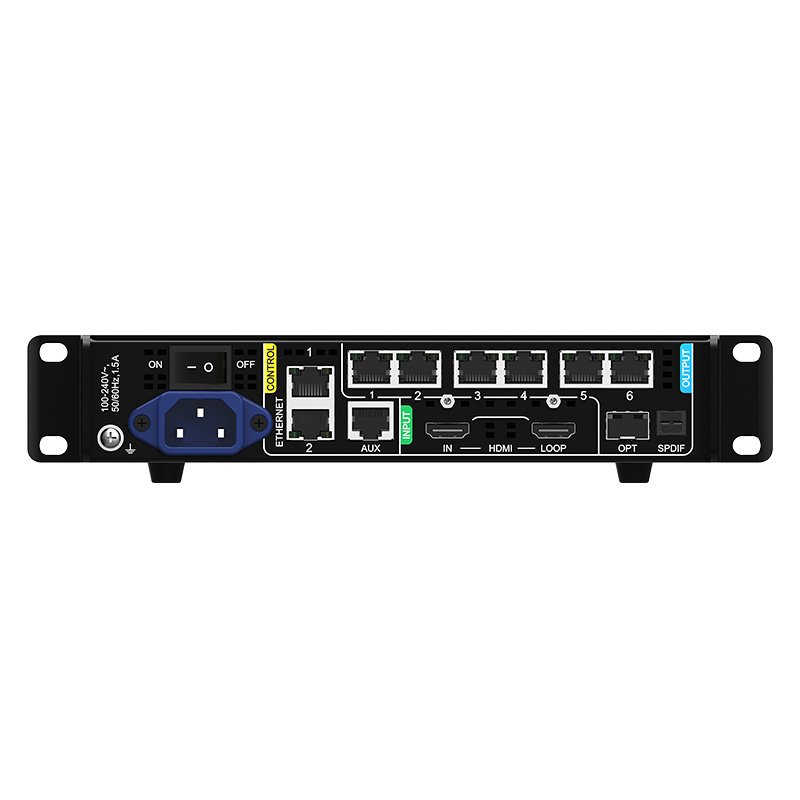

NovaStar KU20, part of the COEX series, is an LED display controller with 6 Ethernet ports. This controller offers 1x HDMI input, 6x Ethernet outputs and 1x optical output. It can also work with NovaStar’s VMP (Vision Management Platform) to provide a better operation and control experience.




 KU20
 Loading Capacity

 3.9 Million
 Modular Design  x
 Input Card Qty  N/A
 Output Card Qty  N/A
 Chassis Height  1U
INPUTS
 Input Interface

 1×HDMI 1.3
 (IN+LOOP)
 Input Bit Depth  8bit
 10bit (Custom)
 Max. Input Width  3,840
 Max. Input Height  2,560
OUTPUTS
 Output Interface

 6×RJ45

 1×10G OPT
 Layers  1
 Max. Output Width  4,096
 Max. Output Height  4,096
GENLOCK
 Genlock Type  x

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin CN
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
KU20-LED-DIsplay-Controller-Specifications-V1.5.0.pdf
