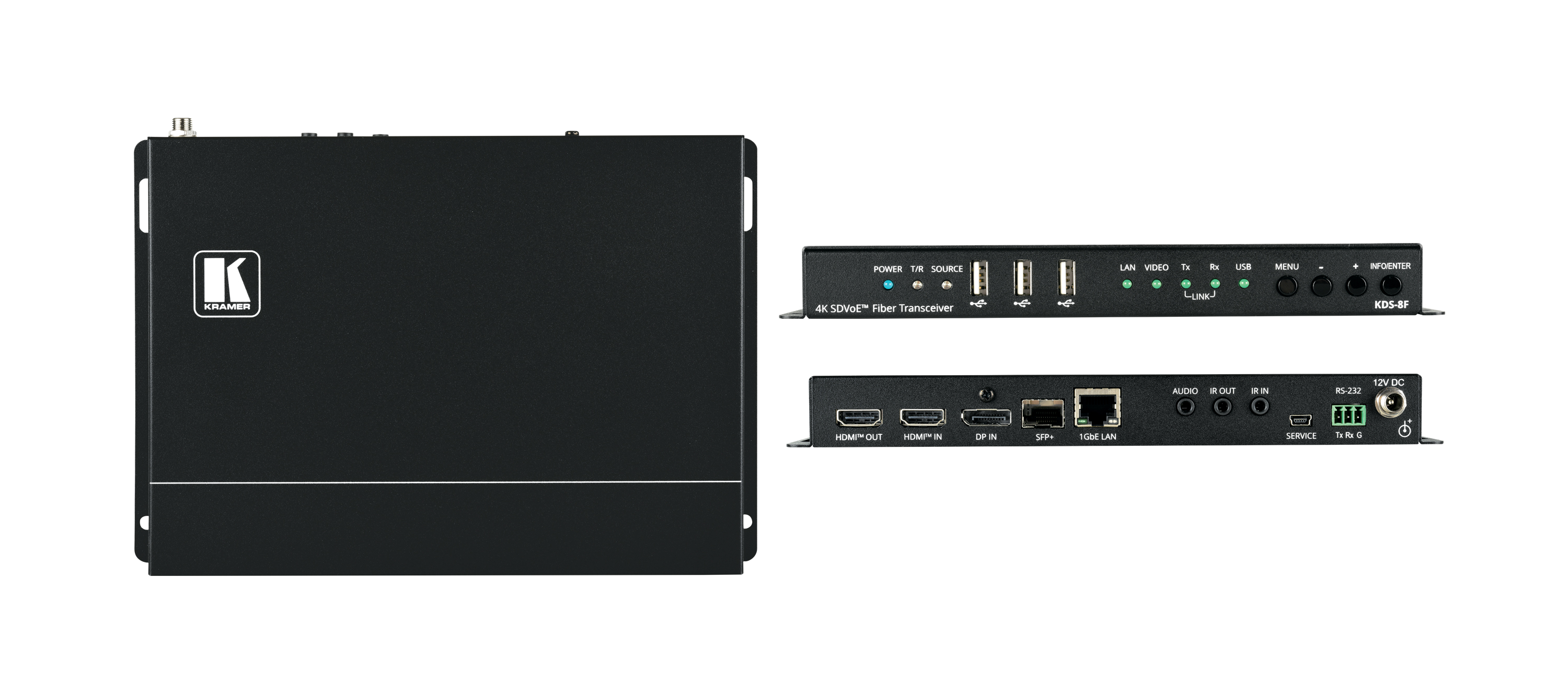

KDS-8F 4K SDVoE Fiber Transceiver - Product - Midwich

KDS−8F is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over single−mode and multi−mode optical fiber. KDS−8F can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI or DisplayPort input along with IR, RS−232, analog audio and USB, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.

•  High–Performance Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.
•  Maximum Compatibility — Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.
•  HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support.
•  High–Speed 10G Network Switch — Managed switch provides multicast, jumbo frames, IGMP snooping and fast leave.
•  Analog Audio Embedding — Provides an unbalanced analog audio port for embedding audio into the streaming signal.
•  Bi–directional USB over IP.
•  Bi–directional IR and RS–232 over IP — Control an IR or serial device located on the decoder side from the encoder and vice versa.
•  Video Wall Support.
•  Multiview Support.
•  Easy, Cost–Effective Maintenance — LED indicators for main power, Tx/Rx mode setting, HDMI/ DisplayPort video source detection, USB connection and Tx and Rx transmission enable easy local maintenance and troubleshooting.
•  Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.
