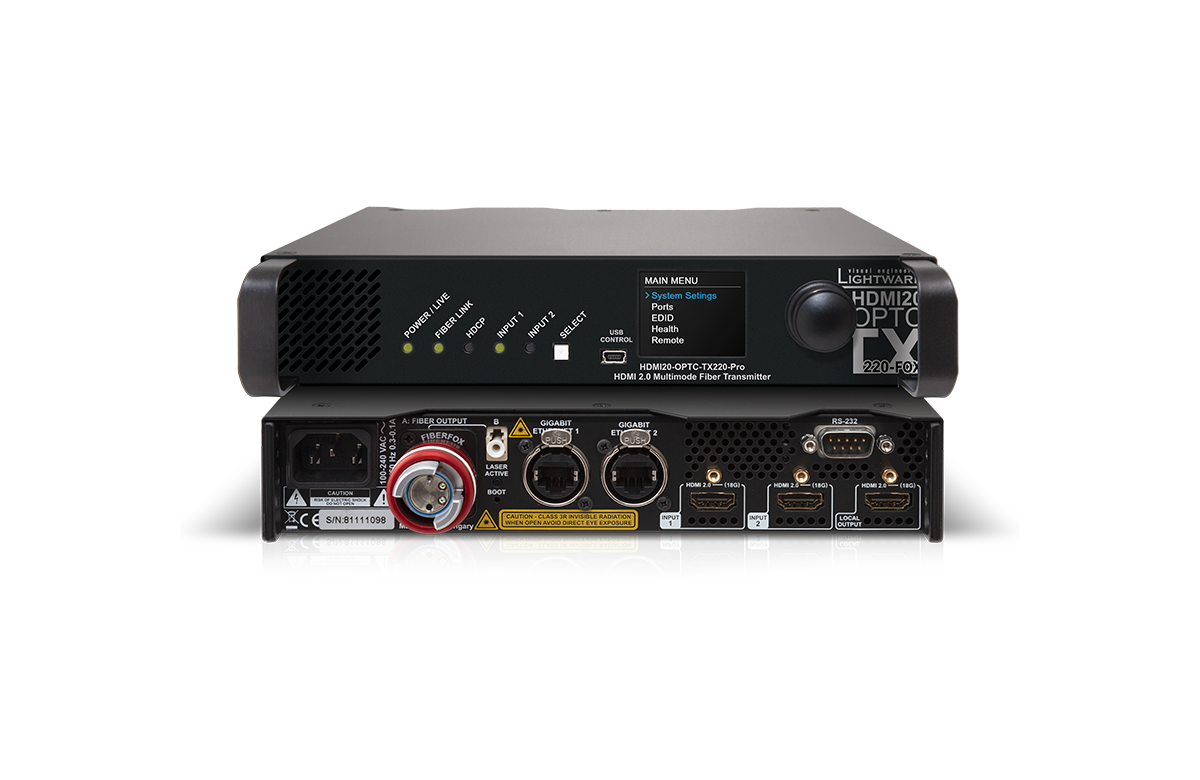

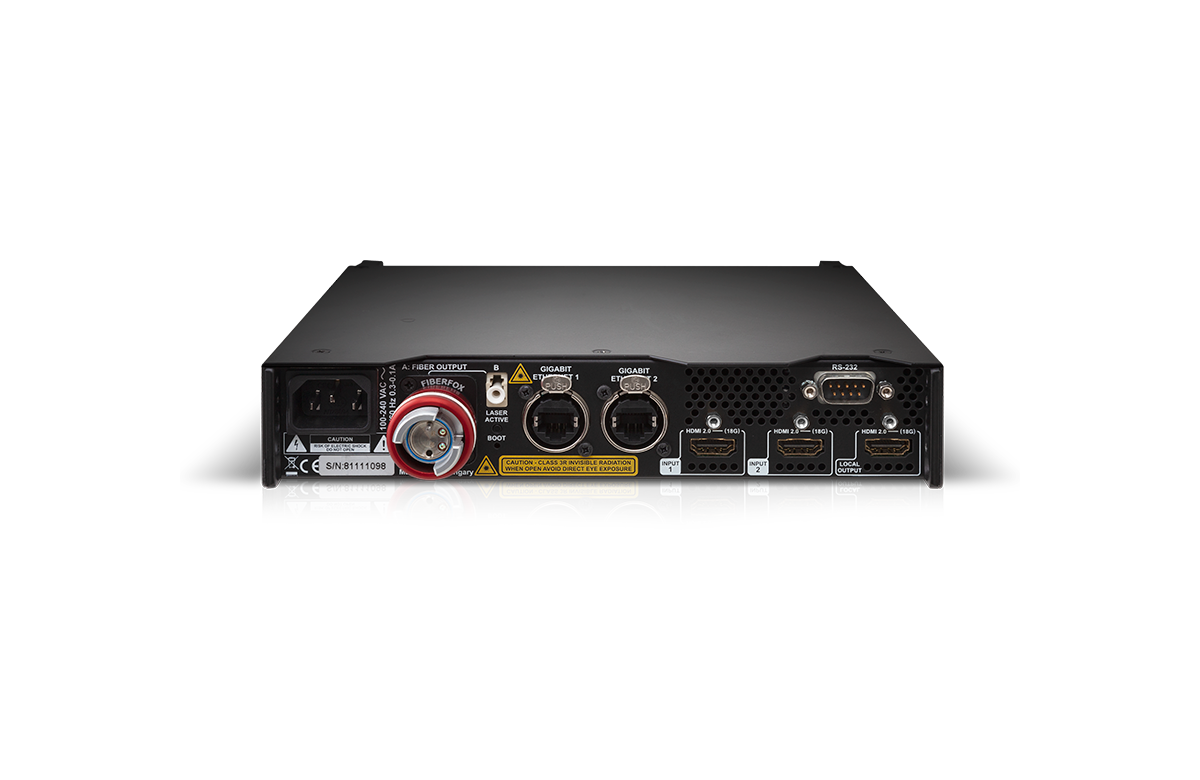

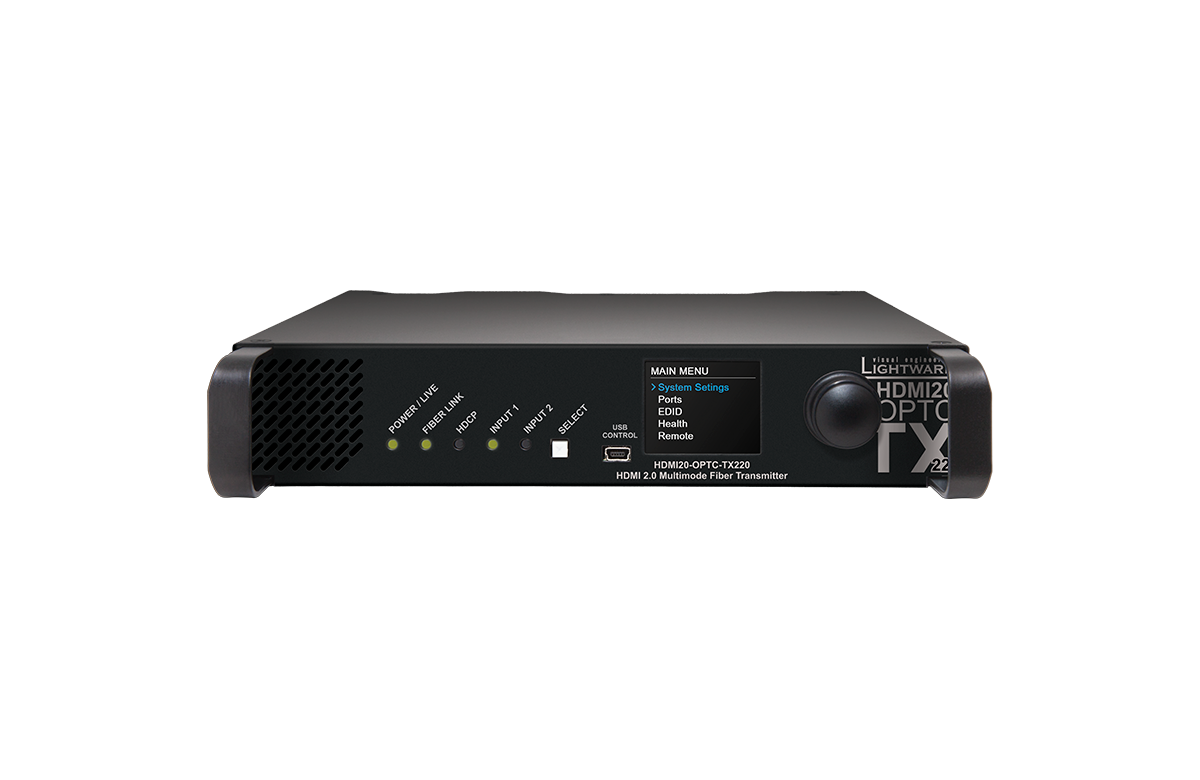

Lightware HDMI20-OPTC-TX220-FOX Designed for rental and professional users, 1/2 rack width Pro series HDMI2.0 to fiber transmitter, 700m extension. Full 4K HDMI 2.0 and HDCP 2.2 compliant, 4K@60Hz with RGB 4:4:4 colorspace, 18 Gbit/sec bandwidth. Local monitor output, LCD menu, Advanced EDID Management, Fiberfox connector, breakout LC connector for Neutrik B channel, built-in power supply. - 91550001

List $7,573.50

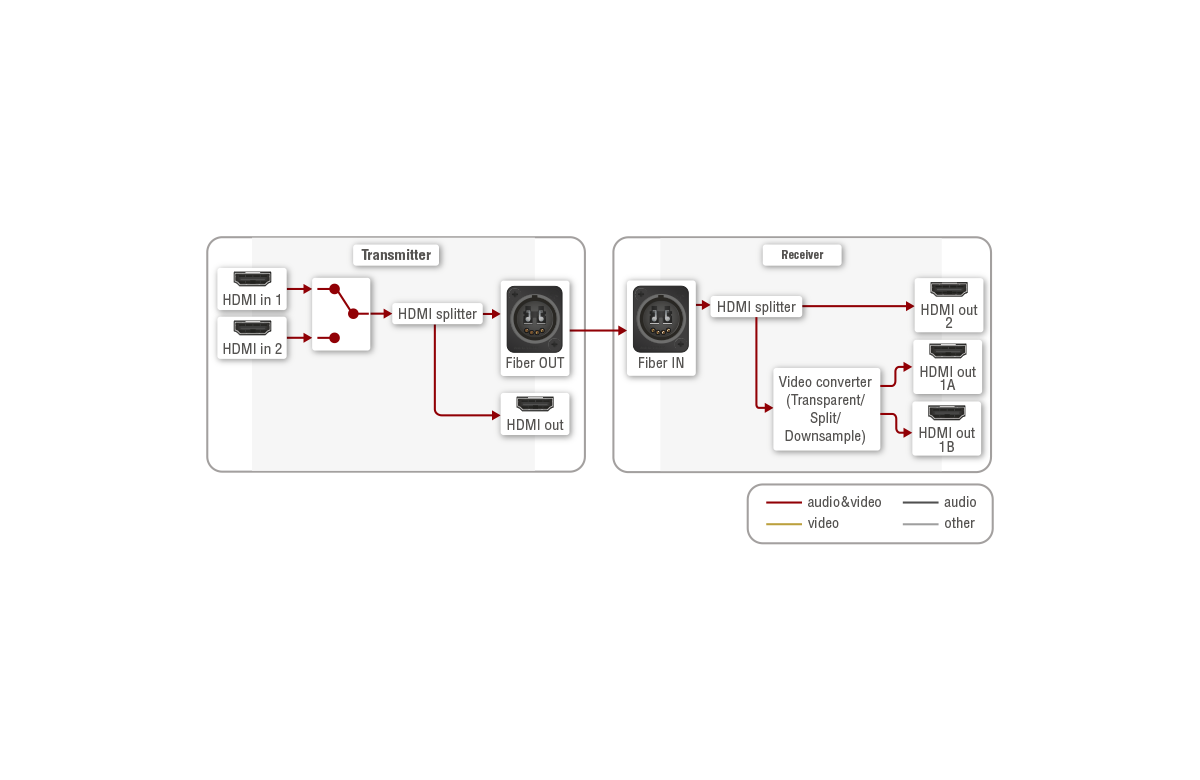

The HDMI20-OPTC-TX/RX220-Fox is a HDMI 2.0 compatible extender pair with a Fiberfox optical connector for video, RS-232 and Gigabit Ethernet signals, supporting uncompressed 4K UHD resolution at 60Hz 4:4:4. Video and Ethernet signals are transferred over a single optical line.

Features

  • Extension distance up to 700 meters (with OM3/OM4 fiber, 4096x2160p60)
  • Single Fiber Technology
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096x2160@60Hz 4:4:4 maximum resolution (600MHz)
  • Advanced EDID Management
  • Device control via Ethernet (TCP/IP) RS-232 and USB
  • Built-in universal power supply

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
HDMI20-OPTC_Series_Product_Brief_2021.pdf

Accessories
