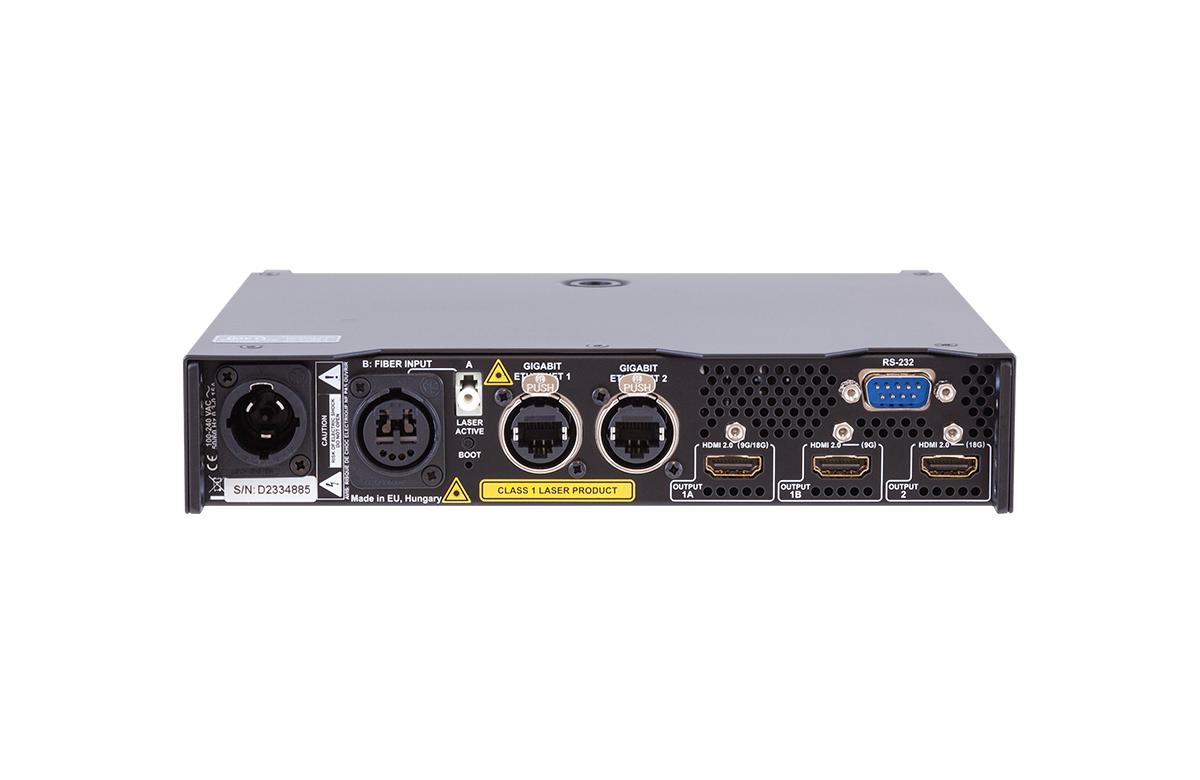

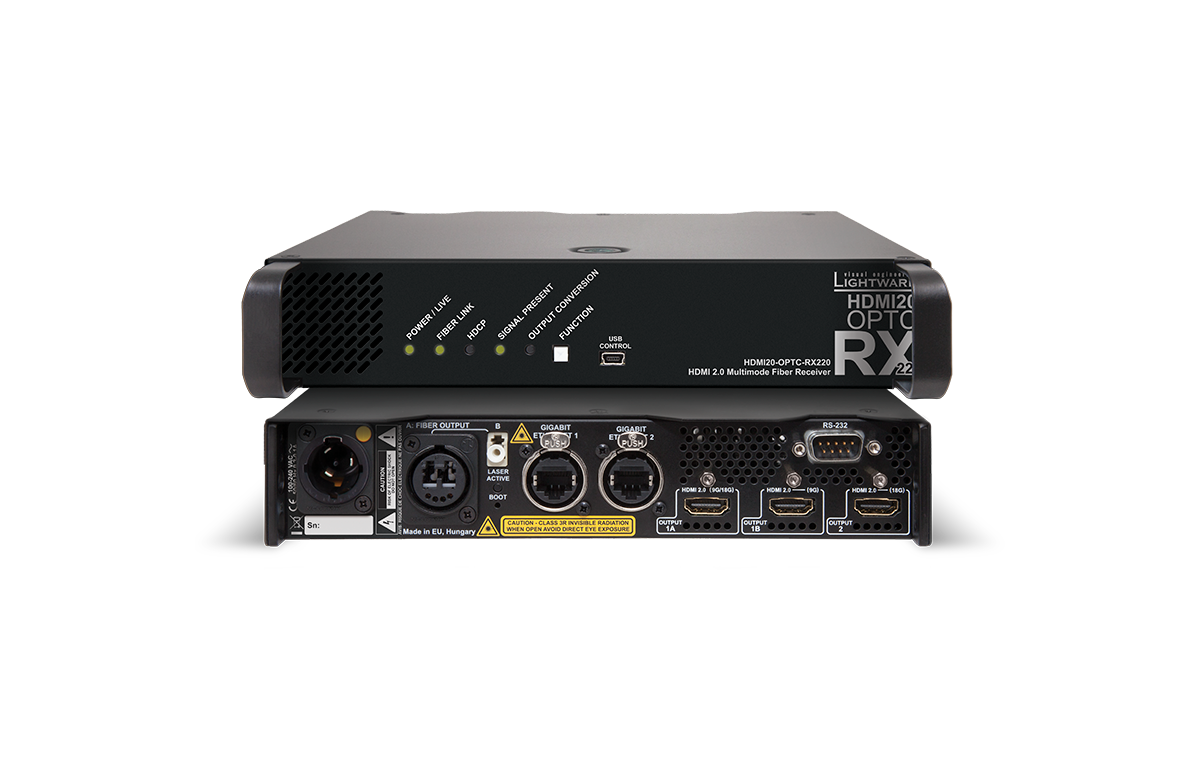

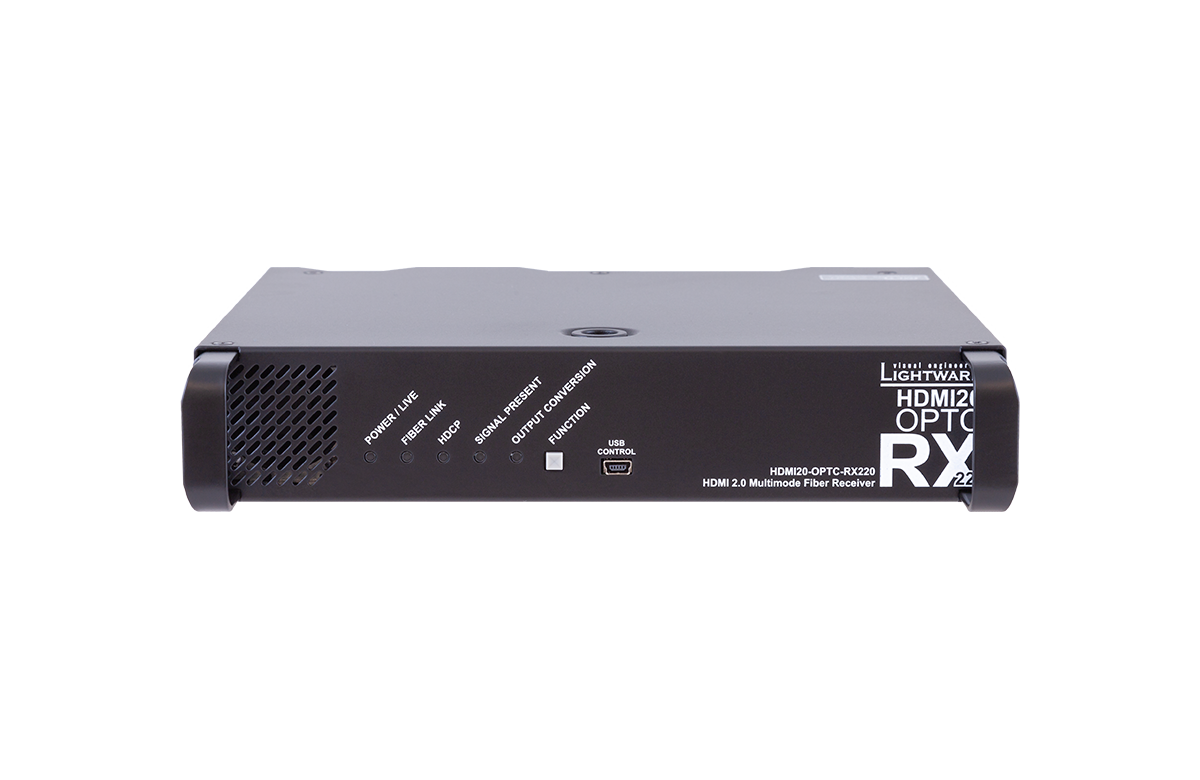

Lightware HDMI20-OPTC-RX220-PCN Designed for rental and professional users, 1/2 rack width Pro series fiber to HDMI2.0 receiver, 700m extension. Full 4K HDMI 2.0 and HDCP 2.2 compliant, 4K@60Hz with RGB 4:4:4 colorspace, 18 Gbit/sec bandwidth. Neutrik fiber connector compatible with LC duplex fiber connectors, breakout LC connector for Neutrik B channel, built-in power supply with Neutrik PowerCON - 91550004

List $7,573.50

High-Performance 4K UHD Video and Signal Transmission

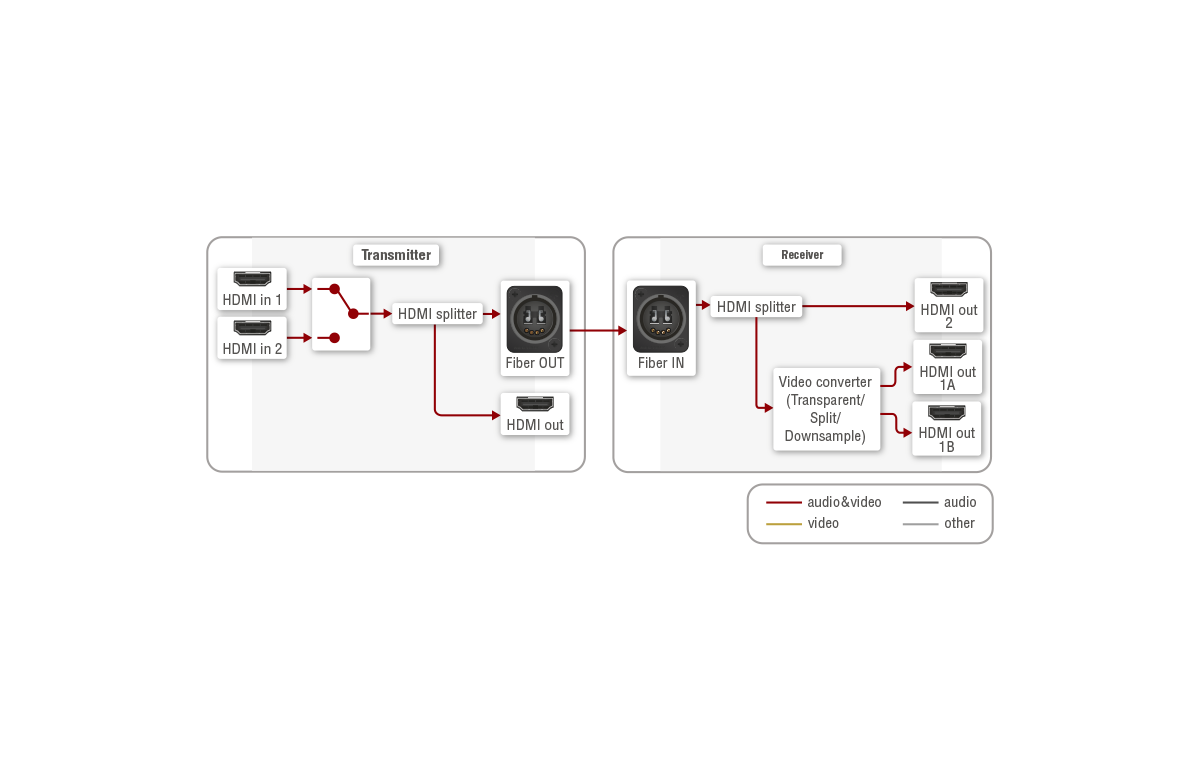

The HDMI20-OPTC-TX/RX220-PCN is a HDMI 2.0 compatible, HDCP 2.2 compliant extender pair for video, RS-232 and Gigabit Ethernet signals, supporting uncompressed 4K UHD resolution at 60Hz 4:4:4. This extender pair is particularly recommended for rental and staging applications, 4K live events, and for future-proof operation centers. The extender can transmit HDMI 2.0 signals with 18Gbps over one multimode fiber to a distance of up to 700 meters. Video and Ethernet signals are transferred over a single optical line.

Features

  • Extension distance up to 700 meters (with OM3/OM4 fiber, 4096x2160p60)
  • Single Fiber Technology
  • Uncompressed video up to 18 Gbps datarate (600MHz pixel clock)
  • 4096x2160@60Hz 4:4:4 maximum resolution (600MHz)
  • Device control via Ethernet (TCP/IP) RS-232 and USB
  • Built-in universal power supply

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
HDMI20-OPTC_Series_Product_Brief_2021.pdf
